MAX3750

NOT RECOMMENDED FOR NEW DESIGNS

+3.3V, 2.125Gbps/1.0625Gbps Fibre-Channel Port Bypass ICs

Provide > 1Vp-p Outputs While Consuming Only 180mW Power

Viewing:

Overview

  • Single +3.3V Supply
  • Low Jitter: 10ps
  • Low Power Consumption
    • 190mW (MAX3750)
    • 180mW (MAX3751)
  • Large Output Signal Swing: >1000mVp-p
  • Mismatch Tolerant Output Driver Stage
  • 150Ω Differential On-Chip Termination on All Inputs
  • 150Ω On-Chip Back Termination on All Output Ports

The MAX3750/MAX3751 are +3.3V, Fibre Channel port bypass ICs that include a high-speed multiplexer and output buffer stage for hot swapping a storage device. These devices are optimized for use in a Fibre Channel arbitrated loop topology.

The MAX3750 has a 2.125Gbps data rate, while the MAX3751's data rate is 1.0625Gbps. Total power consumption (including output currents) is low: just 190mW for the MAX3750 and 180mW for the MAX3751. Low 10ps jitter makes these devices ideal for cascaded topologies. The output driver circuitry is tolerant of load mismatches commonly caused by board vias and inductive connectors. On-chip termination reduces external part count and simplifies board layout.

Applications

  • 1.0625Gbps Fibre Channel Arbitrated Loop
  • 2.125Gbps Fibre Channel Arbitrated Loop
  • Mass Storage Systems
  • RAID/JBOD Applications

MAX3750
+3.3V, 2.125Gbps/1.0625Gbps Fibre-Channel Port Bypass ICs

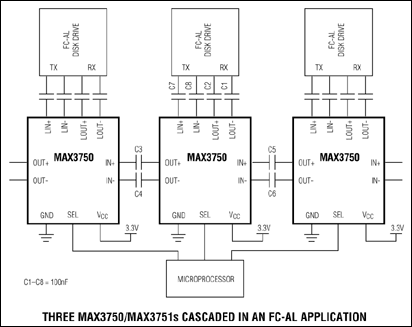

MAX3750, MAX3751: Typical Application Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Tools & Simulations


Evaluation Kits

MAX3750EVKIT

Evaluation Kit for the MAX3750, MAX3751

Features and Benefits

  • Interfaces with 50Ω Systems
  • Fully Assembled and Tested
  • Calibration Circuit for Accurate Jitter Measurement

Product Details

The MAX3750 evaluation kit (EV kit) simplifies evaluation of the MAX3750/MAX3751 port bypass ICs. It provides impedance transformation networks that allow interface with standard 50Ω test equipment.

This fully assembled and tested EV kit includes a jumper to facilitate signal flow selection, and a calibration circuit that allows accurate jitter measurement.

Applications

  • 1.0625Gbps Fibre Channel Arbitrated Loop
  • 2.125Gbps Fibre Channel Arbitrated Loop
  • Mass Storage Systems
  • RAID/JBOD Applications

MAX3750EVKIT
Evaluation Kit for the MAX3750, MAX3751
