MAX3736

3.2Gbps, Low-Power, Compact, SFP Laser Driver

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 2
1ku List Price Starting From $7.39
Features
  • Fully Compatible with SFP and SFF-8472 Specifications
  • Programmable Modulation Current from 5mA to 60mA (DC-Coupled)
  • Programmable Modulation Current from 5mA to 85mA (AC-Coupled)
  • Programmable Bias Current from 1mA to 100mA
  • 56ps Edge Transition Times
  • 22mA (typ) Power-Supply Current
  • Multirate Operation Up to 3.2Gbps
  • On-Chip Pullup Resistor for DIS
  • 16-Pin, 3mm x 3mm Thin QFN Package
Additional Details
show more Icon

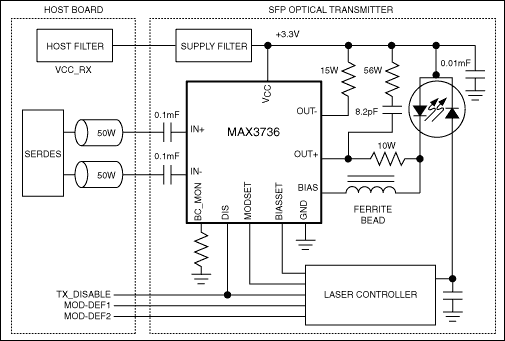

The MAX3736 is a compact, +3.3V multirate laser driver for SFP/SFF applications up to 3.2Gbps. The device accepts differential data and provides bias and modulation currents for driving a laser. DC-coupling to the laser allows for multirate applications, and reduces the number of external components.

The wide 5mA to 60mA (85mA AC-coupled) modulation current range and 1mA to 100mA bias current make the MAX3736 ideal for driving FP/DFB laser diodes in fiber optic modules. The laser current setting can be controlled by a current DAC, a voltage DAC, or a resistor. Very low power dissipation, small package size, and reduced component count, make this part an ideal solution for SFP-module applications.

The MAX3736 is available in a small 3mm x 3mm, 16-pin thin QFN package. It operates over a -40° to +85° temperature range.

Applications

  • 10G Ethernet LX4 Modules
  • 1G/2G Fibre Channel SFF/SFP Transceiver Modules
  • Gigabit Ethernet SFF/SFP Transceiver Modules
  • Multirate OC-3 to OC-48 FEC SFF/SFP Transceiver Modules
Part Models 2
1ku List Price Starting From $7.39

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX3736ETE+
  • HTML
  • HTML
MAX3736ETE+T
  • HTML
  • HTML
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX3736EVKIT

Evaluation Kit for the MAX3736

zoom

MAX3736EVKIT

Evaluation Kit for the MAX3736

Evaluation Kit for the MAX3736

Features and Benefits

  • Single +3.3V Power-Supply Operation
  • AC-Coupling Provided On-Board
  • Allows Optical Evaluation
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX3736 evaluation kit (EV kit) is an assembled demonstration board that provides complete optical evaluation of the MAX3736 3.3V multirate laser driver.
The EV kit is composed of an optical test circuit. The output of the optical evaluation section is configured for attachment to a laser/monitor diode that is configured in the standard four-lead laser connection on BOSA packages.

Applications

  • 10G Ethernet LX4 Modules
  • 1G/2G Fibre Channel SFF/SFP Transceiver Modules
  • Gigabit Ethernet SFF/SFP Transceiver Modules
  • Multirate OC-3 to OC-48 FEC SFF/SFP Transceiver Modules
