MAX3013

PRODUCTION

+1.2V to +3.6V, 0.1µA, 100Mbps, 8-Channel Level Translators

100Mbps Octal, Bidirectional, Logic-Level Translator Saves 50% Board Space

Data Sheet (Rev. 2) Product Selection Table

Part Models: 4
1ku List Price: Starting From $9.22

Viewing:

Overview

100Mbps Guaranteed Data Rate
Bidirectional Level Translation
V_L Operation Down to +1.2V
Ultra-Low 0.1µA Supply Current in Shutdown
Low-Quiescent Current (0.1µA)
UCSP, QFN, and TSSOP Packages

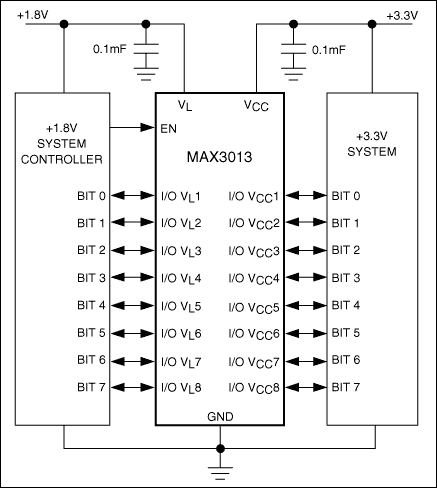

The MAX3013 8-channel level translator provides the level shifting necessary to allow 100Mbps data transfer in a multivoltage system. Externally applied voltages, V_CC and V_L, set the logic levels on either side of the device. Logic signals present on the V_L side of the device appear as a higher voltage logic signal on the V_CC side of the device, and vice-versa.

The MAX3013 features an EN input that, when at logic low, places all inputs/outputs on both sides in tristate and reduces the V_CC and V_L supply currents to 0.1µA. This device operates at a guaranteed data rate of 100Mbps for V_L > 1.8V.

The MAX3013 accepts a V_CC voltage from +1.65V to +3.6V and a V_L voltage from +1.2V to (V_CC - 0.4V), making it ideal for data transfer between low-voltage ASICs/PLDs and higher voltage systems. The MAX3013 is available in 5 x 4 UCSP™, 20-pin 5mm x 5mm QFN, and 20-pin TSSOP packages.

Applications

Cell Phones
Global Positioning Systems (GPS)
Low-Voltage ASIC Level Translation
Portable Communication Devices
Portable POS Systems
SPI™ and MICROWIRE™ Level Translation
Telecommunications Equipment

Part Models: 4
1ku List Price: Starting From $9.22

Documentation

Data Sheet 1

MAX3013: +1.2V to +3.6V, 0.1µA, 100Mbps, 8-Channel Level Translators Data Sheet (Rev.2) 05/13/2005

Reliability Data 1

MAX3013 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX3013ETP+	20-LFCSP-5X5X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3013ETP+T	20-LFCSP-5X5X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3013EUP+	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3013EUP+T	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jun 20, 2016 - 1612 ASSEMBLY
		pcn_1612
MAX3013ETP+	PRODUCTION
MAX3013ETP+T	PRODUCTION
Dec 8, 2016 - 1613_ERRATA ASSEMBLY
		pcn_1613_errata
MAX3013EUP+	PRODUCTION	pcn_1613_errata

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Level Translators & Buffers 2
MAX3002	PRODUCTION	+1.2V to +5.5V, ±15kV ESD-Protected, 0.1µA, 35Mbps, 8-Channel Level Translators
MAX3003		+1.2V to +5.5V, ±15kV ESD-Protected, 0.1µA, 35Mbps, 8-Channel Level Translators

Tools & Simulations

IBIS Model 1

MAX3013 IBIS Model
