MAX22193

RECOMMENDED FOR NEW DESIGNS

High-Speed, Quad, Industrial Digital Input with Parallel Output

Industry's Smallest, Robust, Qual Digital Input with Parallel Output

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.80

Viewing:

Overview

High-Speed, Industrial Digital Inputs
- 300ns Maximum Propagation Delay
- 40ns Maximum Channel-to-Channel Skew
- Parallel Output for Simultaneous Signal Delivery
High Integration Reduces BOM and Space
- Operates Directly from Field Supply (7V to 65V)
- Compatible with 3.3V or 5V Logic
- 4mm x 4mm, 20-TQFN Package
Low Power and Low Heat Dissipation
- 1.2mA (max) Quiescent Current with 3.3V Supply
- Accurate Input Current-Limiters
- Energyless Field-Side LED Drivers

Fault Tolerant with Built-In Diagnostics
- Integrated Field-Side Supply Monitor
- Integrated Over-Temperature Monitor
- Current-Setting Resistor Monitor
Configurability Enables Wide Range of Applications
- Configurable IEC 61131-2 Types 1, 2, 3 Inputs
- Input Current Limiting from 1.18mA to 7.01mA
Robust Design for Industrial Environments
- ±2kV Surge Tolerant using 470Ω Resistor (min)
- ±8kV Contact ESD and ±15kV Air Gap ESD Using 470Ω Resistor (min)
- -40°C to +125°C Ambient Operating Temperature

The MAX22193 translates four 24V industrial digital inputs to four CMOS-logic-compatible, parallel outputs. Propagation delay from input-to-output is less than 300ns for all four channels. Current-limiter on each digital input greatly reduces power dissipation compared to traditional resistive input. The accuracy of these current-limiters minimizes power dissipation while ensures compliance with the IEC 61131-2 standard. A current-setting resistor allows the MAX22193 to be configured for Type 1, Type 2 or Type 3 digital inputs. Additionally, the MAX22193 has energyless field-side LED drivers to meet the indicator light requirement of IEC 61131-2 with no additional power dissipation.

The MAX22193 provides a 3.3V integrated voltage regulator. The internal LDO accepts the field supply V_DD24 from 7V to 65V. The internal LDO output can supply up to 25mA of current in addition to powering the basic MAX22193 requirements. This LDO can be used to power digital isolators and other field-side circuits. Alternatively, the MAX22193 can be powered from an external 3.0V to 5.5V supply at V_DD3.

The MAX22193 includes an open-drain READY output that asserts high to indicate the MAX22193 is functional. If the V_DD24 field-side supply voltage is too low, or a fault in the current-setting resistor is detected, or the device reaches an over-temperature condition, the READY signal is set to high-impedance.

Applications

Programmable Logic Controllers (PLC)
Distributed Control System (DCS)
Motor Control
Industrial Automation
Process Automation

Part Models: 2
1ku List Price: Starting From $1.80

Documentation

Data Sheet 1

MAX22193 High-Speed, Quad, Industrial Digital Input with Parallel Output Data Sheet (Rev.1) 07/03/2024

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX22193ATP+	Thin Quad Flatpack, No Leads	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX22193ATP+T	Thin Quad Flatpack, No Leads	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Kit for the MAX22193

Buy Now View Details

Features and Benefits

Easy Evaluation of the MAX22193
- Configured for IEC 61131-2 Type 1/3
- Support IEC 61131-2 Type 2 on Signal Channel
- Parallel Output for Simultaneous Signal Delivery
- Configurable External V_DD24 Voltage Monitoring
Robust Design with ±2kV Input Surge Protection
Withstands ±8kV Contact Electrostatic Discharge (ESD) and ±15kV Airgap ESD
Fully Assembled and Tested
Proven PCB Layout

Product Details

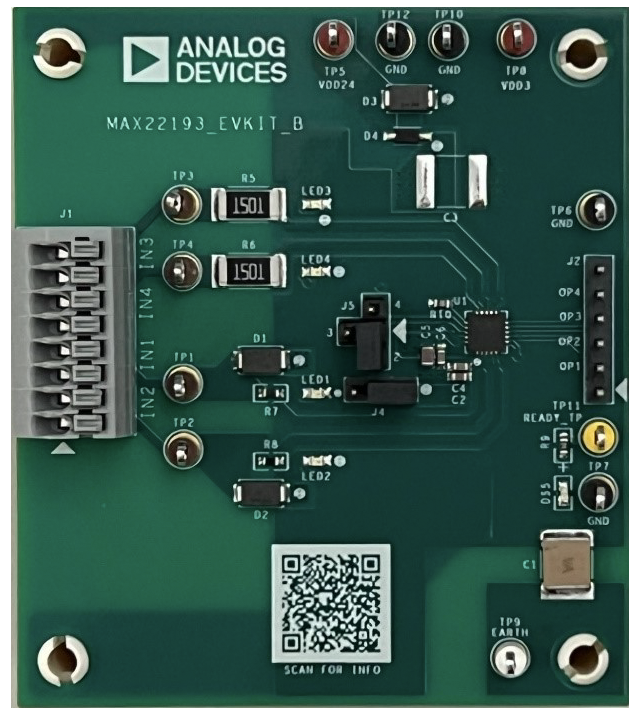

The MAX22193 evaluation kit (EV kit) provides a proven design to evaluate the MAX22193, a high-speed, quad, industrial digital input with parallel output device.

The MAX22193 EV kit provides a terminal block for all four inputs and a header for all four outputs for easy monitoring and evaluation. Four field-side LEDs are provided to indicate the input status, as well as a READY LED to indicate the MAX22193 is operating normally.

APPLICATIONS

Distributed Control System (DCS)
Industrial Automation
Motor Control
Process Automation
Programmable Logic Controllers (PLC)
