  4. MAX20340


Features and Benefits

  • Compact, Simple Solution for PLC
    • Up to 166.7kbps Bit Rate
      • 5.7kbps Data Throughput in Automatic Mode
    • 1.2A Charge Current in PLC Mode
    • Automatic Detection of PLC Slave Presence
  • Flexible Configuration
    • Single Resistor to Program
    • PLC Master or Slave
    • Dual or Single Slave Mode (Master Only)
    • PLC Slave Address (Slave Only)
    • I²C Address
  • Small Solution Size
    • Space-Saving 0.4mm pitch, 9-Bump, 1.358mm x 1.358mm WLP

Product Details

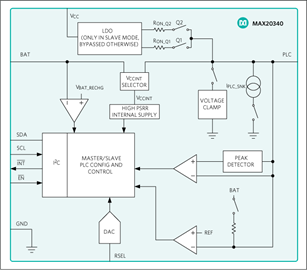

The MAX20340 is a universal bidirectional DC powerline communication (PLC) management IC with a 166.7kbps maximum bit rate. The device is capable of a maximum of 1.2A charge current.

The MAX20340 features a slave detection circuit that flags an interrupt to the system when the PLC master detects the presence of a PLC slave on the powerline. This function allows the system to remain in a low-power state until a slave device is connected.

Many of the features of the MAX20340, such as master/slave mode, I2C address, dual/single PLC slave mode, and PLC slave address, are pin configurable.

The device is available in a 9-bump, 0.4mm pitch, 1.358mm x 1.358mm wafer-level package (WLP).


  • Game Controllers
  • Handheld Radios
  • Point of Sales Devices
  • Tethered Wireless Headphones Hearing Aids
  • Truly Wireless Earbuds
  • Wearables

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

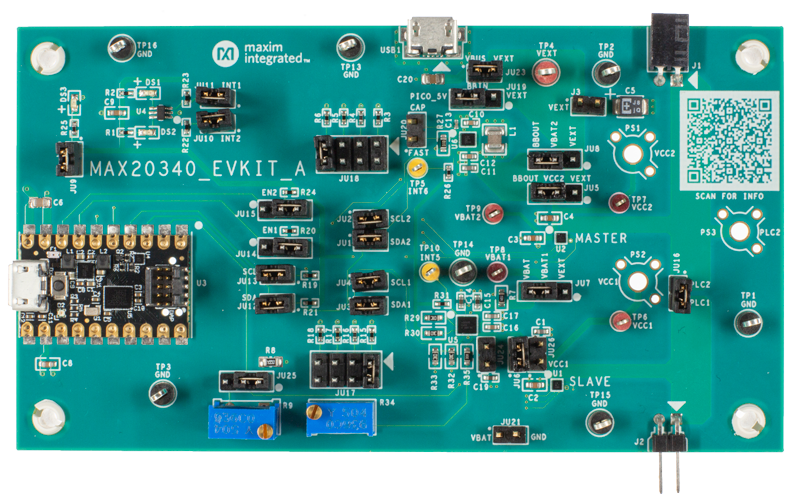

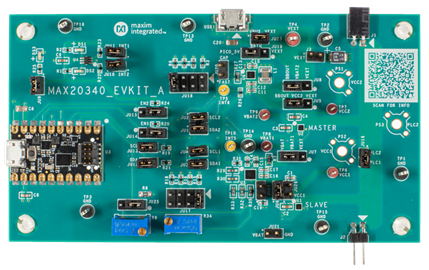

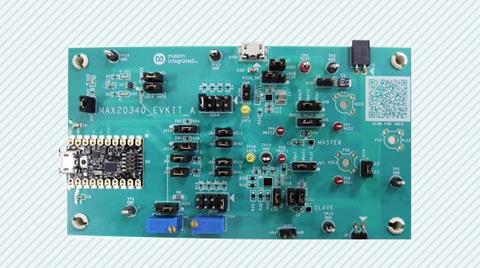

Evaluation Kits (1)
