MAX20326
Dual Precision Bus Accelerator
Dual-Channel, High-Precision, Open-Drain, Communication-Line Accelerator
Top
Overview
Features and Benefits
- Reliable Communication
- Wide Operating Input Voltage: +1.4V to +5.5V
- Precision Accelerator Trigger Threshold: 0.5V ±50mV
- Fast Charge up to 1000pF Load
- Low EMI: Controlled Acceleration Slope
- Space Saving
- 4-Pin 0.5mm Pitch 1.25mm x 1.25mm Flip-Chip QFN
- Integrated Precision Pullup
Product Details

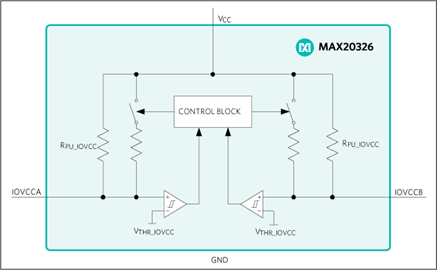

The MAX20326 is a dual-channel, precision, open-drain, communication-line accelerator. It provides the acceleration from a low-to-high transition necessary to allow faster data transfer in a highly capacitive, multidrop node system.
The MAX20326 is optimized for the I2C bus, as well as 1-Wire® bus, where a high-speed, open-drain operation is often required with a highly capacitive load.
This device is available in a 4-pin 0.5mm pitch 1.25mm x 1.25mm flip-chip QFN package and operates over the -40°C to +85°C extended temperature range.
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX20326EFS+ | Material Declaration | Reliability Data | 4-LFCSP-1.25X1.25X0.55 | |
| MAX20326EFS+T | Material Declaration | Reliability Data | 4-LFCSP-1.25X1.25X0.55 | |
| Wafer Fabrication Data |
