MAX14950

PRODUCTION

Quad PCI Express Equalizer/Redriver

Ultra-Small Equalizer/Redriver Improves PCIe Signal Integrity Across Systems for Gen 3.0 Applications

Data Sheet (Rev. 1) Product Selection Table

Part Models: 2
1ku List Price: Starting From $14.84

Viewing:

Overview

Optimized for Generation III (8.0GT/s) and Generation II (5.0GT/s) with Generation I (2.5GT/s) Compatibility
Receive Detection Permits Completely Transparent, Software-Free Operation
Equalization Permits Placement of Up to 30in FR4
PCIe Gen III (8.0GT/s)-Compliant Input/Output Return Loss
Electrical Idle Detection
Very Low Latency: 160ps (typ) Propagation Delay
Random Jitter ≤ 0.5ps_RMS (typ)
Deterministic Jitter ≤ 10.5ps_P-P (typ)
Four-Level-Programmable Input Equalization
Eight-Level-Programmable Output Emphasis
On-Chip 50Ω Input/Output Terminations
Single +3.3V Supply Operation
±5kV Human Body Model (HBM) Protection On All Pins
Space-Saving: 3.5mm x 9.0mm TQFN Package
Pin Compatible with MAX4950 PCIe Generation II Redriver/Equalizer

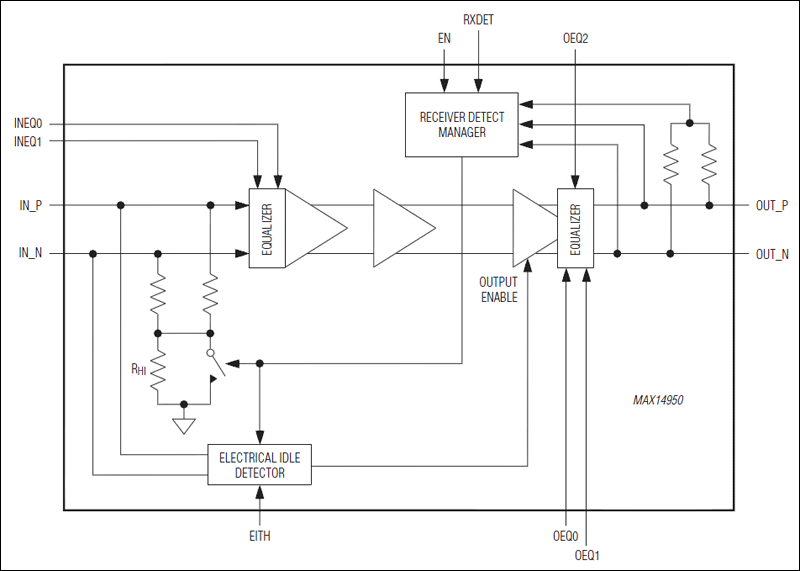

The MAX14950 is a quad equalizer/redriver designed to improve PCI Express® (PCIe) signal integrity by providing programmable input equalization at its receiver and programmable redrive circuitry. The output circuitry reestablishes deemphasis lost on the board and compensates for circuit-board loss. The device permits optimal placement of key PCIe components. The device is useful with stripline, microstrip printed circuits, and balanced 100Ω cable.

The device is tailored for PCIe and features electrical idle and receiver detection on each channel. It is optimized for PCIe Gen III (8.0GT/s) and Gen II (5.0GT/s) data rates, while still handling Gen I (2.5GT/s).

The MAX14950 is available in a small, lead-free, 42-pin (3.5mm x 9.0mm) TQFN package for optimal layout and minimal space requirements. The device is specified over the 0°C to +70°C operating temperature range.

Applications

Communications Switchers
Desktop Computers/Notebook PCs
Servers
Storage

Part Models: 2
1ku List Price: Starting From $14.84

Documentation

Data Sheet 1

MAX14950: Quad PCI Express Equalizer/Redriver Data Sheet (Rev.1) 01/07/2013

Reliability Data 1

MAX14950 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14950CTO+	42-LFCSP-3.5X9X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX14950CTO+T	42-LFCSP-3.5X9X0.75	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Aug 14, 2023 - 2275A WAFER FAB
		pcn_2275a
MAX14950CTO+	PRODUCTION	pcn_2275a

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluation Kit for the MAX14950

Buy Now View Details

Features and Benefits

Eye Diagram Test Circuit with SMA Input/Output
Calibration Traces Provided
Proven PCB Layout
Fully Assembled and Tested

Product Details

The MAX14950 evaluation kit (EV kit) provides a proven design to evaluate the MAX14950 quad PCI Express® (PCIe) equalizer/redriver. The device includes a four-level programmable input equalization and an eight-level programmable output deemphasis/preemphasis.

The EV kit PCB comes with a MAX14950CTO+ installed, which is available in a lead(Pb)-free (3.5mm x 9.0mm), 42-pin TQFN package with an exposed pad.
