MAX14917

PRODUCTION

Industrial Octal High-Side Switch

Industry's Smallest Octal Industrial High Side Switch

Data Sheet (Rev. 0)

Product Selection Table

Part Models: 2
1ku List Price: Starting From $5.57

Viewing:

Overview

Robust Solutions
- 65V Absolute Maximum Supply Range
- CRC Error Checking on the SPI Interface
- Watchdog Timers for Monitoring SPI and SYNCH
- Per Channel Overload Diagnostic and Protection
- Loss of V_DD or GND Protection
- Thermal Shutdown Protection
- Integrated ±1kV / 42Ω IEC 61000-4-5 Surge Protection
- ±7kV / IEC 61000-4-2 Contact Discharge Method
- ±30kV / IEC 61000-4-2 Air Discharge Method
- -40° C to +125°C Operating Ambient Temperature
Reduces Power and Heat Dissipation
- 120mΩ (typ) On-Resistance at T_A = 25°C
- 2.5mA (typ) Supply Current
- Accurate Output Current Limiting
Flexible
- SYNCH Input for Simultaneous Update of Switches
- LED Driver Matrix for 16 LEDs, Powered from 3.0V to 36V
- Internal Clamps for Fast Inductive Load Demagnetization
- Daisy Chainable SPI
- Flexible Logic Voltage Interface from 2.5V to 5.5V
- Pin Compatible with the MAX14915 and MAX14916 in Daisy-Chain Configuration
Compact 6mm x 6mm FC2QFN Package

The MAX14917 has eight high-side switches specified to deliver up to 700mA (min) continuous current per channel. The high-side switches have on-resistance of 120mΩ (typ) at 25°C ambient temperature.

The device has an SPI interface that can be daisy chained, allowing communication with multiple MAX14917 devices utilizing a common SPI chip select (active-low CS). There are also per-channel overload diagnostics provided through the SPI interface. Two watchdog timers provide an additional safety check of the master-to-device connectivity.

The MAX14917 features a 4 x 4 LED cross-bar matrix, which provides a visual indication of channel status and overload conditions for each channel, and an integrated line-to-ground and line-to-line surge protection provides robustness to the electrical stress as per IEC 61000-4-5 and requires only one TVS on V_DD. The MAX14917 is available in a compact 48-pin 6mm x 6mm FC2QFN package.

Applications

Industrial Digital Outputs
PLC Systems
Factory Automation
Building Automation
Industrial IoT

Part Models: 2
1ku List Price: Starting From $5.57

Documentation

Data Sheet 1

MAX14917: Industrial Octal High-Side Switch Data Sheet (Rev.0) 06/18/2020
- Open Interactive Page

Application Note 1

Guidelines to Implement CRC Programming for the MAX14915 Octal, Industrial, High-Side Switch 10/29/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX14917AFM+	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX14917AFM+T	LFCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Nov 19, 2024 - 2439 WAFER FAB
		pcn_2439
MAX14917AFM+	PRODUCTION
MAX14917AFM+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Tools & Simulations

Software Development 1

MAX14915_6_7EVKIT Software, 1.14.0

IBIS Model 1

MAX14917 IBIS Model

Evaluation Kits

Evaluation Kit for the MAX14917

Buy Now View Details

Features and Benefits

Robust Operation with Wide Range of Input Voltages and Load Conditions
VDDOK Indication
LED Indication of Channel Status and Fault Conditions
Fast Inductive-Load Demagnetization
SYNCH Input for Simultaneous Update of Switches
Supports SPI and SYNCH Watchdogs
Global FAULT and Communication Error Indication
Wide Logic-Voltage Range
Daisy-Chainable SPI Communication
-40°C to +125°C Temperature Range
Proven PCB Layout
Fully Assembled and Tested
Windows* 10-Compatible Software

Product Details

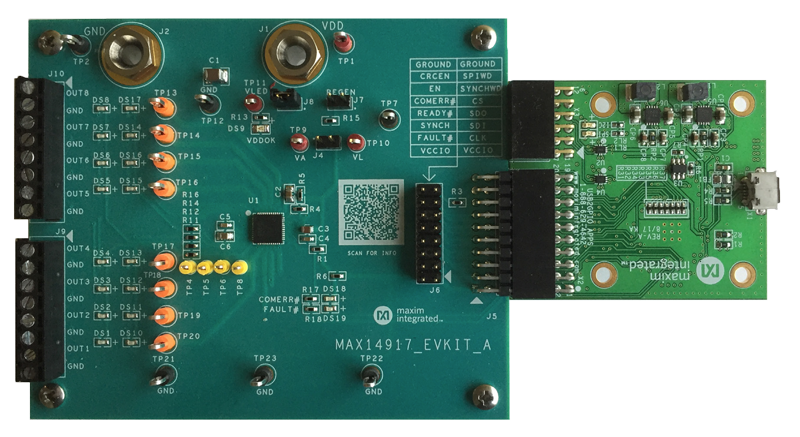

The MAX14917 evaluation kit (EV kit) provides a proven design to evaluate the MAX14917 octal high-side switch. The EV kit includes the MAX14917 evaluation board and a graphical user interface (GUI) that provides communication from a PC to the target device through a USB port and the USB2GPIO interface board. The USB2GPIO EV kit should be ordered separately.

The GUI is compatible with Windows 10 for exercising the features of the MAX14917 IC. The EV kit GUI allows individual control of eight high-side switches through the high-speed SPI interface and receives diagnostic information from the MAX14917 per channel overload diagnostics, communication errors, and thermal shutdown diagnostics.

The MAX14917 EV kit must be powered from an external +24V power supply and can consume more than 10A when fully loaded. The USB2GPIO interface board is powered from the USB port.

The MAX14917 EV kit board comes with a MAX14917AFM+ installed in a 48-pin, 6mm x 6mm FC2QFN package.
