Overview

Features and Benefits

  • Integrated Protection Increases Robustness
    • ±30kV HBM ESD per JEDEC JS-001-2012
    • ±12kV Contact ESD per IEC 61000-4-2
    • ±15kV Air Gap ESD per IEC 61000-4-2
    • True Fail-Safe Receiver Prevents False Transitions on Receiver Input Short or Open
    • Hot Swap Eliminates False Transitions During Power-Up or Hot Insertion
    • Short-Circuit Protected Outputs Low Current Reduces Power Consumption
  • Low Current Reduces Power Consumption
    • 10µA Shutdown Current
    • 1.2mA of Supply Current When Unloaded

Product Details

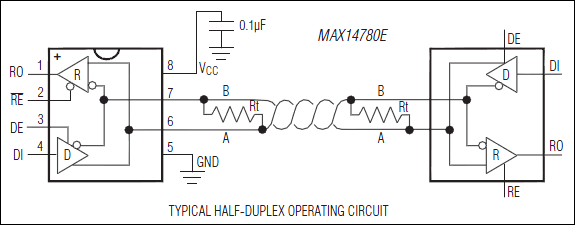

The MAX14780E is a +5V, ±30kV HBM ESD half duplex RS-485/422 transceiver.

The MAX14780E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.

The MAX14780E is available in an 8-pin SO and PDIP packages operating over a temperature range from -40°C to +85°C.

Mobile App

Applications

  • Industrial Control
  • Instrumentation
  • Lighting Systems
  • PROFIBUS
  • Security Systems
  • Telecom
  • Utility Meters

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
