Overview

Features and Benefits

  • Integrated Protection Ensures for Robust Communication
    • ±65V Fault Protection Range on Driver Outputs/Receiver Inputs
    • ±25V Common Mode Range on the Receiver Inputs
    • Large Receiver Hysteresis Increases Noise Tolerance
    • Hot-Swap Protection
    • Thermal Shutdown
  • High-Performance Transceiver Enables Flexible Designs
    • Compliant with RS-485 EIA/TIA-485 Standard
    • 20Mbps (MAX14775E)/500kbps (MAX14776E) Maximum Data Rate
    • 3V to 5.5V Supply Range
    • Up to 100 Devices on the Bus

Product Details

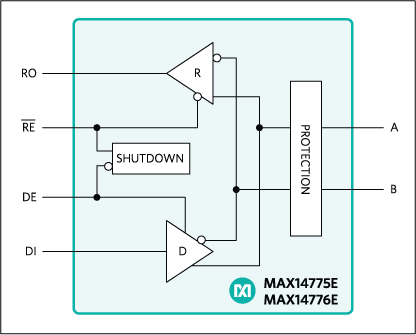

The MAX14775E/MAX14776E fault-protected RS-485/RS-422 transceivers feature ±65V protection for overvoltage signal faults on communication bus lines, ensuring communication in harsh industrial environments. Each device contains one driver and one receiver and operates over the 3V to 5.5V supply range. The MAX14775E is optimized for high-speed data rates up to 20Mbps. The MAX14776E features slew-rate limited outputs for data rates up to 500kbps.

These transceivers are optimized for robust communication in noisy environments. A large 200mV (typ) hysteresis on receiver inputs ensure for high noise rejection and a failsafe feature guarantees a logic-high on the receiver output when the inputs are open or shorted. Driver outputs are protected against short-circuit conditions.

The MAX14775E/MAX14776E receivers feature a 1/3-unit load input impedance, allowing up to 100 transceivers on a bus.

The MAX14775E/MAX14776E are available in 8-pin SOIC and 8-pin TDFN-EP packages and operate over the -40°C to +125°C temperature range.

Applications

  • HVAC
  • Industrial Field Bus Networks
  • Motion Controllers
