MAX13486E
Half-Duplex RS-485/RS-422 Transceivers in µDFN
Industry's Smallest RS-485 Transceiver with Enhanced ESD Protection
Top
Overview
Features and Benefits
- +5V Operation
- True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility
- Hot-Swappable for Telecom Applications
- Enhanced Slew-Rate Limiting Facilitates Error-Free Data Transmission (MAX13485E)
- High-Speed Version (MAX13486E) Allows for Transmission Speeds Up to 16Mbps
- Extended ESD Protection for RS-485/RS-422 I/O Pins ±15kV Using Human Body Model
- 1/4 Unit Load, Allowing Up to 128 Transceivers on the Bus
- Available in Space-Saving 8-Pin μDFN or Industry Standard 8-Pin SO Packages

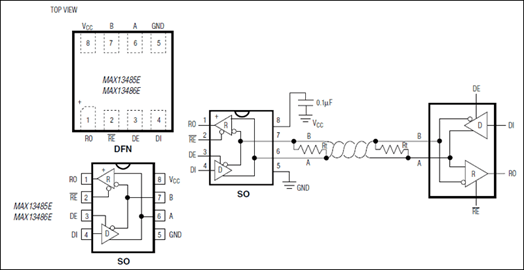

Product Details
The MAX13485E/MAX13486E +5V, half-duplex, ±15kV ESD-protected RS-485 transceivers feature one driver and one receiver. These devices include fail-safe circuitry, guaranteeing a logic-high receiver output when receiver inputs are open or shorted. The receiver outputs a logic-high if all transmitters on a terminated bus are disabled (high impedance). The MAX13485E/MAX13486E include a hot-swap capability to eliminate false transitions on the bus during power-up or live-insertion.
The MAX13485E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free transmission up to 500kbps. The MAX13486E driver slew rate is not limited, allowing transmit speeds up to 16Mbps.
The MAX13485E/MAX13486E feature a 1/4-unit load receiver input impedance, allowing up to 128 transceivers on the bus. These devices are intended for half-duplex communications. All driver outputs are protected to ±15kV ESD using the Human Body Model. The MAX13485E/MAX13486E are available in 8-pin SO and space-saving 8-pin µDFN packages. The devices operate over the extended -40°C to +85°C temperature range.
Applications
- Automated HVAC Systems
- Industrial Controls
- Industrial Motor Drives
- Utility Meters
