LTC2879X

±60V Fault Tolerant RS485/RS422 Transceiver with Operation to 175°C

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model LTC2879X IBIS Model Download 194.33 KB
Part Models 2
1ku List Price Starting From $33.44
Features
  • Guaranteed Operation from –55°C to 175°C
  • Fully Tested at 175°C
  • Protected from Overvoltage Line Faults to ±60V
  • ±52kV ESD Interface Pins, ±15kV All Other Pins
  • Level 4 IEC61000-4-4 Electrical Fast Transient
  • ±25V Working Common Mode Range

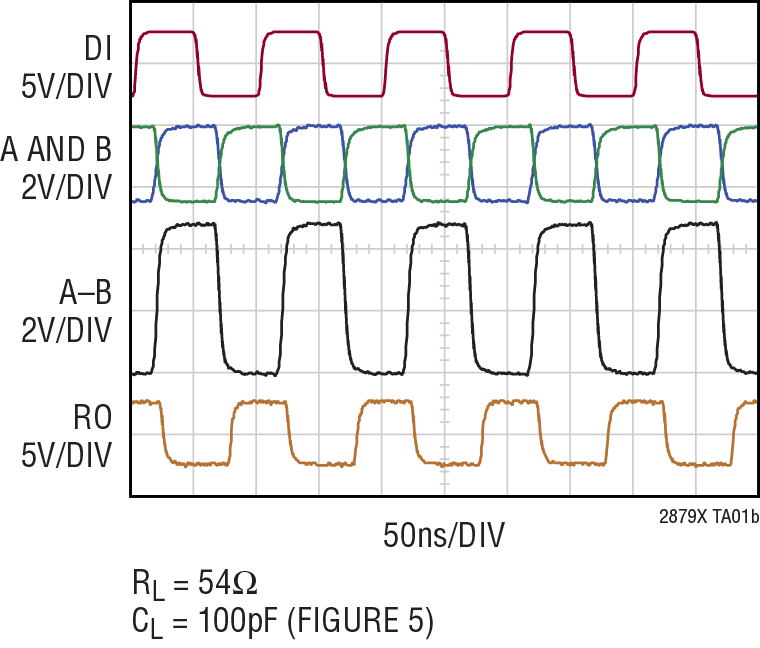

  • 20Mbps Maximum Baud Rate
  • Operates with VCC from 3V to 5.5V
  • PROFIBUS IEC 61158-2 Compliant (VCC ≥ 4.5V)
  • Fully Balanced Differential Receiver Thresholds with 240mV Hysteresis for Superior Noise Tolerance and Low Duty Cycle Distortion
  • Receiver Failsafe for Open, Shorted and Terminated Conditions

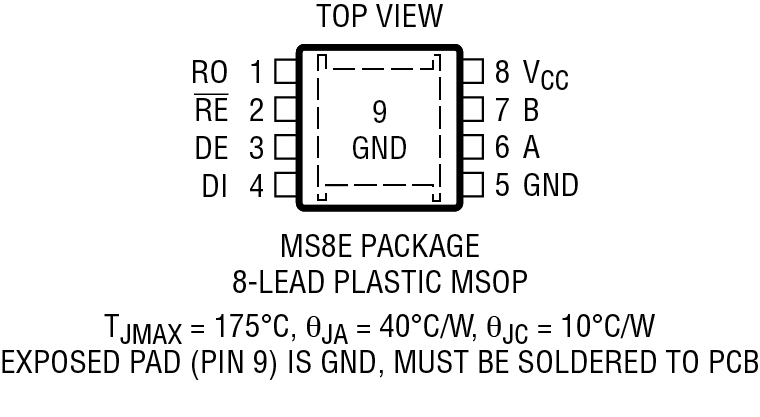

  • Available in a Tiny 3mm × 3mm MSOP Package
Additional Details
show more Icon

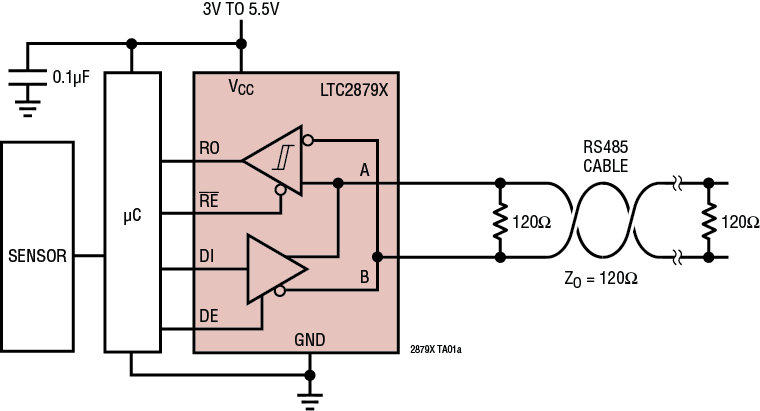

The LTC2879X is a rugged RS485/RS422 transceiver designed to operate over a wide temperature range of –55°C to 175°C. Special processing steps are used to prevent intermetallic growth that can cause metal voids on standard parts operating at high temperatures. Lowdrift, low-leakage circuitry and lack of a thermal shutdown circuit allow the LTC2879X to meet critical specifications, tested 100% at 175°C.

The LTC2879X also meets the specifications for PROFIBUS-DP (IEC 61158-2) supporting all data rates from 9.6kbps to 12Mbps.

The LTC2879X is exceptionally robust, tolerating ±60V faults on the bus pins and protected to ±52kV ESD. These devices are suitable for harsh environments or where 24V power might be inadvertently connected. Extended ±25V input common mode operating range and full failsafe operation improve data communication reliability in noisy systems.

The LTC2879X meets RS485, RS422, and PROFIBUS-DP specifications with a supply voltage of 4.5V to 5.5V with full RS485/RS422 compatibility down to 3V.

Applications

  • Oil and Gas Exploration
  • High Temperature Industrial Control
  • PROFIBUS-DP
  • Military Systems
  • Harsh Environments
Show More Arrow image
file View Data Sheet (Rev.0)
Documentation View All Documentation
IBIS Model LTC2879X IBIS Model Download 194.33 KB
Part Models 2
1ku List Price Starting From $33.44
