LTC1480

PRODUCTION

3.3V Ultralow Power RS485 Transceiver

Data Sheet Product Selection Table

Part Models: 6
1ku List Price: Starting From $2.73

Viewing:

Part Details

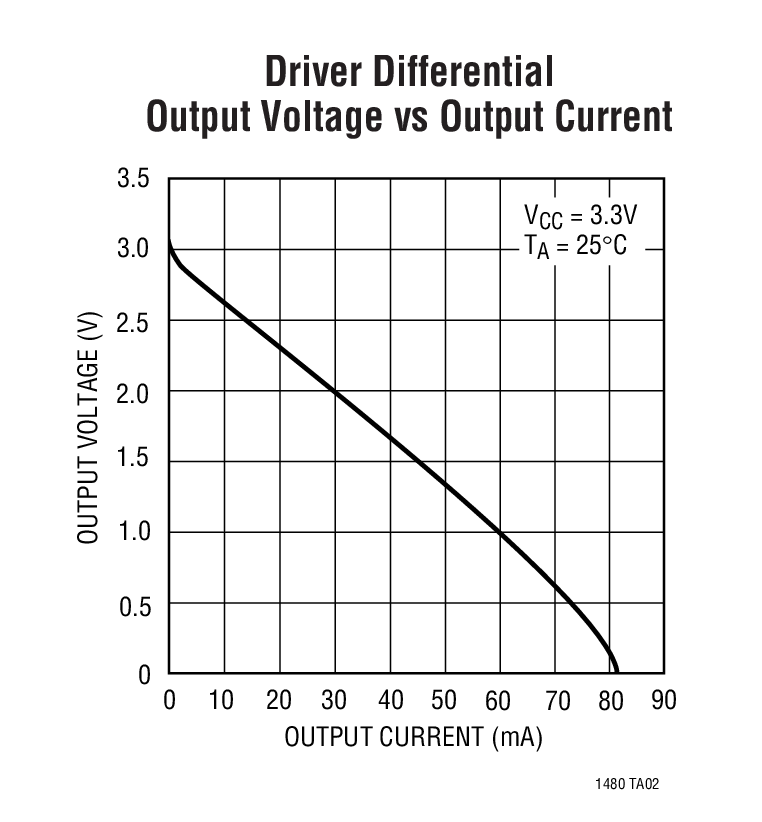

True RS485 from a Single 3.3V Supply
Low Power: I_CC = 500µA Max with Driver Disabled
I_CC = 600µA Max with Driver Enabled, No Load
1µA Quiescent in Shutdown Mode
-7V to 12V Common Mode Range Permits ±7V Ground Difference Between Devices on the Data Line
Thermal Shutdown Protection
Power Up/Down Glitch-Free Driver Outputs Permit Live Insertion or Removal of Transceiver
Driver Maintains High Impedance in Three-State or with the Power Off
Up to 32 Transceivers on the Bus
50ns Typical Driver Propagation Delays with 10ns Skew
Pin Compatible with the LTC485
Available in 8-Lead DIP and SO Packages

Part Models: 6
1ku List Price: Starting From $2.73

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

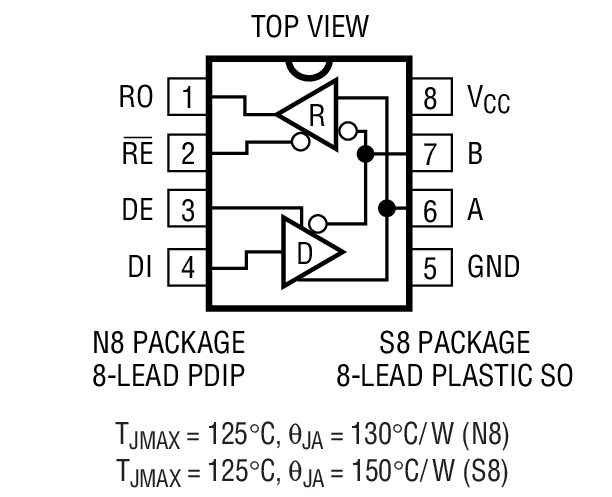

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC1480CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1480CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1480CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1480IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1480IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys
LTC1480IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LTC1480CN8#PBF	PRODUCTION
LTC1480IN8#PBF	PRODUCTION
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LTC1480CN8#PBF	PRODUCTION
LTC1480IN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LTC1480CN8#PBF	PRODUCTION
LTC1480IN8#PBF	PRODUCTION
Dec 14, 2023 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC1480CS8#PBF	PRODUCTION
LTC1480CS8#TRPBF	PRODUCTION
LTC1480IS8#PBF	PRODUCTION
LTC1480IS8#TRPBF	PRODUCTION
Jun 16, 2021 - 21_0026 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0026_Form Material_Report Delta Qualification Matrix
LTC1480CS8#PBF	PRODUCTION
LTC1480CS8#TRPBF	PRODUCTION
LTC1480IS8#PBF	PRODUCTION
LTC1480IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Isolated RS-485 1
LTM2881	PRODUCTION	Complete Isolated RS485/RS422 μModule Transceiver + Power

Parts	Product Life Cycle	Description
ADM3065E	PRODUCTION	3.0 V to 5.5 V, ±12 kV IEC ESD Protected, Half Duplex 50 Mbps RS-485 Transceiver

Tools & Simulations

IBIS Model 1

LTC1480 - IBIS Model

Evaluation Kits

Standard RS-485 Half-Duplex Evaluation Board, EVAL-RS485HDEBZ

Buy Now View Details

Product Details

The EVAL-RS485HDEBZ allows quick and easy evaluation of half-duplex RS-485 transceivers with standard 8-lead SOIC footprints. The evaluation board allows interfacing via screw terminal block to digital I/O for driver input (DI), receiver output (RO), driver enable (DE) and receiver output (RO). Bus signals A and B (half-duplex bus) can be connected to a bus screw terminal block. One or two termination resistors can be connected to A and B via jumper settings, in order to evaluation the half-duplex RS-485 driver and receiver. Footprints are provided for pull-up and pull-down (biasing resistors) on the bus.

Devices for evaluation on the board must be ordered separately.

Resources

UG-543:Evaluation Boards for Full-Duplex and Half-Duplex RS-485 Transceivers (Rev.A)
783 kB
