Overview
Features and Benefits
- SIR, FIR and 4ppm Compatible
- Low Frequency Ambient Rejection Loop
- Supply Current: 2mA
- 8-Lead MSOP and SO Packages
- 5V Single Supply Operation
- Optional High Frequency Noise Rejection
Product Details
The LT1328 is a photodiode receiver that supports IrDA® data rates up to 4Mbps as well as other modulation methods such as Sharp ASK and TV remote control. The LT1328 MSOP contains all the necessary circuitry to convert current pulses from an external photodiode to a digital TTL output while rejecting unwanted lower frequency interference. The LT1328 plus five external components is all that is required to make an IrDA compatible receiver.
Power requirements for the LT1328 are minimal—a single 5V supply and 2mA of quiescent current. Internal high-pass filtering attenuates interfering signals such as sunlight, incandescent and fluorescent lamps and is selectable at Pin 7 for low or high data rates. The LT1328’s ease of use and flexibility make it an ideal solution for numerous other photodiode receiver applications. The LT1328 is available in the SO-8 as well as the tiny MSOP for size-critical applications.
Applications
- IrDA Applications
- Sharp/Newton
- TV Remote
- Noncontact Telemetry
- Wireless Slave for Photographic Flash
- Keyless Entry
- Optical Data Transfer
- Infrared Home Control Systems
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
-
R356 Reliability Data3/26/2018
-

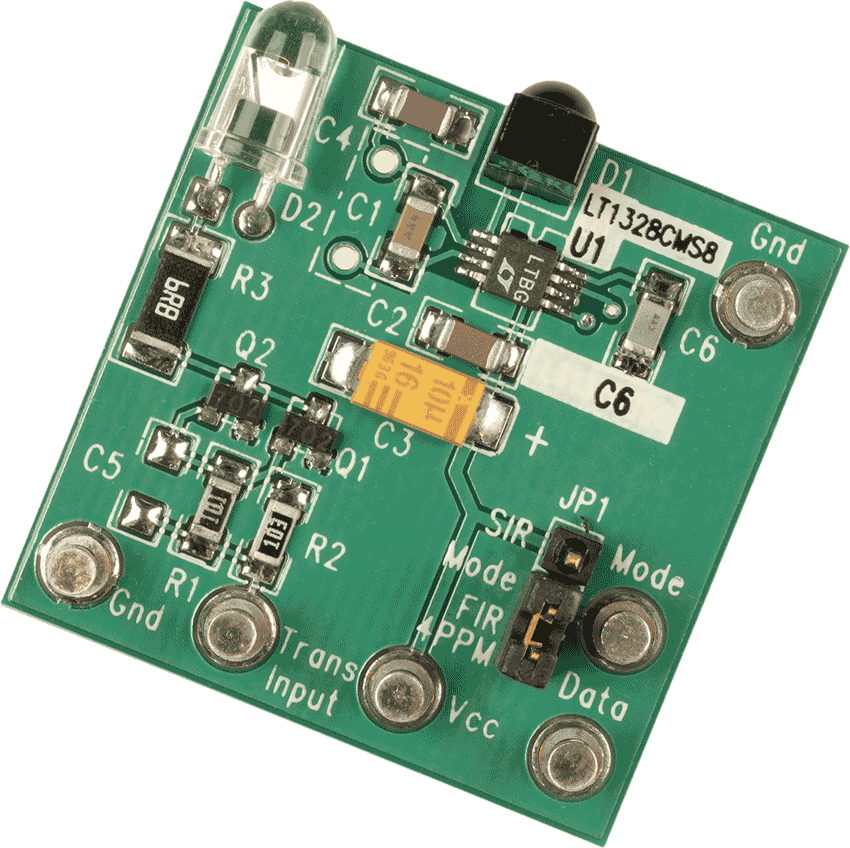

DC112A - Demo Manual10/6/2009
-
LT1328 - SPECIFICATION NOTICE11/22/2004
Tools & Simulations
LTspice
LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
Models for the following parts are available in LTspice:
LT1328
LT1328PD
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| LT1328CMS8#PBF | Material Declaration | Reliability Data | 8-Lead MSOP | |
| LT1328CMS8#TRPBF | Material Declaration | Reliability Data | 8-Lead MSOP | |
| LT1328CS8#PBF | Material Declaration | Reliability Data | 8-Lead SOIC (Narrow 0.15 Inch) | |
| LT1328CS8#TRPBF | Material Declaration | Reliability Data | 8-Lead SOIC (Narrow 0.15 Inch) | |
| LT1328IS8#PBF | Material Declaration | Reliability Data | 8-Lead SOIC (Narrow 0.15 Inch) | |
| LT1328IS8#TRPBF | Material Declaration | Reliability Data | 8-Lead SOIC (Narrow 0.15 Inch) | |
| Wafer Fabrication Data | R356 Reliability Data |
