LT1015
ObsoleteHigh Speed Dual Line Receiver
Overview
- OBSOLETE: For Information Purposes Only. Contact Analog Devices for Potential Replacement.
- Response Time: 10ns
- Setup Time for Latch: 2ns
- Operates on Single 5V Supply
- Dual Function in 8-Pin Package
- No Input Slew Rate Requirement
- Latch Function Included On Chip
- True Differential Inputs
OBSOLETE: For Information Purposes Only. Contact Analog Devices for Potential Replacement.

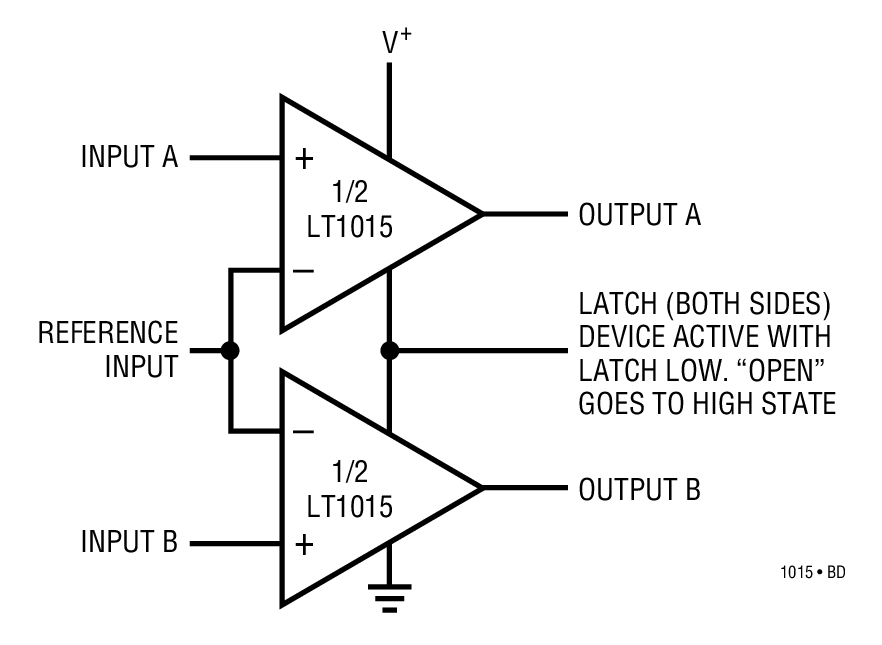

The LT1015 is a dual high speed comparator intended for line receiver and other general purpose fast comparator functions. It has 10ns response time, true differential inputs, TTL outputs and operates from a single 5V supply. A unique output stage design virtually eliminates power supply glitching during transitions. This greatly reduces instability and crosstalk problems in multiple line applications. No minimum input slew rate is required as in previous TTL output comparators.

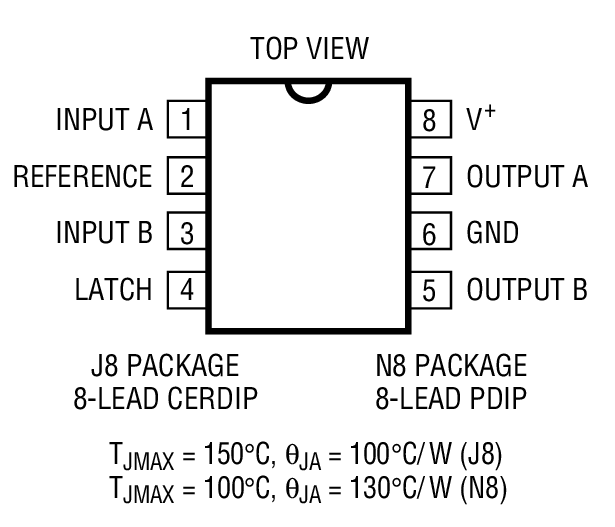

The LT1015 has a true Latch pin for retaining output data. Setup time is 2ns, allowing the comparators to capture data much faster than the actual flowthrough response time. 8-pin miniDIP and ceramic packages allow high packing density.
Applications

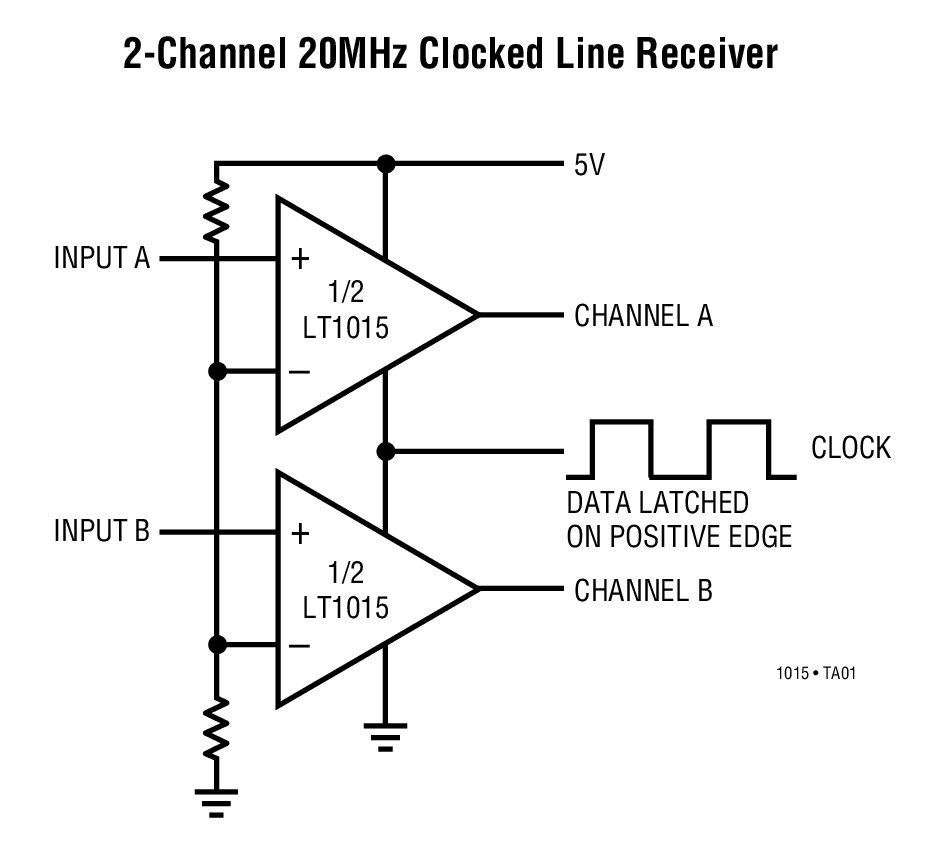

- High Speed Differential Line Receiver
- Pulse Height/Width Discriminator
- Timing and Delay Generators
- Analog to Digital Interface
