Overview

Features and Benefits

  • Inputs Terminated Internally in 50 Ohms
  • Differential & Singe-Ended Operation
  • Fast Rise and Fall Times: 19 / 18 ps
  • Low Power Consumption: 230 mW typ.
  • Programmable Differential
  • Output Voltage Swing: 600 - 1200 mV
  • Propagation Delay: 95 ps
  • Single Supply: -3.3V
  • 16 Lead Ceramic 3x3mm
    SMT Package: 9mm

Product Details

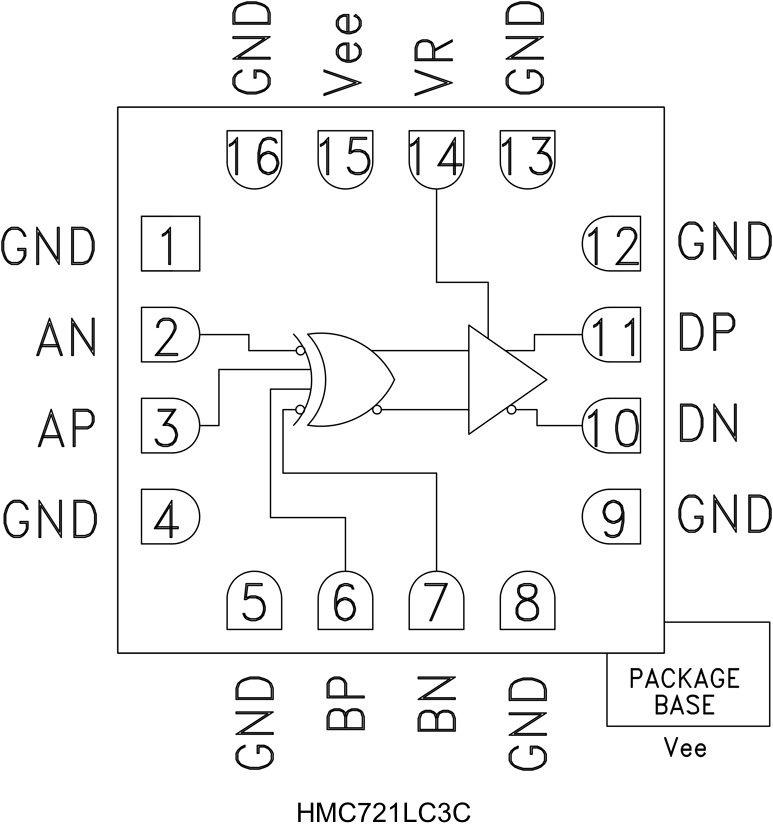

The HMC721LC3C is a XOR/XNOR gate function designed to support data transmission rates of up to 13 Gbps, and clock frequencies as high as 13 GHz. The HMC721LC3C also features an output level control pin, VR, which allows for loss compensation or for signal level optimization.

All input signals to the HMC721LC3C are terminated with 50 Ohms to ground on-chip, and may be either AC or DC coupled. The differential outputs of the HMC721LC3C may be either AC or DC coupled. Outputs can be connected directly to a 50 Ohm to ground terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ohms to a non-ground DC voltage. The HMC721LC3C operates from a single -3.3V DC supply, and is available in a ceramic RoHS compliant 3x3 mm SMT package.

Applications

  • RF ATE Applications
  • Broadband Test & Measuremen
  • Serial Data Transmission up to 13 Gbps
  • Digital Logic Systems up to 13 GHz

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
