HMC334
ObsoleteSiGe Wideband Downconverter Mixer SMT, 0.6 - 2.7 GHz
- Part Models
- 2
- 1ku List Price
- price unavailable
Viewing:
Overview
- Conversion Loss: 0 dB
- LO to RF isolation: 48 dB
- Single-Ended LO Drive: -6 dBm
- Input IP3: +26 dBm
- SSB Noise Figure: 10.5 dB
- On CHip RF Balun
- RoHS Compliant 4x4 mm QFM Package

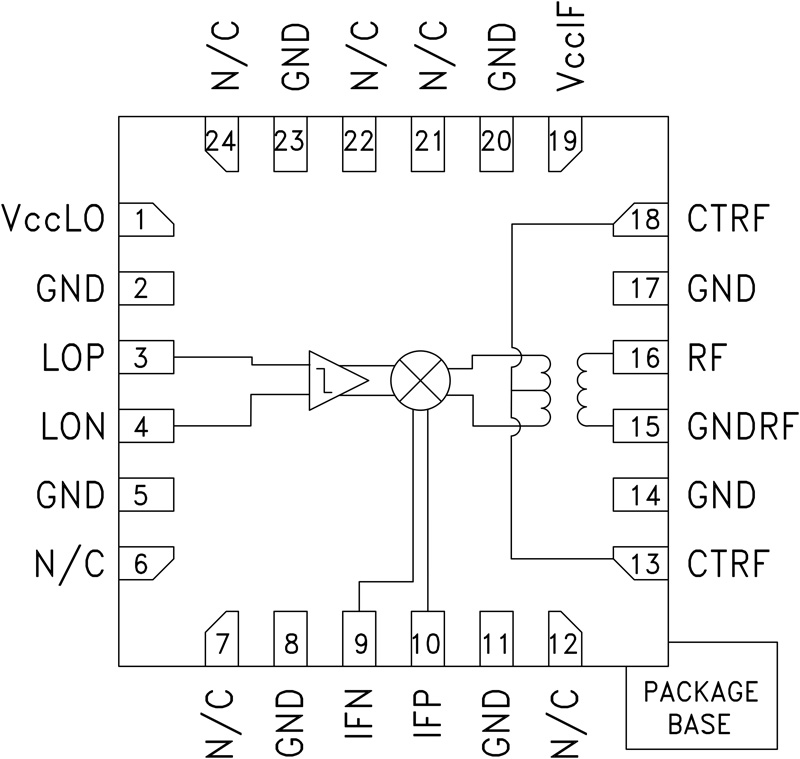

The HMC334LP4(E) is a low noise, wideband downconverter RFIC which is ideal for Celullar/3G and WiMAX/4G applications from 0.6 to 2.7 GHz. The LO input accepts drive levels from -6 to +6 dBm while the RFIC provides 48 dB of LO to RF isolation, and 0 dB conversion loss. The HMC334LP4(E) will support an IF output bandwidth of up to 600 MHz and consumes only 173mA from a +5V supply. This wideband active mixer also provides excellent performance in the presence of high level "Blocker" signals, making it ideal fro receiver applications in demanding environments.
Applications
- Basestations & Repeaters
- GSM, GPRS & Edge
- CDMA, W-CDMA & TD-SCDMA
- WiMAX & WiBro
Documentation
Obsolete Data Sheet 1
Quality Documentation 3
Tape & Reel Specification 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| HMC334LP4E | 24-Lead QFN (4mm x 4mm w/ EP) | ||
| HMC334LP4ETR | 24-Lead QFN (4mm x 4mm w/ EP) |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Mar 3, 2016 - 16_0010 Discontinuance of Select RF and Microwave Products |
||
| HMC334LP4E | Obsolete | |
| HMC334LP4ETR | Obsolete | |
This is the most up-to-date revision of the Data Sheet.
Software Resources
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits
HMC334LP4 Evaluation Board
