HMC-C064

Obsolete

50 Gbps, XOR / XNOR Module

Data Sheet Product Selection Table
Viewing:

Overview

  • Supports Data Rates up to 50 Gbps
  • Inputs Terminated Internally in 50 ohms
  • Supports Single-Ended or
    Differential Operation
  • Low Power Consumption:
    550mW
  • Less Than 200 fs Additive RMS jitter
  • Single -3.3 V Power Supply
  • Hermetically Sealed Module:
  • 1.85mm Connectors
  • -40°C to +70°C operating temperature

The HMC-C064 is a XOR/XNOR gate function designed to support data transmission rates of up to 50 Gbps. All input signals to the HMC-C064 are terminated with 50 Ohms to ground on-chip, and may be either AC or DC coupled. The differential outputs of the HMC-C064 may be either AC or DC coupled. Outputs can be connected directly to a 50 Ohm to ground terminated system, while DC blocking capacitors may be used if the terminating system is 50 Ohms to a non-ground DC voltage. The HMC-C064 operates from a single -3.3V DC supply, and is housed in a hermetically sealed module with 1.85mm connectors.

Applications

  • OC-768 and SDH STM-256 Equipment
  • Serial Data Transmission up to 50 Gbps
  • Digital Logic Systems up to 50 Gbps
  • Broadband Test and Measurement
HMC-C064
50 Gbps, XOR / XNOR Module

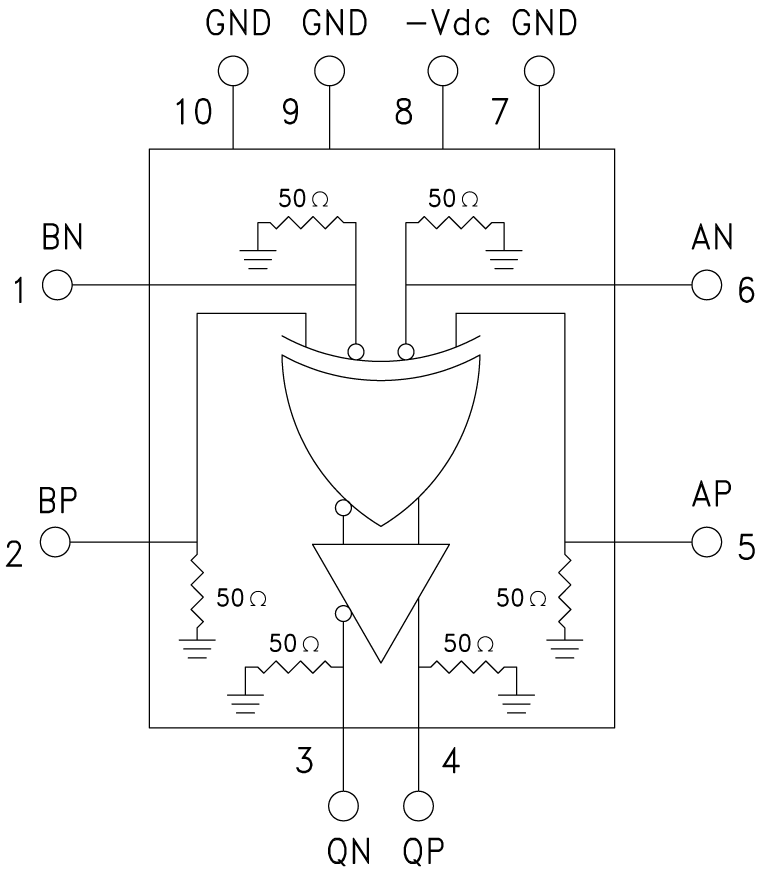

HMC-C064G Functional Block Diagram
