DS9094F
RECOMMENDED FOR NEW DESIGNSiButton Clip
- Part Models
- 2
- 1ku List Price
- Starting From $2.15
Part Details
- Low-cost holder for F5 size iButton (see DS9094SM for F3 holder)
- Printed circuit board mount
- Contacts are gold plated
- Flammability rating: UL94V-O

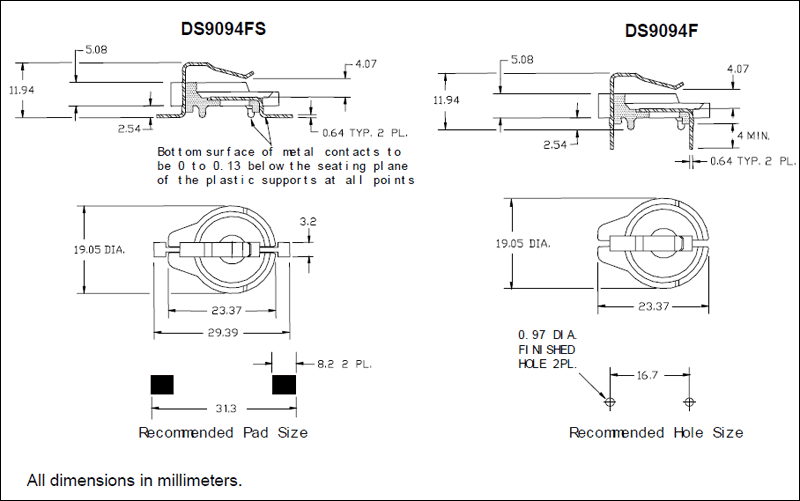

- Two versions:
- DS9094F for F5 size iButton
- DS9094FS for surface mounting F5 size iButton
The DS9094F iButton® PCB Clip holds an iButton and connects to a printed circuit board. By deflecting the spring clip in the molded housing, an iButton can be inserted and extracted without special tools. If reverse insertion is attempted, the beveled edge on the housing prevents contact.
Documentation
Data Sheet 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| DS9094F+ | N/A | ||
| DS9094FS+ | N/A |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Aug 11, 2015 - 1479D ASSEMBLY |
||
| DS9094F+ | PRODUCTION | |
| DS9094FS+ | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
