DS28C40

Deep Cover Automotive I²C Authenticator

Show More showmore-icon

Ensure Vehicle Safety and Reliability by Authenticating Automotive Components

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Part Details
Part Models 4
1ku List Price Starting From $1.42
Features
  • ECC-P256 Compute Engine
    • FIPS 186 ECDSA P256 Signature Generation and Verification
    • ECDH Key Exchange for Session Key Establishment
    • ECDSA Authenticated R/W of Configurable Memory
  • SHA-256 Compute Engine
    • FIPS 198 HMAC for Bidirectional Authentication
  • SHA-256 One-Time Pad Encrypted R/W of Configurable Memory Using an ECDH Established Key
  • One GPIO Pin with Optional Authentication Control
    • Open-Drain, 4mA/0.4V
    • Optional SHA-256 or ECDSA Authenticated On/Off and State Read
    • Optional ECDSA Certificate Verification to Set On/Off after Multiblock Hash for Secure Boot
  • TRNG with NIST SP 800-90B Compliant Entropy Source with Function to Read Out
  • Optional Chip Generated Private/Public (Pr/Pu) Key Pairs for ECC Operations
  • 6Kb of One-Time Programmable (OTP) for User Data, Keys, and Certificates
  • Unique and Unalterable Factory Programmed 64-BitIdentification Number (ROM ID)
    • Optional Input Data Component to Crypto and Key Operations
  • I²C Communication Up to 1MHz
  • 3.3V ±10%, -40°C to +125°C Operating Range
  • 10-Pin TDFN Package
    • 3mm x 4mm TDFN Package
    • 3mm x 3mm, Side-Wettable TDFN Package
  • AEC-Q100 Grade 1
Additional Details
show more Icon

The DS28C40 is a secure authenticator that provides a core set of cryptographic tools derived from integrated asymmetric (ECC-P256) and symmetric (SHA-256) security functions. In addition to the security services provided by the hardware implemented crypto engines, the device integrates a FIPS/NIST true random number generator (TRNG), 6kb of one-time programmable (OTP) memory for user data, keys and certificates, one configurable GPIO, and a unique 64-bit ROM identification number (ROM ID).

The ECC public/private key capabilities operate from the NIST defined P-256 curve and include FIPS 186-4 compliant ECDSA signature generation and verification to support a bidirectional asymmetric key authentication model. The SHA-256 secret-key capabilities are compliant with FIPS 180 and are flexibly used either in conjunction with ECDSA operations or independently for multiple HMAC functions.

The GPIO pin can be operated under command control and include configurability supporting authenticated and nonauthenticated operation including an ECDSA-based crypto-robust mode to support secure boot of a host processor.

DeepCover® embedded security solutions cloak sensitive data under multiple layers of advanced security to provide the most secure key storage possible. To protect against device-level security attacks, invasive and noninvasive countermeasures are implemented including active die shield, encrypted storage of keys, and algorithmic methods.

Applications

  • Automotive Secure Authentication
  • Identification and Calibration Automotive Parts/Tools/Accessories
  • IoT Node Crypto-Protection
  • Secure Authentication of Accessories and Peripherals
  • Secure Boot or Download of Firmware and/or System Parameters
  • Secure Storage of Cryptographic Keys for a Host Controller
Part Models 4
1ku List Price Starting From $1.42

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
DS28C40ATB/VY+
  • HTML
  • HTML
DS28C40ATB/VY+T
  • HTML
  • HTML
DS28C40G/V+T
  • HTML
  • HTML
DS28C40G/V+U
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 8, 2022

- 2244

DESIGN

DS28C40G/V+T

PRODUCTION

DS28C40G/V+U

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Feb 8, 2022

- 2244

arrow down

DESIGN

DS28C40G/V+T

PRODUCTION

DS28C40G/V+U

PRODUCTION

Evaluation Kit

Evaluation Kits 2

reference details image

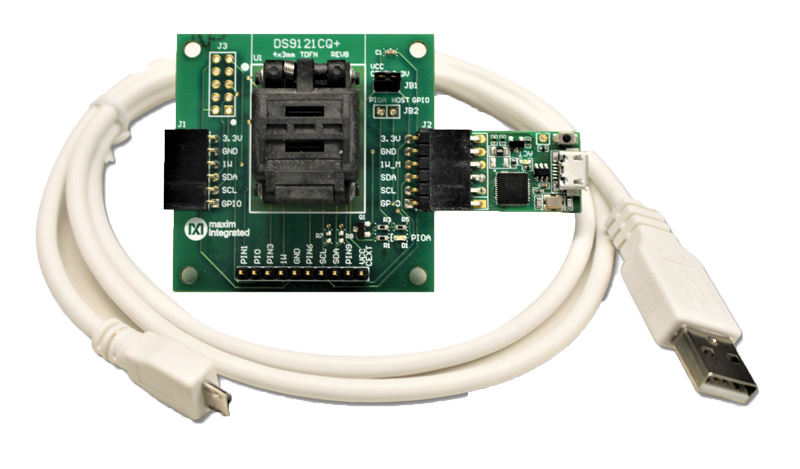

DS28C40EVKIT

Evaluation System for the DS28C40

zoom

DS28C40EVKIT

Evaluation System for the DS28C40

Evaluation System for the DS28C40

Features and Benefits

  • Demonstrates the Features of the DS28C40 DeepCover Secure Authenticator
  • Logs 1-Wire/I2C Communication to Aid Firmware Designers Understanding of DS28C40
  • 1-Wire/I2C USB Adapter Creates a Virtual COM Port on Any PC
  • Fully Compliant with USB Specification v2.0
  • Software Runs on Windows 10, Windows 8, and Windows 7 for Both 64- and 32-Bit Versions
  • 3.3V ±3% I2C Operating Voltage
  • Convenient On-Board Test Points, TDFN Socket
  • Evaluation Software Available by Request

Product Detail

The DS28C40 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28C40. The EV system consists of five DS28C40 devices in a 10-pin TDFN package, a DS9121ATB+ evaluation TDFN socket board and a DS9481P-300# USB-to-I2C/1-Wire® adapter. The evaluation software runs under Windows® 10, Windows 8, and Windows 7 operating systems, both 64- and 32-bit versions. It provides a handy user interface to exercise the features of the DS28C40.

Applications

  • Automotive Secure Authentication
  • Identification and Calibration Automotive Parts/Tools/Accessories
  • IoT Node Crypto-Protection
  • Secure Authentication of Accessories and Peripherals
  • Secure Boot or Download of Firmware and/or System Parameters
  • Secure Storage of Cryptographic Keys for a Host Controller

DS9481P-300

USB-to-1-Wire/I2C Adapter

zoom

DS9481P-300

USB-to-1-Wire/I2C Adapter

USB-to-1-Wire/I2C Adapter

Features and Benefits

  • Driver Support for Windows 10, Windows 7Operating Systems
  • 1-Wire/I2C USB Adapter Creates a Virtual COM Porton Windows, Linux, and Mac Operating Systems
  • Emulates the DS2480B Command Set
  • 3.3V Read/Write Operation to 1-Wire
  • Supports Standard and Overdrive 1-WireCommunication
  • Strong Pullup to 3.3V Provides the Additional CurrentRequired for 1-Wire EEPROM, EnvironmentalSensors, and Cryptographic Devices
  • 1-Wire Active Pullup Accommodates Long Lines
  • 3.3V I2C Operation with SDA and SCL Pullups
  • Supports I2C Speeds of 100kHz and 400kHz
  • 6-Pin Female Interface
  • Fully Compliant with USB Specification v2.0

Product Detail

The DS9481P-300 is a USB-to-1-Wire®/I2C adapter for easy PC connectivity to 1-Wire and I2C devices. The adapter provides a 6-pin female connector with the signals to communicate with 1-Wire and I2C devices that support a 3.3V data I/O level. The DS9481P-300 driver runs on Windows®10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. The virtualized COM port provides a convenient communication interface.
