Overview
Features and Benefits
- Real-time clock (RTC) with fully compatible 1-Wire® MicroLAN interface
- Uses the same binary time/date representation as the DS2404 but with 1 second resolution
- Clock accuracy ±2 minutes per month at 25°C
- Programmable interrupt output for system wakeup
- Communicates at 16.3kbits per second
- Unique, factory-lasered and tested 64-bit registration number (8-bit family code + 48-bit serial number + 8-bit CRC tester) assures absolute traceability because no two parts are alike
- 8-bit family code specifies device communication requirements to bus master
- Built-in multidrop controller ensures compatibility with other MicroLAN products
- Operates over a wide VDD voltage range of 2.5V to 5.5V from -40°C to +85°C
- Low power, 200nA typically with oscillator running
- Compact, low cost 6-pin TSOC and Flip-Chip surface mount package
Product Details

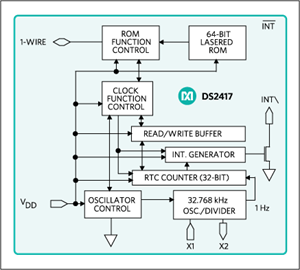

The DS2417 1-Wire Time Chip with Interrupt offers a simple solution for storing and retrieving vital time information with minimal hardware. The DS2417 contains a unique lasered ROM and a real-time clock/calendar implemented as a binary counter. Only one pin is required for communication with the device. Utilizing a backup energy source, the data is nonvolatile and allows for stand-alone operation. The DS2417 features can be used to add functions such as calendar, time and date stamp, and logbook to any type of electronic device or embedded application that uses a micro controller.
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
DS2417: 1-Wire Time Chip With Interrupt Data Sheet (Rev. 2)3/10/2016PDF177K
-
DS2417 Reliability Data1/12/2023PDF17K
-
Maxim Wafer-Level Package Assembly Guide11/12/2004
-
1-Wire Search Algorithm3/28/2002
-
Reading and Writing 1-Wire® Devices Through Serial Interfaces3/29/2001
-
Advanced 1-Wire Network Driver2/14/2023
-
How to Build a 1-Wire® Evaluation Kit5/14/2012
-
1-Wire Software Resource Guide Device Description7/8/2008
-
White Paper 5: Using 1-Wire APIs for Data Sheet Commands6/7/2002
-
1-Wire Communication Through Software5/30/2002
-
Using the DS2480B Serial 1-Wire® Line Driver3/12/2002
-
Understanding and Using Cyclic Redundancy Checks with Maxim 1-Wire and iButton Products3/29/2001
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| DS2417P+ | Material Declaration | Reliability Data | Thin Small-Outline C-Lead | |
| DS2417P+T&R | Material Declaration | Reliability Data | Thin Small-Outline C-Lead | |
| Wafer Fabrication Data | DS2417 Reliability Data |
