DS1861

Full Laser Control with Fault Management

Not the part you were looking for?

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Features

Automatic Power Control (APC)
Automatic Extinction Ratio Control (AERC) Across Temperature and Laser Aging
Works in AC-Coupled Laser Systems
Configurable Latched Automatic Shutdown with Tx-Fault and Tx-Disable
Programmable Fast Alarm Conditions
I²C-Compatible Serial Interface Allows Up to Eight Devices on the Same Serial Bus
Operates Over Wide Supply-Voltage Range
Nonvolatile Memory for Device Settings
Small, 14-Pin TSSOP Package
-40°C to +95°C Operating Temperature Range

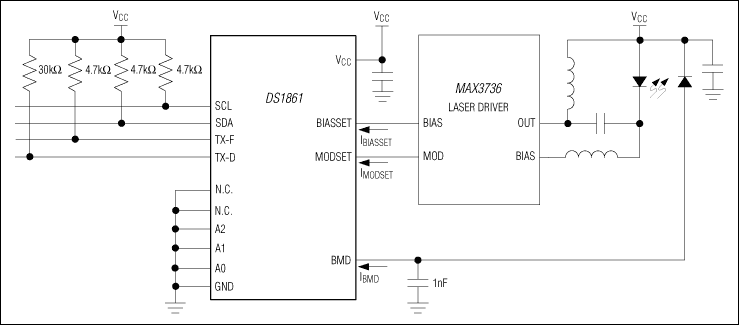

Additional Details

The DS1861 is a laser-driver control IC designed to reduce the production cost of fiber optics circuits by eliminating multiple temperature tests. It works with nearly all laser-driver ICs to provide automatic power control (APC) and automatic extinction ratio control (AERC), which improves the performance of the system over temperature and aging. It also has built-in monitoring capability to provide early fault detection, which can be configured to latch the IC into a shutdown condition. Settings programmed into the DS1861 are stored in password-protected EEPROM memory, which write-protects calibration data. Programming is accomplished through an I²C-compatible interface, which can also be used to read diagnostic information.

Applications
