DS1670: Portable System Controller Data Sheet (Rev. 1)8/9/2005PDF156K
Overview
Features and Benefits
- Provides Real-Time Clock Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the Week, and Year with Leap Year Compensation Valid Up to 2100 Power-Control Circuitry Supports System Power-On from Day/Time Alarm
- Microprocessor Monitor Halts Microprocessor During Power Fail Automatically Restarts Microprocessor after Power Failure Monitors Pushbutton for External Override Halts and Resets an Out-of-Control Microprocessor
- NV RAM Control Automatic Battery Backup and Write Protection to External SRAM
- 3-Channel, 8-Bit ADC
- Simple 3-Wire Interface
- 3.3V Operation
Product Details

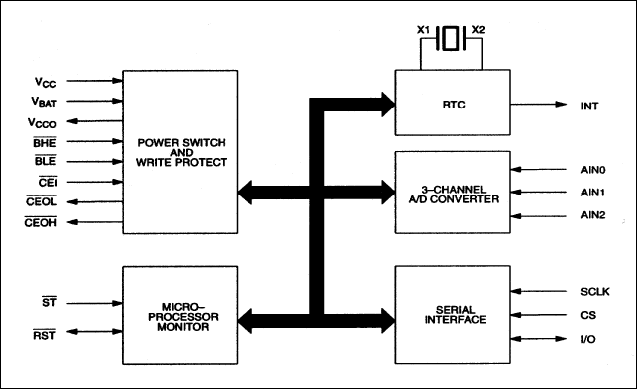

The DS1670 portable system controller is a circuit that incorporates many of the functions necessary for low-power portable products integrated into one chip. The device provides a real-time clock (RTC), NV RAM controller, microprocessor monitor, and a 3-channel, 8-bit analog-to-digital converter (ADC). Communication with the DS1670 is established through a simple 3-wire interface.
The RTC provides seconds, minutes, hours, day, date, month, and year information with leap year compensation. The RTC also provides an alarm interrupt. This interrupt works when the DS1670 is powered by the system power supply or when in battery-backup operation, so the alarm can be used to wake up a system that is powered down.
Automatic backup and write protection of an external SRAM is provided through the VCCO, active-low CEOL, and active-low CEOH pins. The backup energy source used to power the RTC is also used to retain RAM data in the absence of VCC through the VCCO pin. The chip-enable outputs to RAM (active-low CEOL and active-low CEOH) are controlled during power transients to prevent data corruption.
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
DS1670 Reliability Data1/12/2023PDF10K
-
Oscillator Design Considerations for Low-Current Applications1/26/2011
-
Selecting a Backup Source for Real-Time Clocks5/26/2006
-
Using the DS32kHz with Maxim Real-Time Clocks2/15/2002
-
Design Considerations for Maxim Real-Time Clocks2/15/2002
-
Crystal Considerations with Maxim Real-Time Clocks (RTCs)3/29/2001
