ADV7523A
Low Power HDMI®/DVI Transmitter with Consumer Electronic Control (CEC)
Top
Alternative Parts
Overview
Features and Benefits
- Low power HDMI/DVI transmitter ideal for portable applications
- CEC controller and expanded message buffer (3 messages) reduces system overhead
- Incorporates HDMI v.1.3 (x.v.Color™) technology
- Compatible with DVI v.1.0
- Optional embedded HDCP keys to support HDCP 1.3
- 1.8 V and 1.2V supplies for ultralow operating power
- Video/audio inputs accept logic levels from 1.8 V to 3.3 V
- 80 MHz operation supports all video and graphics resolutions from 480i to 1080i
- Programmable two-way color space converter
- Supports RGB, YCbCr, DDR
- Supports ITU656-based embedded syncs
- Automatic input video format timing detection (CEA-861E)
- See data sheet for additional features
Product Details
The ADV7523A is an 80 MHz, high definition multimedia interface (HDMI®) transmitter with expanded CEC buffer. It supports HDTV formats up to 1080i and computer graphic resolutions up to XGA at 75 Hz.
With the optional inclusion of embedded HDCP keys, the ADV7523A allows the secure transmission of protected content, as specified by the HDCP 1.3 protocol. The ADV7523A supports x.v.Color™ (Gamut Metadata) for a wider color gamut.
The ADV7523A supports both S/PDIF and 2-channel I2S audio. Its high fidelity 2-channel I2S can transmit stereo up to a 192 kHz sampling rate. The S/PDIF can carry stereo LPCM audio or compressed audio including Dolby® Digital and DTS®.
The ADV7523A helps to reduce system design complexity and cost by incorporating such features as an I2C master for EDID reading, and 5 V tolerance on the I2C and Hot Plug™ detect pins.

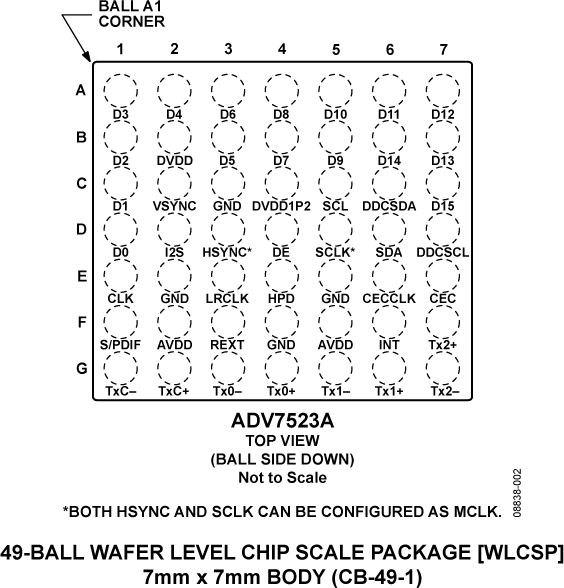

Fabricated in an advanced CMOS process, the ADV7523A is available in a space saving, 49-ball, WLCSP surface mount package. This package is RoHS compliant and specified to operate from −25°C to +85°C.
APPLICATIONS
- Cellular handsets
- Digital video cameras
- Digital still cameras
- Personal media players
- Gaming
- DVD players and recorders
- Digital set-top boxes
- HDMI repeater
Product Categories
Complete documentation (including detailed hardware and software guides) and software driver reference code are available upon completion of a Non-Disclosure Agreement (NDA) (pdf) and a Software Licensing Agreement (pdf).
Additional support is available from your Analog Devices local sales. Information about obtaining licenses required for using HDMI and HDCP technologies is available from www.hdmi.org and www.digital-cp.com.
Product Lifecycle
Not Recommended for New Designs
This designates products ADI does not recommend broadly for new designs.
