ADUM4154

5 kV, 7-Channel, SPIsolator Multiple Slave, Digital Isolator for SPI

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $4.12
Features
  • Supports up to 17 MHz SPI clock speed
  • 4 high speed, low propagation delay, SPI signal isolation channels
  • Supports up to 4 slave devices
  • 20-lead SOIC_IC package with 8.3 mm creepage
  • High temperature operation: 125°C
  • High common-mode transient immunity: >25 kV/μs
  • Safety and regulatory approvals
    • UL recognition per UL 1577
      • 5000 V rms for 1 minute SOIC long package
    • CSA certification per IEC 62368-1, IEC 61010-1, and IEC 60601-1
    • VDE certificate of conformity
      • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
      • VIORM = 849 V peak
Additional Details
show more Icon

The ADuM41541 is an SPIsolator digital isolator optimized for a serial peripheral interface (SPI) that includes support for up to four slave devices. Based on the Analog Devices, Inc., iCoupler® chip scale transformer technology, the low propagation delay and jitter in the CLK, MO/SI, MI/SO, and SS SPI bus signals support SPI clock rates of up to 17 MHz.

The ADuM4154 isolator also provides a slave select multiplexing system that allows up to four slave devices to be serviced from one isolator. When a target slave is selected, the slave select signal propagates to the desired output with low propagation delay, allowing tight timing control. The isolated SSx is addressed through a 250 kbps low speed, 2-channel address bus, allowing the target slave device to be changed in as little as 2.5 μs.

Applications

  • Industrial programmable logic controllers (PLCs)
  • Sensor isolation



Part Models 4
1ku List Price Starting From $4.12

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADUM4154ARIZ
  • HTML
  • HTML
ADUM4154ARIZ-RL
  • HTML
  • HTML
ADUM4154BRIZ
  • HTML
  • HTML
ADUM4154BRIZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 22, 2015

- 15_0135

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM4154ARIZ

PRODUCTION

ADUM4154ARIZ-RL

PRODUCTION

ADUM4154BRIZ

PRODUCTION

ADUM4154BRIZ-RL

PRODUCTION

Feb 27, 2015

- 15_0034

ADuM415x Data Sheet Changes

ADUM4154ARIZ

PRODUCTION

ADUM4154ARIZ-RL

PRODUCTION

ADUM4154BRIZ

PRODUCTION

ADUM4154BRIZ-RL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Sep 22, 2015

- 15_0135

arrow down

Alternate Assembly Site of Select Isolator Products in 8L/16L SOIC_N, 16L/20L SOIC_W and 16L/20L SOIC_IC at ASE Chungli

ADUM4154ARIZ

PRODUCTION

ADUM4154ARIZ-RL

PRODUCTION

ADUM4154BRIZ

PRODUCTION

ADUM4154BRIZ-RL

PRODUCTION

Feb 27, 2015

- 15_0034

arrow down

ADuM415x Data Sheet Changes

ADUM4154ARIZ

PRODUCTION

ADUM4154ARIZ-RL

PRODUCTION

ADUM4154BRIZ

PRODUCTION

ADUM4154BRIZ-RL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

reference details image

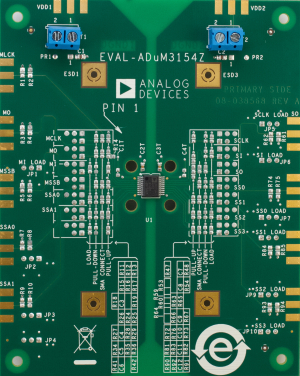

EVAL-ADUM3154

ADUM3154/ADUM4154 Evaluation Board

zoom

EVAL-ADUM3154

ADUM3154/ADUM4154 Evaluation Board

ADUM3154/ADUM4154 Evaluation Board

Features and Benefits

  • Access to all four data channels
  • Access to the slave select address lines
  • Access to the DCLK delayed clock
  • Multiple connection options
  • Support for Tektronix active probes
  • Provision for cable terminations
  • Support for PCB edge-mounted coaxial connectors
  • Easy configuration
  • Installed SPIsolator® digital isolator: ADuM3154BRSZ in the 20-lead SSOP package

Product Detail

The EVAL-ADuM3154Z supports the ADuM3154ARSZ, ADuM3154BRSZ, ADuM4154ARIZ and ADuM4154BRIZ, which are, 4-channel SPIsolator isolators optimized for use in SPI applications. They include two low speed address pins to rout the slave select to one of four destinations. The evaluation board provides a JEDEC standard 20-lead SSOP pad layout, support for signal distribution, loopback, and loads referenced to VDDx or GNDx, as well as optimal bypass capacitance. Signal sources can be wired onto the board as well as brought onto the board through edge-mounted SMA connectors (sold separately) or terminal blocks for power connections. The board includes 200 mil header positions for compatibility with Tektronix active probes.

The board follows best printed circuit board (PCB) design practices for 4-layer boards, including a full power and ground plane on each side of the isolation barrier. No other EMI or noise mitigation design features are included on this board. In cases of very high speed operation or when ultralow emissions are required, refer to the AN-1109 application note for additional board layout techniques.

Supported SPIsolator Models
  • ADuM3154ARSZ
  • ADuM3154BRSZ
  • ADuM4154ARIZ
  • ADuM4154BRIZ
