Overview

Features and Benefits

  • Locks to 1.25 Gbps NRZ serial data input
  • Patented clock recovery architecture
  • No reference clock required
  • Loss-of-lock indicator
  • I2C interface to access optional features
  • Single-supply operation: 3.3 V
  • Low power: 390 mW typical

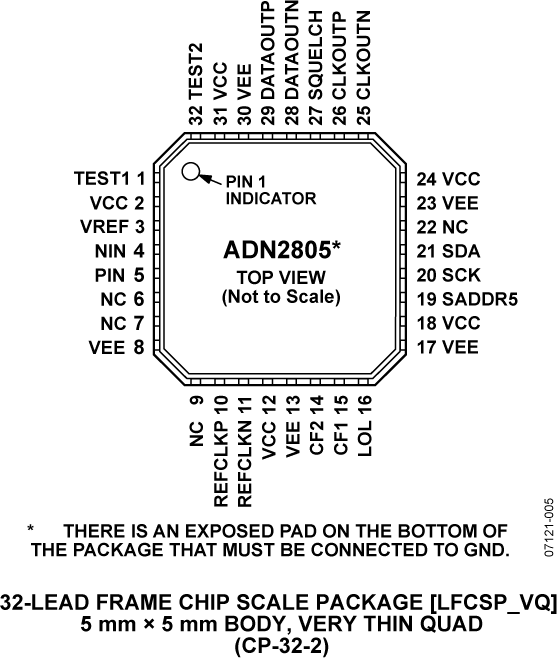

  • 5 mm × 5 mm 32-lead LFCSP, Pb free

Product Details

The ADN2805 provides the receiver functions of quantization and clock and data recovery for 1.25 Gbps. The ADN2805 automatically locks to all data rates without the need for an external reference clock or programming. All SONET jitter requirements are met, including jitter transfer, jitter generation, and jitter tolerance.

All specifications are specified for −40°C to +85°C ambient temperature, unless otherwise noted. The ADN2805 is available in a compact 5 mm × 5 mm 32-lead LFCSP.

Applications

  • GbE line card
  • Product Lifecycle icon-not-recommended Not Recommended for New Designs

    This designates products ADI does not recommend broadly for new designs.

    Evaluation Kits (1)

    Design Resources

    ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

    Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
    ADN2805ACPZ Material Declaration Reliability Data 32-Lead LFCSP (5mm x 5mm)
    ADN2805ACPZ-500RL7 Material Declaration Reliability Data 32-Lead LFCSP (5mm x 5mm)
    ADN2805ACPZ-RL7 Material Declaration Reliability Data 32-Lead LFCSP (5mm x 5mm)
