Overview
Features and Benefits
- Dual RS-422 transceiver for ESD protection on bus input/output pins
- ±15 kV HBM
- ±8 kV IEC 61000-4-2, contact discharge
- ±8 kV IEC 61000-4-2, air discharge
- Complies with TIA/EIA-422-B and ITU-T recommendation V.11
- Open circuit fail-safe
- Suitable for 5 V power supply applications
- Low supply current operation: 9 mA maximum
- Low driver output skew
- Receiver line input resistance: 30 kΩ typical
- Receiver common-mode range: −7 V to +7 V
- Power-up/power-down without glitches

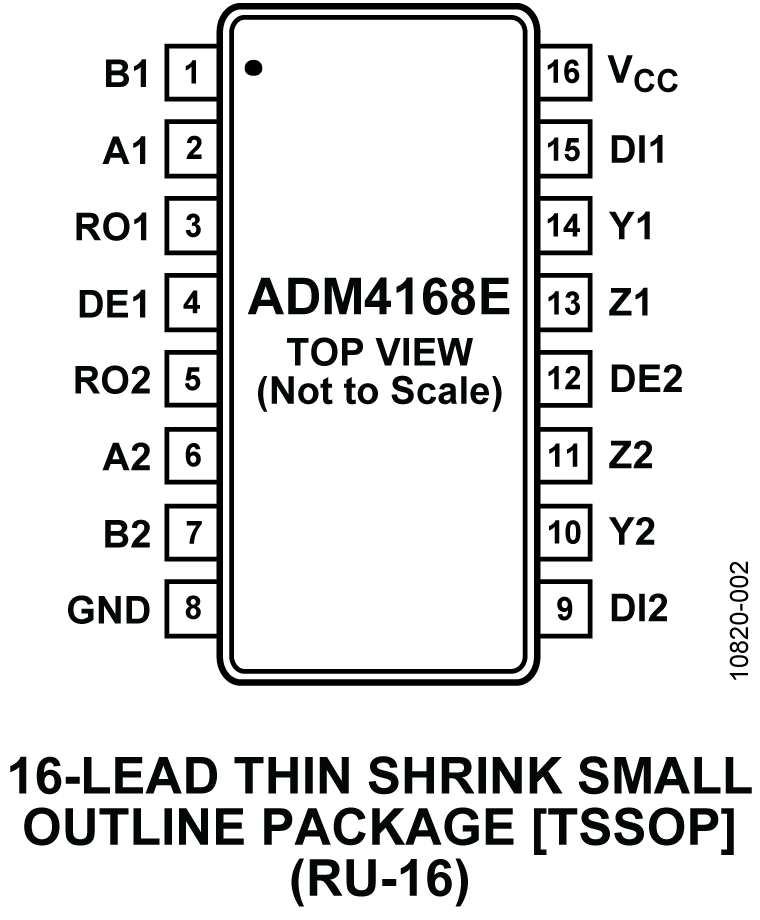

- 16-lead TSSOP package
- Operating temperature range: −40°C to +85°C
Product Details
The ADM4168E is a dual RS-422 transceiver suitable for high speed communication on point to point and multidrop transmission lines. The ADM4168E is designed for balanced transmission lines and complies with TIA/EIA-422-B.
The differential driver outputs and receiver inputs feature electrostatic discharge (ESD) circuitry that provides protection up to ±15 kV human body model (HBM) and ±8 kV IEC 61000-4-2 (contact and air discharge).
The ADM4168E operates from a single 5 V power supply. Excessive power dissipation caused by bus contention or output shorting is prevented by short-circuit protection circuitry. Short-circuit protection circuits limit the maximum output current to −150 mA during fault conditions.
The receivers of the ADM4168E contain a fail-safe feature that results in a logic high output state if the inputs are unconnected (floating).
The ADM4168E is fully specified over the commercial and industrial temperature ranges and is available in a 16-lead TSSOP package.
Applications
- RS-422 interfaces
- High data rate motor control
- Single-ended to differential signal conversion
- Point to point and multidrop transmission systems
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

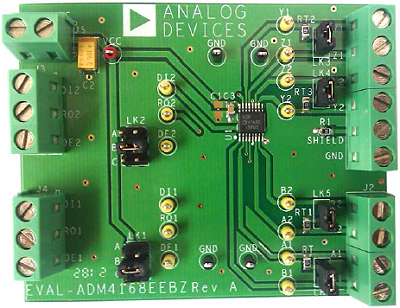

Evaluation Kits (1)
