ADM3491-1

3.3V, Full Duplex, 840uA, 20Mbps, EIA RS-485 Transceiver

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 6
1ku List Price
price unavailable
Features
  • Operates with 3.3 V supply
  • EIA RS-422 and RS-485 compliant over full CM range
  • 19 kΩ input impedance
  • Up to 50 transceivers on bus
  • 20 Mbps data rate
  • Short-circuit protection
  • Specified over full temperature range
  • Thermal shutdown
  • Interoperable with 5 V logic
  • 840 μA supply current
  • 2 nA shutdown current
  • See data sheet for additional features
Additional Details
show more Icon

The ADM3491-1 is a low power, differential line transceiver designed to operate using a single 3.3 V power supply. Low power consumption, coupled with a shutdown mode, makes it ideal for power-sensitive applications. It is suitable for communication on multipoint bus transmission lines.

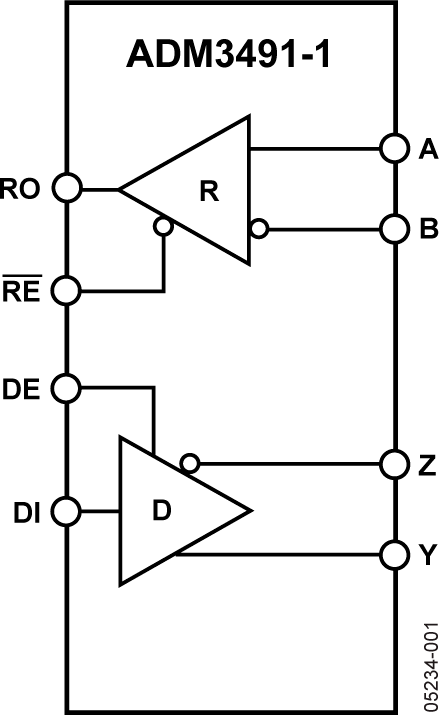

The ADM3491-1 is intended for balanced data transmission and complies with both Electronic Industries Association (EIA) Standards RS-485 and RS-422. It contains a differential line driver and a differential line receiver, making it suitable for full-duplex data transfer.

The input impedance is 19 kΩ, allowing up to 50 transceivers to be connected on the bus. A thermal shutdown circuit prevents excessive power dissipation caused by bus contention or by output shorting. This feature forces the driver output into a high impedance state if a significant temperature increase is detected in the internal driver circuitry during fault conditions.

If the inputs are unconnected (floating), the receiver contains a fail-safe feature that results in a logic high output state.

The ADM3491-1 is fabricated on BiCMOS, an advanced mixed technology process combining low power CMOS with fast switching bipolar technology.

APPLICATIONS

  • Telecommunications
  • DTE–DCE interface
  • Packet switching
  • Local area networks
  • Data concentration
  • Data multiplexers
  • Integrated services digital network (ISDN)
  • AppleTalk Industrial controls
Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 6
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADM3491-1

Documentation

4
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Application Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

pdf

UPDATED 06/24/2014
English

ADM3491-1: 3.3 V, Full-Duplex, 840 μA, 20 Mbps, EIA RS-485 Transceiver Data Sheet (Rev.C)

Open PDF File

redirect
250 kB
download

Download PDF

Application Note

3

PDF Vector

HTML

UPDATED 07/09/2020
English
AN-960: RS-485/RS-422 Circuit Implementation Guide redirect icon

PDF Vector

HTML

UPDATED 07/09/2020
Chinese
AN-960：RS-485/RS-422电路实施指南 redirect icon

PDF Vector

HTML

UPDATED 07/09/2020
Japanese
AN-960: RS-485/RS-422 回路の実装ガイド redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

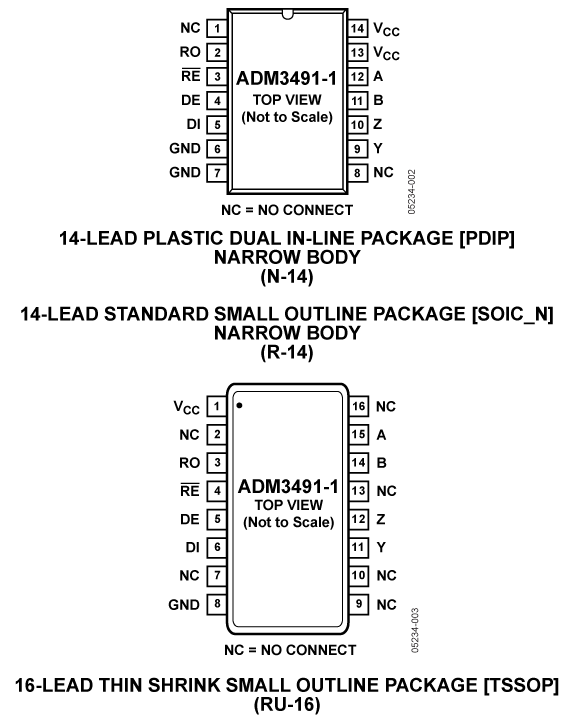

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADM3491ARUZ-1 16-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3491ARUZ-1REEL 16-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3491ARUZ-1REEL7 16-Lead TSSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3491ARZ-1 14-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3491ARZ-1REEL 14-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
ADM3491ARZ-1REEL7 14-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
