ADM3052

Isolated CAN Transceiver with Integrated High Voltage, Bus-Side, Linear Regulator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADM3052 IBIS Model Download B
Part Models 2
1ku List Price Starting From $4.31
Features
  • 5 kV rms isolated CAN transceiver
  • Integrated V+ linear regulator
  • Bus side powered by V+ and V−
  • 11 V to 25 V operation on V+
  • 5 V or 3.3 V operation on VDD1
  • Complies with ISO 11898 standard
  • High speed data rates up to 1 Mbps
  • Short-circuit protection on bus pins
  • Integrated bus miswire protection
  • Unpowered nodes do not disturb the bus
  • 110 or more nodes on the bus
  • Thermal shutdown protection
  • High common-mode transient immunity: >25 kV/μs
  • Safety and regulatory approvals
    • UL recognition: 5000 VRMS for 1 minute per UL 1577
  • VDE Certificates of Conformity
    • DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
    • VIORM = 846 V peak
  • Industrial operating temperature range: −40°C to +85°C
  • Wide body, 16-lead SOIC package
Additional Details
show more Icon
The ADM3052 is an isolated controller area network (CAN) physical layer transceiver with a V+ integrated linear regulator. The ADM3052 complies with the ISO 11898 standard.

The device employs Analog Devices, Inc., iCoupler® technology to combine a 3-channel isolator, a CAN transceiver, and a linear regulator into a single package. The power is isolated between a single 3.3 V or 5 V supply on VDD1, the logic side, and a single 24 V supply provided on V+, the bus side.

The ADM3052 creates an isolated interface between the CAN protocol controller and the physical layer bus. It is capable of running at data rates up to 1 Mbps.

The device has integrated miswire protection on the bus pins, V+, V−, CANH, and CANL.

The device has current-limiting and thermal shutdown features to protect against output short circuits and situations where the bus may be shorted to ground or power terminals. The part is fully specified over the industrial temperature range and is available in a 16-lead, wide-body SOIC package.

Applications

  • CAN Data Buses
  • Industrial Field Networks
  • DeviceNet Applications
Show More Arrow image
file View Data Sheet (Rev.B)
Documentation View All Documentation
IBIS Model ADM3052 IBIS Model Download B
Part Models 2
1ku List Price Starting From $4.31
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADM3052

Documentation

13
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • User Guide
  • Safety and Regulatory Compliance
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
  • Chinese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/12/2010
English

ADM3052: Isolated CAN Transceiver with Integrated High Voltage, Bus-Side, Linear Regulator Data Sheet (Rev.B)

Open PDF File

redirect
251.29 K
download

Download PDF

PDF Vector

pdf

UPDATED 10/12/2010
Japanese

ADM3052: バス側に高電圧リニア・レギュレータを内蔵した絶縁型CANトランシーバ (Rev.0)

Open PDF File

redirect
657 kB
download

Download PDF

User Guide

1

PDF Vector

pdf

UPDATED 12/09/2011
English
UG-221: Evaluation Board for the ADM3052 Isolated CAN Transceiver with Integrated High Voltage, Bus Side Linear Regulator redirect icon

194 kB

download

Download PDF

Safety and Regulatory Compliance

2

PDF Vector

HTML

UPDATED 01/28/2016
English
Safety and Regulatory Compliance Information redirect icon

PDF Vector

HTML

UPDATED 01/28/2016
Japanese
安全規格認証や適合の取得状況 redirect icon

Technical Articles

1

PDF Vector

HTML

UPDATED 01/01/2011
English
Designing with iCoupler Digital Isolators in Solar PV Inverters redirect icon

Application Note

7

PDF Vector

HTML

UPDATED 02/07/2014
Chinese
AN-1176: 二进制.Bxl文件格式的元件尺寸和符号 redirect icon

PDF Vector

HTML

UPDATED 02/07/2014
English
AN-1176: Component Footprints and Symbols in the Binary .Bxl File Format redirect icon

PDF Vector

HTML

UPDATED 03/01/2015
English
AN-1179: Junction Temperature Calculation for Analog Devices RS-485/RS-422, CAN, and LVDS/M-LVDS Transceivers redirect icon

PDF Vector

HTML

UPDATED 03/01/2015
Japanese
AN-1179: アナログ・デバイセズの RS-485/RS-422、CAN、およびLVDS/M-LVDS トランシーバーのジャンクション温度算出 redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
English
AN-1123: Controller Area Network (CAN) Implementation Guide redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
Chinese
AN-1123:控制器局域网(CAN)实施指南 redirect icon

PDF Vector

HTML

UPDATED 10/01/2017
Japanese
AN-1123: CAN（コントローラ・エリア・ネットワーク）の実装ガイド redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Technical Documents 7
show more Icon

Data Sheet 1

ADM3052: Isolated CAN Transceiver with Integrated High Voltage, Bus-Side, Linear Regulator Data Sheet (Rev.B)

User Guide 1

UG-221: Evaluation Board for the ADM3052 Isolated CAN Transceiver with Integrated High Voltage, Bus Side Linear Regulator

Application Note 3

AN-1176: Component Footprints and Symbols in the Binary .Bxl File Format
AN-1179: Junction Temperature Calculation for Analog Devices RS-485/RS-422, CAN, and LVDS/M-LVDS Transceivers
AN-1123: Controller Area Network (CAN) Implementation Guide

Technical Articles 1

Designing with iCoupler Digital Isolators in Solar PV Inverters

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Solutions Bulletin & Brochure 1

Low Noise Isolated CAN FD Transceivers for Higher Data Rates and Low Loop Delays

Safety and Regulatory Compliance 1

Safety and Regulatory Compliance Information

Analog Dialogue 1

Configure Controller Area Network (CAN) Bit Timing to Optimize Performance

Webcast 1

Isolation Architectures for Motor Control Systems

Video

2

Thumbnail Image

Video

2011-01-20

02:26

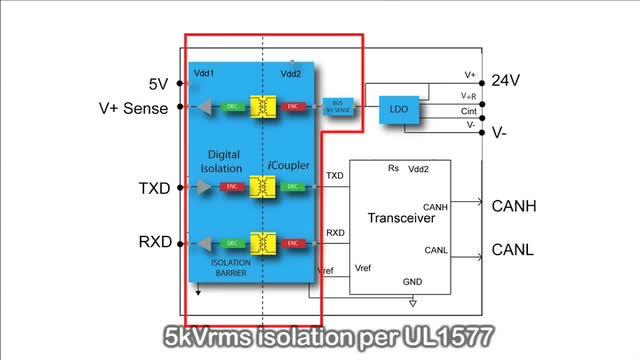

ADM3052 / ADM3053: Fully Isolated CAN Transceivers
