ADM238L

Low Power, +5V CMOS RS-232 100kBPS Transceiver with 4 Drivers and 4 Receivers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $3.90
Features
  • Single 5 V Power Supply
  • Meets All EIA-232-E and V.28 Specifications
  • 120 kB/s Data Rate
  • On-Board DC-DC Converters
  • ±9 V Output Swing with 5 V Supply
  • Small 1 µF Capacitors
  • Low Power Shutdown ≤ µA
  • Receivers Active in Shutdown (ADM223)
  • ±30 V Receiver Input Levels
  • Latch-Up FREE
  • Plug-In Upgrade for MAX223/230-241
  • Plug-In Upgrade for AD230–AD241
Additional Details
show more Icon

The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM223, ADM230L, ADM235L, ADM236L and ADM241L feature a low power shutdown mode that reduces power dissipation to less than 5 µW, making them ideally suited for battery powered equipment. Two receivers remain enabled during shutdown on the ADM223. The ADM233L and ADM235L do not require any external components and are particularly useful in applications where printed circuit board space is critical.

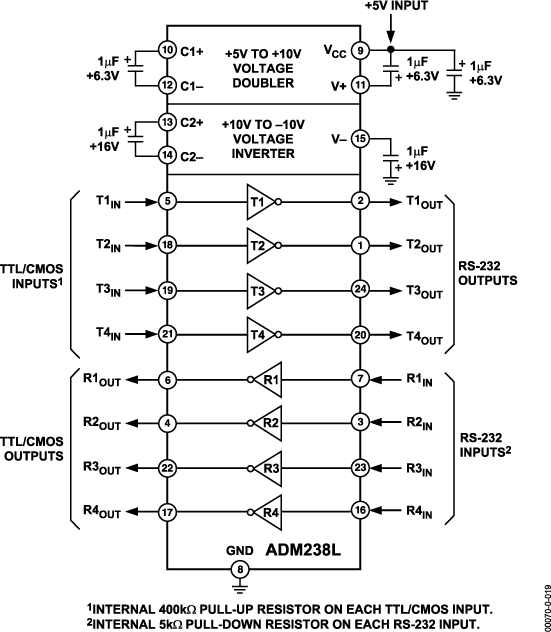

All members of the ADM230L family, except the ADM231L and the ADM239L, include two internal charge pump voltage converters that allow operation from a single +5 V supply. These converters convert the +5 V input power to the ±10 V required for RS-232 output levels. The ADM231L and ADM239L are designed to operate from +5 V and +12 V supplies. An internal +12 V to −12 V charge pump voltage converter generates the −12 V supply.

The ADM2xxL is an enhanced upgrade for the AD2xx family featuring lower power consumption, faster slew rate and operation with smaller (1 µF) capacitors.

Show More Arrow image
file View Data Sheet (Rev.C)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $3.90
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

ADM238L

Documentation

3
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Application Note
  • Data Sheet
  • Technical Articles
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

pdf

UPDATED 07/31/1993
English

ADM231L-ADM234L/ADM236L-ADM241L: 5 V Powered CMOS RS-232 Drivers/Receivers Data Sheet (Rev.C)

Open PDF File

redirect
298 kB
download

Download PDF

Application Note

1

PDF Vector

pdf

UPDATED 01/01/2000
English
AN-375: ADM2xxL Family for RS-232 Communications redirect icon

351 kB

download

Download PDF

Technical Articles

1

PDF Vector

doc

UPDATED 12/22/2010
English
Interface Primer redirect icon

38 kB

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Product Selection Guide 1

Digital Isolation and Interface Technology Selection Guide

Video

1

Thumbnail Image

Video

2020-10-28

01:00

Protect your Innovations: from High Precision to High Power

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models

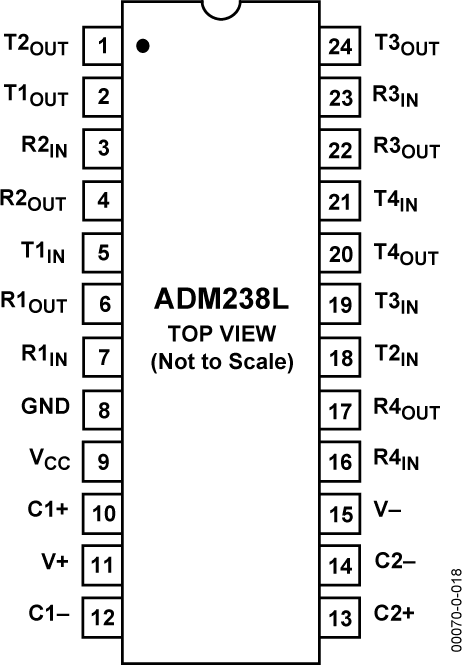

ADM238LAN 24-Lead PDIP external-link
