ADM237L

Low Power, +5V CMOS RS-232 100kBPS Transceiver with 5 Drivers and 3 Receivers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 6
1ku List Price Starting From $4.50
Features
  • Single 5 V Power Supply
  • Meets All EIA-232-E and V.28 Specifications
  • 120 kB/s Data Rate
  • On-Board DC-DC Converters
  • ±9 V Output Swing with 5 V Supply
  • Small 1 µF Capacitors
  • Low Power Shutdown ≤ µA
  • Receivers Active in Shutdown (ADM223)
  • ±30 V Receiver Input Levels
  • Latch-Up FREE
  • Plug-In Upgrade for MAX223/230-241
  • Plug-In Upgrade for AD230–AD241
Additional Details
show more Icon

The ADM2xx family of line drivers/receivers is intended for all EIA-232-E and V.28 communications interfaces, especially in applications where ±12 V is not available. The ADM223, ADM230L, ADM235L, ADM236L and ADM241L feature a low power shutdown mode that reduces power dissipation to less than 5 µW, making them ideally suited for battery powered equipment. Two receivers remain enabled during shutdown on the ADM223. The ADM233L and ADM235L do not require any external components and are particularly useful in applications where printed circuit board space is critical.

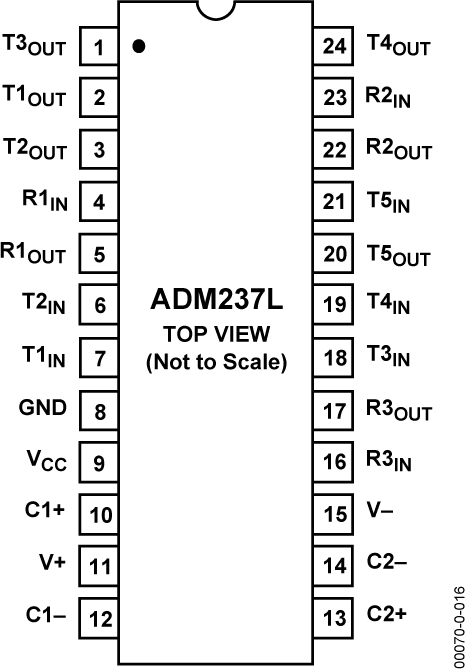

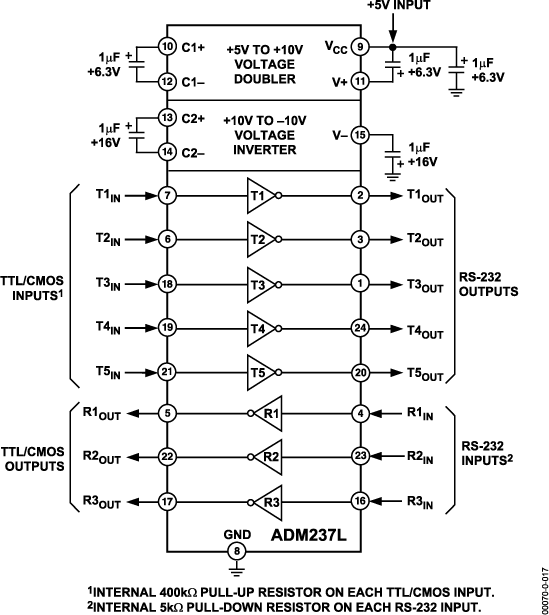

All members of the ADM230L family, except the ADM231L and the ADM239L, include two internal charge pump voltage converters that allow operation from a single +5 V supply. These converters convert the +5 V input power to the ±10 V required for RS-232 output levels. The ADM231L and ADM239L are designed to operate from +5 V and +12 V supplies. An internal +12 V to −12 V charge pump voltage converter generates the −12 V supply.

The ADM2xxL is an enhanced upgrade for the AD2xx family featuring lower power consumption, faster slew rate and operation with smaller (1 µF) capacitors.

Part Models 6
1ku List Price Starting From $4.50

close icon

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADM237LANZ
  • HTML
  • HTML
ADM237LARZ
  • HTML
  • HTML
ADM237LARZ-REEL
  • HTML
  • HTML
ADM237LJNZ
  • HTML
  • HTML
ADM237LJRZ
  • HTML
  • HTML
ADM237LJRZ-REEL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 7, 2019

- 19_0046

Assembly Transfer of 18,20,24,28 Lead PDIP to Cirtek

Sep 26, 2014

- 14_0129

RS-232 Transceiver products alternate Fabrication foundry at ADI, Limerick, Ireland

ADM237LANZ

PRODUCTION

ADM237LARZ

PRODUCTION

ADM237LARZ-REEL

PRODUCTION

ADM237LJNZ

PRODUCTION

ADM237LJRZ

PRODUCTION

ADM237LJRZ-REEL

PRODUCTION

Aug 19, 2009

- 07_0024

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

Jul 21, 2014

- 13_0297

Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L, 20L, 24L and 28L SOICW Packages

Aug 4, 2010

- 10_0117

Halogen Free Material Change for SOIC_W Products at Carsem

ADM237LARZ

PRODUCTION

ADM237LARZ-REEL

PRODUCTION

ADM237LJRZ

PRODUCTION

ADM237LJRZ-REEL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 7, 2019

- 19_0046

arrow down

Assembly Transfer of 18,20,24,28 Lead PDIP to Cirtek

Sep 26, 2014

- 14_0129

arrow down

RS-232 Transceiver products alternate Fabrication foundry at ADI, Limerick, Ireland

ADM237LANZ

PRODUCTION

ADM237LARZ

PRODUCTION

ADM237LARZ-REEL

PRODUCTION

ADM237LJNZ

PRODUCTION

ADM237LJRZ

PRODUCTION

ADM237LJRZ-REEL

PRODUCTION

Aug 19, 2009

- 07_0024

arrow down

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

Jul 21, 2014

- 13_0297

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L, 20L, 24L and 28L SOICW Packages

Aug 4, 2010

- 10_0117

arrow down

Halogen Free Material Change for SOIC_W Products at Carsem

ADM237LARZ

PRODUCTION

ADM237LARZ-REEL

PRODUCTION

ADM237LJRZ

PRODUCTION

ADM237LJRZ-REEL

PRODUCTION
