ADM213E

EMI/EMC-Compliant, 15 kV ESD Protected, RS-232 Line Drivers/Receivers

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 9
1ku List Price Starting From $1.01
Features
  • Complies with 89/336/EEC EMC directive
  • ESD protection to IEC 1000-4-2 (801-2) Contact discharge: ±8 kV Air-gap discharge: ±15 kV Human body model: ±15 kV
  • EFT/burst immunity (IEC 1000-4-4)
  • Low EMI emissions (EN 55022)
  • Eliminates need for TransZorb® suppressors
  • 230 kbps data rate guaranteed
  • Single 5 V power supply
  • Shutdown mode 1 μW
  • Plug-in upgrade for MAX2xxE
  • Space saving TSSOP package available
Additional Details
show more Icon

The ADM213E is one in a family of robust RS-232 and V.28 interface devices which operates from a single +5 V power supply. These products are suitable for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/ EEC). Both the level of emissions and immunity are in compliance. EM immunity includes ESD protection in excess of ±15 kV on all I-O lines (1000-4-2), Fast Transient Burst protection (1000-4-4) and Radiated Immunity (1000-4-3). EM emissions include radiated and conducted emissions as required by Information Technology Equipment EN55022, CISPR22.

All devices fully conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 230 kbps.

Shutdown and Enable control pins are provided on some of the products.

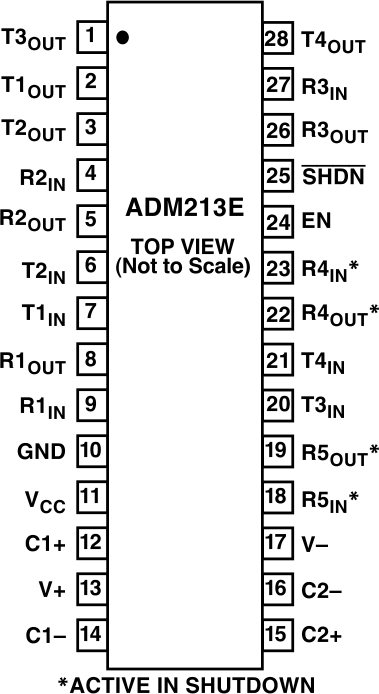

The shutdown function on the ADM211E disables the charge pump and all transmitters and receivers. On the ADM213E the charge pump, all transmitters, and three of the five receivers are disabled. The remaining two receivers remain active thereby allowing monitoring of peripheral devices. This feature allows the device to be shut down until a peripheral device begins communication. The active receivers can alert the processor which can then take the ADM213E out of the shutdown mode.

Operating from a single +5 V supply, four external 0.1 µF capacitors are required.

The ADM206E is available in a 24-pin SO package. The ADM207E and ADM208E are available in 24-pin DIP, SO, SSOP and TSSOP packages. The ADM211E and ADM213E are available in 28-pin SO, SSOP and TSSOP packages.

All products are backward compatible with earlier ADM2xx products facilitating easy upgrading of older designs.

APPLICATIONS

  • Laptop computers
  • Notebook computers
  • Printers
  • Peripherals
  • Modems
Part Models 9
1ku List Price Starting From $1.01

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
ADM213EAR
  • HTML
  • HTML
ADM213EAR-REEL
  • HTML
  • HTML
ADM213EARSZ
  • HTML
  • HTML
ADM213EARSZ-REEL
  • HTML
  • HTML
ADM213EARUZ
  • HTML
  • HTML
ADM213EARUZ-REEL
  • HTML
  • HTML
ADM213EARUZ-REEL7
  • HTML
  • HTML
ADM213EARZ
  • HTML
  • HTML
ADM213EARZ-REEL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 14, 2014

- 14_0129

RS-232 Transceiver products alternate Fabrication foundry at ADI, Limerick, Ireland

ADM213EAR

Obsolete

ADM213EAR-REEL

Obsolete

ADM213EARSZ

PRODUCTION

ADM213EARSZ-REEL

PRODUCTION

ADM213EARUZ

PRODUCTION

ADM213EARUZ-REEL

PRODUCTION

ADM213EARUZ-REEL7

PRODUCTION

ADM213EARZ

PRODUCTION

ADM213EARZ-REEL

PRODUCTION

Aug 4, 2010

- 10_0117

Halogen Free Material Change for SOIC_W Products at Carsem

ADM213EAR

Obsolete

ADM213EAR-REEL

Obsolete

ADM213EARZ

PRODUCTION

ADM213EARZ-REEL

PRODUCTION

Oct 19, 2010

- 10_0002

Halogen Free Material Change for SSOP Products Assembled at Amkor

ADM213EARSZ

PRODUCTION

ADM213EARSZ-REEL

PRODUCTION

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

ADM213EARUZ

PRODUCTION

ADM213EARUZ-REEL

PRODUCTION

ADM213EARUZ-REEL7

PRODUCTION

Jul 21, 2014

- 13_0297

Qualification of ASE Chungli, as an Alternate Assembly Site for Select 16L, 20L, 24L and 28L SOICW Packages

Jan 29, 2014

- 14_0014

ADI Corporate Obsolescence Notice-January 2014 (Standard Products)

ADM213EAR

Obsolete

ADM213EAR-REEL

Obsolete
