Features and Benefits
- Configurable industrial protocol support
- PROFINET RT (Class B)
- PROFINET IRT (Class C): coming soon
- EtherNet/IP with DLR
- All protocols precertified
- Configurable applications processor interface
- UART: 115,200 bps to 1,000,000 bps
- Ethernet at 10 Mbps or 100 Mbps
- SPI follower: 10 MHz maximum clock
- I2C, QSPI, and CAN: future option
- Industrial Ethernet interface-compliant to IEEE 802.3, 10Base or 100Base transmit half and full duplex
- Single 3.3 V power supply, 840 mW
- Cycle time down to 1 ms (cycle times vary based on protocol, link type, and application data)
- 194-ball chip-scale package BGA form factor
- RoHS 3 compliant
- –40°C to +85°C industrial temperature range
The ADIN2299 is a complete, pretested solution that manages the industrial protocol and network traffic for an applications processor.
The module contains everything needed to participate in a Ether-CAT, PROFINET® real-time (RT) and isochronous real time (IRT), EtherNet/IP network, including a communications controller, protocol stack, flash, RAM, follower controller, and physical layer (PHY). An applications processor connects via a universal asynchronous receiver transmitter (UART), serial peripheral interface (SPI), or Ethernet interface.
At the software layer, the applications processor connects to a unified interface so the supported industrial protocols can be used without changing the applications processor software. The ADIN2299 platform was precertified so that the field device can operate in any of the supported industrial Ethernet networks.
- Multiprotocol support
- Small form factor for embedded applications
- Low power and low latency
- Robust network policing ensures passing PROFINET Netload Class 3
- Factory and process automation
- Motion control
- Building automation
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)
This user guide describes how to set up the provided hardware of the evaluation kit and establish the link type specific host connection and connect the evaluation board to an industrial Ethernet network.
The operation of the EV-RPG2 boards vary by Industrial Ethernet Protocol, and separate user guides are available for each protocol on the ADI Chronous Developer Portal.

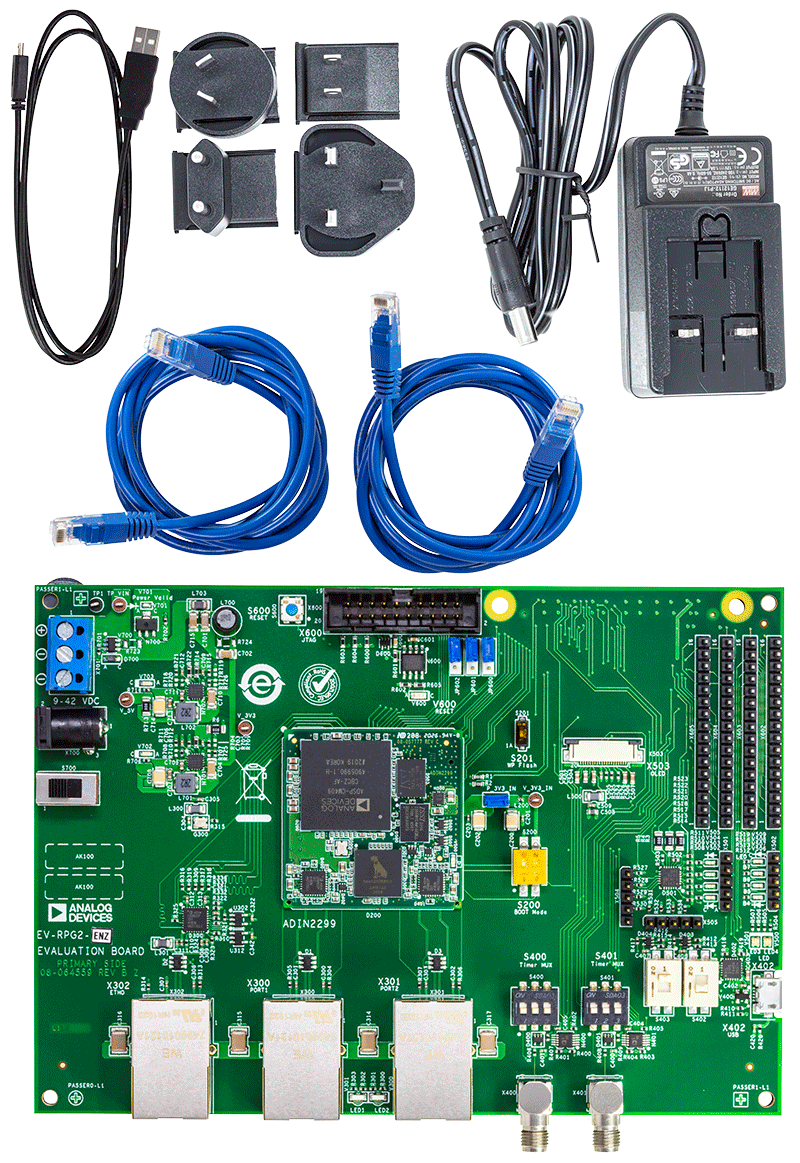

The EV-RPG2 evaluation kits provide an end to end evaluation of the communication path from the host processor to the programmable logic controller (PLC) or PC-based tool.
The EV-RPG2 evaluation kits can completely verify the communication path between the host processor and a PLC before integrating the network interface into the end field device.
EVALUATION KIT OPTIONS
- EtherCAT: EV-RPG2-ECZ
- EtherNet/IP: EV-RPG2-ENZ
- Profinet: EV-RPG2-PNZ
Documentation & Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|ADIN2299BBCZ||Material Declaration||Reliability Data||194-Ball CSP-BGA (38mm x 38mm x 3.41mm)|
|Wafer Fabrication Data|
