ADATE304

PRODUCTION

200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH

Data Sheet (Rev. C) Product Selection Table

Part Models: 1
1ku List Price: Starting From $49.24

Viewing:

Overview

Driver
- 3-level driver with high-Z mode and built-in clamps
- Precision trimmed output resistance
- Low leakage mode (typically <10 nA)
- Voltage range: −2.0 V to +6.0 V or −1.25 V to +6.75 V
- 2.4 ns minimum pulse width, 2 V terminated
Comparator
- Window and differential comparator
- 500 MHz input equivalent bandwidth
Load
- ±12 mA maximum current capability
Per pin PMU
- Force voltage range: −2.0 V to +6.0 V or −1.25 V to +6.75 V
- 5 current ranges: 32 mA, 2 mA, 200 μA, 20 μA, 2 μA
Levels
- 14-bit DAC for DCL levels
- Typically < ±5 mV INL (calibrated)
- 16-bit DAC for PMU levels
- Typically < ±1.5 mV INL (calibrated) linearity in FV mode
HVOUT output buffer
- 0 V to 13.5 V output range

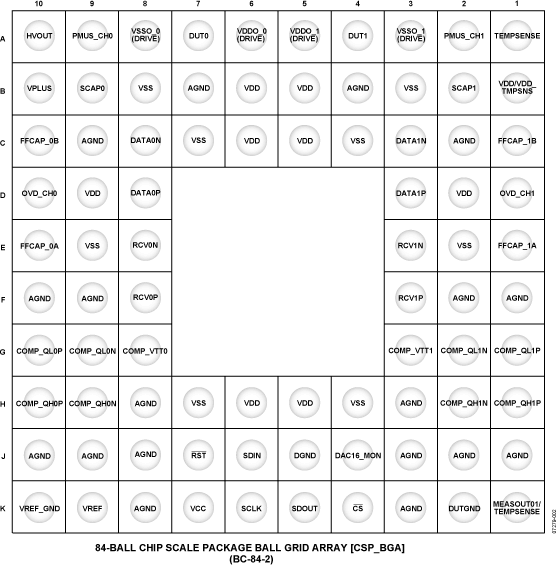

84-lead, 9 mm × 9 mm, CSP_BGA package
900 mW per channel with no load

The ADATE304 is a complete, single-chip solution that performs the pin electronic functions of the driver, the comparator, and the active load (DCL), per pin PMU, and dc levels for ATE applications. The device also contains an HVOUT driver with a VHH buffer capable of generating up to 13.5 V.

The driver features three active states: data high mode, data low mode, and term mode, as well as an inhibit state. The inhibit state, in conjunction with the integrated dynamic clamp, facilitates the implementation of a high speed active termination. The ADATE304 supports two output voltage ranges: −2.0 V to +6.0 V and −1.25 V to +6.75 V by adjusting the positive and negative supply voltages.

Each channel of the ADATE304 features a high speed window comparator per pin for functional testing, as well as a per pin PMU with FV, or FI and MV, or MI functions. All necessary dc levels for DCL functions are generated by on-chip 14-bit DACs. The per pin PMU features an on-chip 16-bit DAC for high accuracy and contains integrated range resistors to minimize external component counts.

The ADATE304 uses a serial bus to program all functional blocks and has an on-board temperature sensor for monitoring the device temperature.

Applications

Automatic test equipment
Semiconductor test systems
Board test systems
Instrumentation and characterization equipment

Part Models: 1
1ku List Price: Starting From $49.24

Documentation

Data Sheet 1

ADATE304: 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH Data Sheet (Rev.C) 03/05/2008

User Guide 1

UG-2130 Evaluating the ADATE304 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH (Rev.0) 08/24/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
ADATE304BBCZ	84-Ball CSPBGA (9mm x 9mm x 1.2mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 9, 2015 - 14_0249 Assembly Transfer of Select CSP_BGA Products to STATS ChipPAC Korea Plant 3
		PCN14_0249_Form Material_Report Detailed Change Description Qualification Results Summary
ADATE304BBCZ	PRODUCTION
Aug 27, 2013 - 13_0148 Flip Chip BGA 9x9 Shipping Tray Change
		PCN13_0148_Form Material_Report Detailed Change Description
ADATE304BBCZ	PRODUCTION
Oct 28, 2010 - 10_0150 Wafer Bumping Changes at STATSChipPAC Singapore for AD53559 and ADATE30X
		PCN10_0150_Form Material_Report Qualification Plan Summary
ADATE304BBCZ	PRODUCTION
Nov 16, 2009 - 06_0157 Qualification of the 8" H6 Thin Film BiPolar Wafer Fab Process at Analog Devices, Limerick, Ireland
		Material_Report PCN06_0157_Form RQR03599A
ADATE304BBCZ	PRODUCTION	Material_Report PCN06_0157_Form RQR03599A

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

Evaluating the ADATE304 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH

Buy Now View Details

Features and Benefits

Full featured evaluation board for the ADATE304
Supply voltages: +21 V and −10 V, on-board voltage regulators
Breakout signal inputs and outputs through SMA connectors
Differential pairs provided with 50 Ω controlled impedance traces with equal lengths
LED indicators for read and write data
PC software for control through USB

Product Details

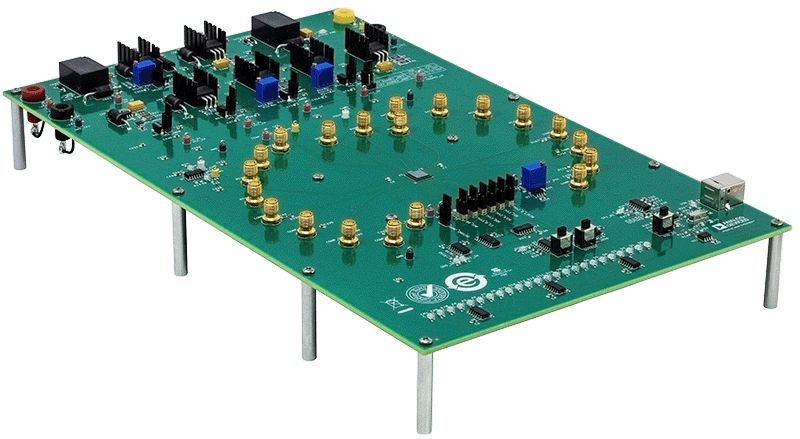

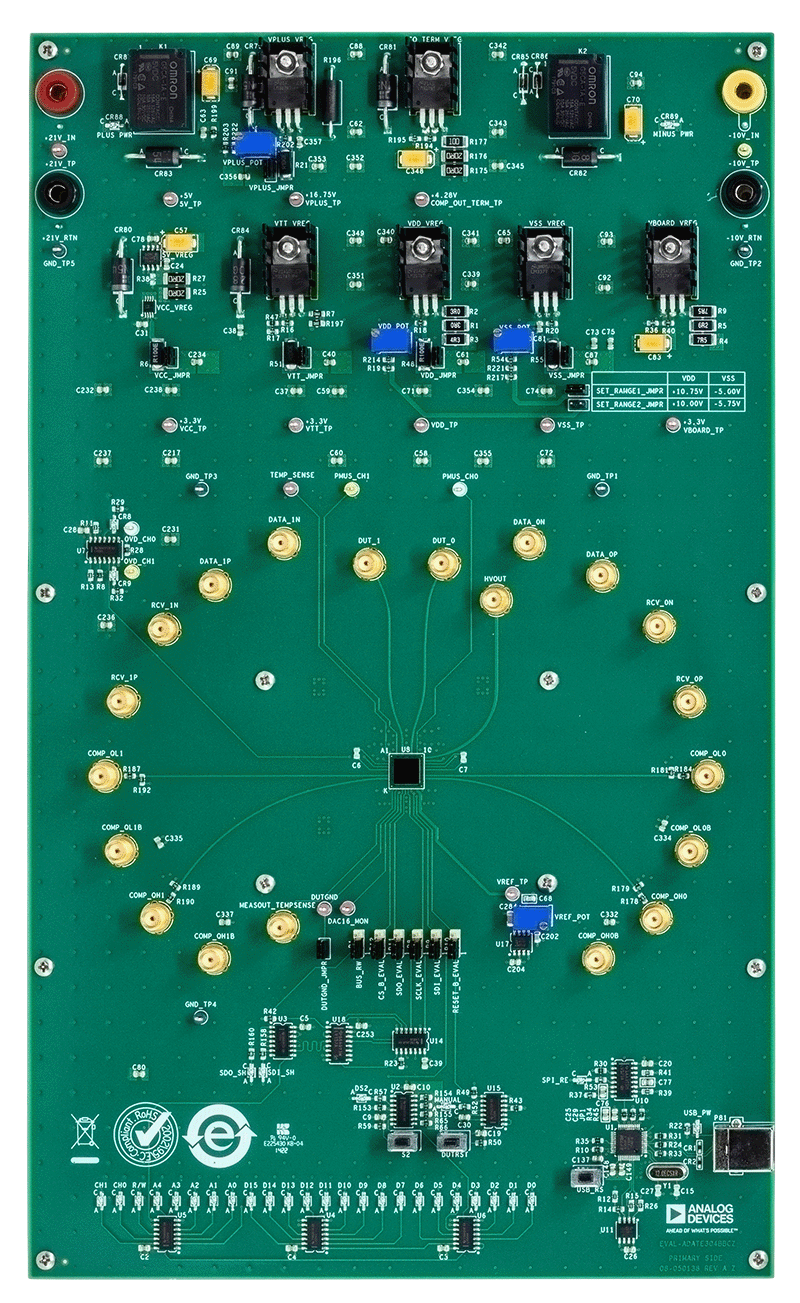

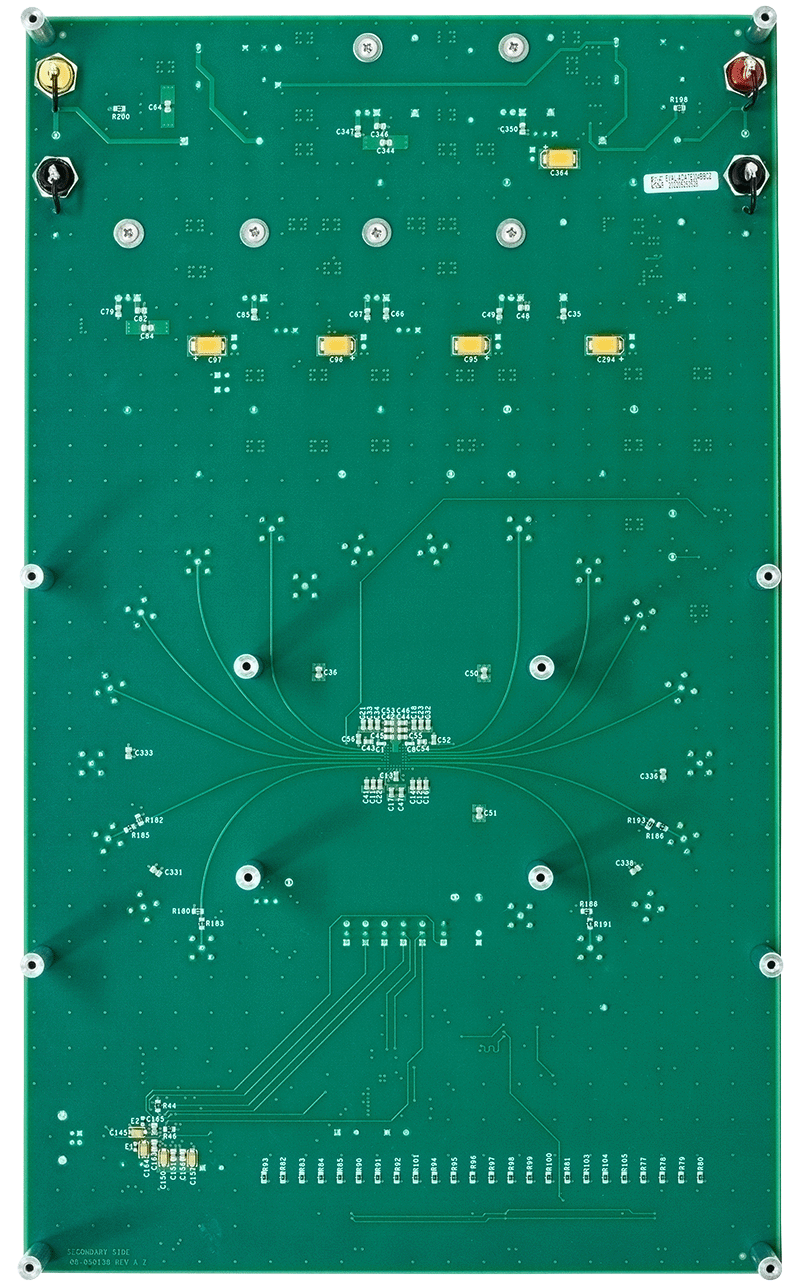

The EVAL-ADATE304BBCZ is a full featured evaluation board designed to allow the user to simply evaluate all features of the ADATE304 dual integrated driver, comparator, and active load (DCL) and four-quadrant per pin parametric measurement unit (PPMU). The EVAL-ADATE304BBCZ features breakout connections through the SMA terminals for all the signal inputs and outputs. The differential pairs are provided with 50 Ω controlled impedance traces with equal lengths.

The EVAL-ADATE304BBCZ only requires two power supplies, +21 V and −10 V. All other voltages required by the device are created by the on-board regulators. The EVAL-ADATE304BBCZ SPI communications are provided by an on-board USB UART chip. SPI jumper connectors allow the user to bypass the UART and connect their own SPI signals for evaluation. The default setup is for control through the USB port. Communication with the ADATE304 evaluation board software is through the USB, and the light emitting diode (LED) indicators on the EVAL-ADATE304BBCZ provide displays for the read and write data.

The ADATE304 data sheet provides full details on all the functionalities of the ADATE304 device, as well as the information on each of the registers within the ADATE304, and must be consulted when using the EVAL-ADATE304BBCZ.

Resources

ADATE304 Bill of Materials
8/24/2023

UG-2130 Evaluating the ADATE304 200 MHz Dual Integrated DCL with Level Setting DACs, Per Pin PMU, and Per Chip VHH (Rev.0)
8/24/2023

Software

ADATE304 Evaluation Board Software
262.17 M
