Features and Benefits

  • Fully integrated VCO/PLL core
    0.54 ps rms jitter from 12 kHz to 20 MHz
    Input crystal frequency of 25 MHz
  • Preset divide ratios for 100 MHz, 33.33 MHz
  • LVDS/LVCMOS output format
  • Integrated loop filter
  • Space saving 4.4 mm × 5.0 mm TSSOP
  • 0.235 W power dissipation
  • 3.3 V operation

Product Details

The AD9573 provides a highly integrated, dual output clock generator function including an on-chip PLL core that is optimized for PCI-e applications. The integer-N PLL design is based on the Analog Devices, Inc., proven portfolio of high performance, low jitter frequency synthesizers to maximize line card performance. Other applications with demanding phase noise and jitter requirements also benefit from this part.

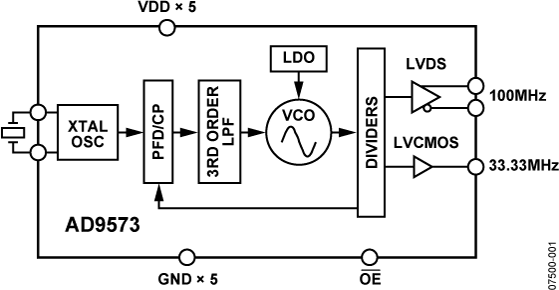

The PLL section consists of a low noise phase frequency detector (PFD), a precision charge pump, a low phase noise voltage controlled oscillator (VCO), and a preprogrammed feedback divider and output divider.

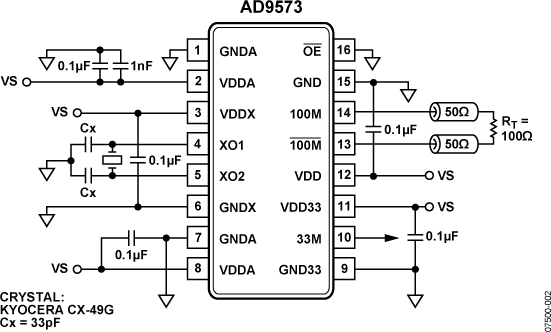

By connecting an external 25 MHz crystal, output frequencies of 100 MHz and 33.33 MHz can be locked to the input reference. The output divider and feedback divider ratios are prepro-grammed for the required output rates. No external loop filter components are required, thus conserving valuable design time and board space.

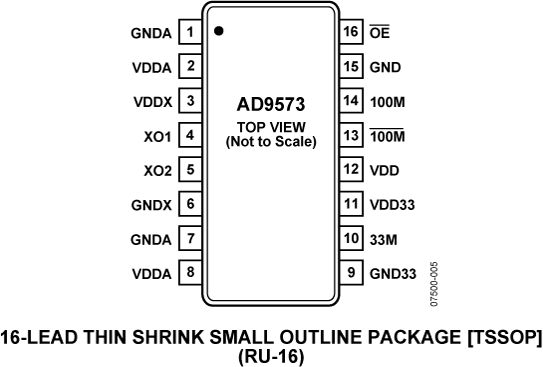

The AD9573 is available in a 16-lead 4.4 mm × 5.0 mm TSSOP and can be operated from a single 3.3 V supply. The temperature range is −40°C to +85°C.


  • Line cards, switches, and routers
  • CPU/PCIe applications
  • Low jitter, low phase noise clock generation

Product Lifecycle icon-recommended Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
