AD8197B

NOT RECOMMENDED FOR NEW DESIGNS

4:1 HDMI/DVI Switch with Equalization

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $6.62

Viewing:

Overview

Pin-to-pin compatible with the AD8197A
Supports 250 Mbps to 2.25 Gbps data rates
Supports 25 MHz to 225 MHz pixel clocks
Equalized inputs allow use of long HDMI cables (20 meters at 2.25 Gbps)
Fully buffered unidirectional inputs/outputs
Per input switchable, 50 Ω on-chip terminations
Switchable output 50 Ω on-chip terminations
Pre-emphasized outputs
Low added jitter
Single-supply operation (3.3 V)

Bidirectional unbuffered inputs/outputs
Flexible supply operation (3.3 V to 5 V)
HDCP standard compatible
Allows switching of DDC bus and 2 additional signals
4 inputs, 1 output HDMI/DVI links
Enables HDMI 1.3-compliant receiver
Output disable feature
Reduced power dissipation
Removable output termination
Allows building of larger arrays
Two AD8197Bs support HDMI/DVI dual link
Standards compatible: HDMI receiver, HDCP, DVI
Serial (I²C slave) and parallel control interface

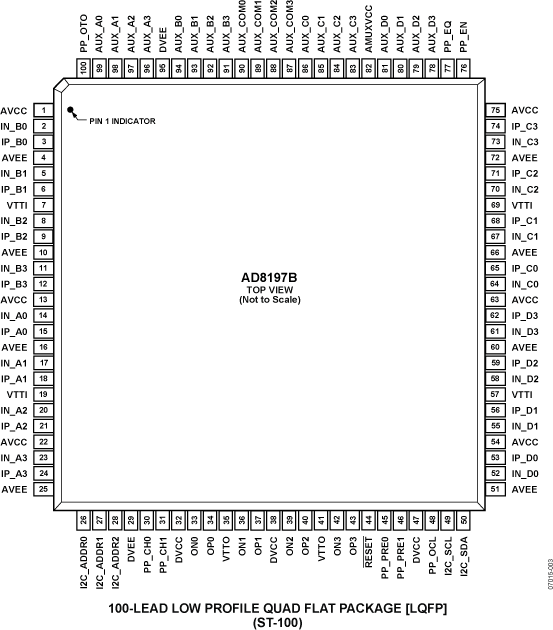

100-lead, 14 mm × 14 mm LQFP, Pb-free package

The AD8197B is an HDMI™/DVI switch featuring equalized TMDS® inputs and pre-emphasized TMDS outputs, ideal for systems with long cable runs. The AD8197B offers individual control of the on/off state of the TMDS input termination resistors via I²C control. Outputs can be set to a high impedance state to reduce the power dissipation and/or to allow the construction of larger arrays using the wire-OR technique.

The AD8197B is provided in a 100-lead LQFP, Pb-free, surface-mount package, specified to operate over the −40°C to +85°C temperature range.

Product Highlights

Supports data rates up to 2.25 Gbps, enabling 1080p deep color (12-bit color) HDMI formats, and greater than UXGA (1600 × 1200) DVI resolutions.
Input cable equalizer enables use of long cables at the input (more than 20 meters of 24 AWG cable at 2.25 Gbps).
Auxiliary switch routes a DDC bus and two additional signals for a single-chip, HDMI 1.3 receive-compliant solution.

Applications

Multiple input displays
Projectors
A/V receivers
Set-top boxes
Advanced television (HDTV) sets

Part Models: 2
1ku List Price: Starting From $6.62
