Features
- 2 inputs, 1 output HDMI/DVI high speed signal switch
- Pin-to-pin compatible with the AD8194
- Enables HDMI 1.3-compliant receiver
- 4 TMDS channels per input/output
- Supports 250 Mbps to 2.25 Gbps data rates
- Supports 25 MHz to 225 MHz pixel clocks
- Fully buffered unidirectional inputs/outputs
- Supports more than 20 m of input cable at 1080i, more than 10 m of input cable at 1080p, and more than 6 meters of input cable at 1080p, 12-bit color
- Matched 50 Ω input and output on-chip terminations
- Low added jitter
- Single-supply operation (3.3 V)
- 4 TMDS channels per input/output
- Standards compliant: HDMI receiver, DVI

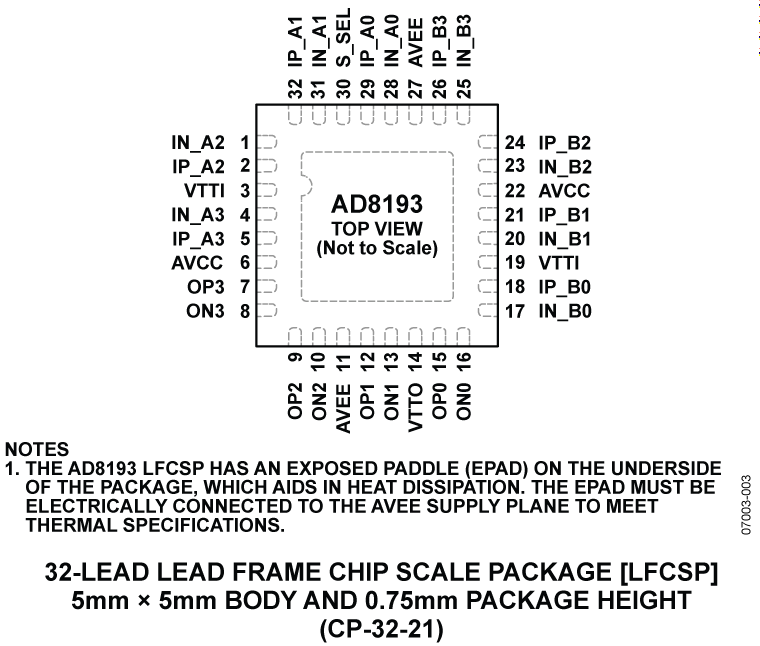

- 32-lead, 5 mm × 5 mm, RoHS-compliant LFCSP
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}
The AD8193 is a low cost quad 2:1 TMDS® switch for high speed HDMI™/DVI video applications. Its primary function is to switch the high speed signals from one of two single-link (HDMI or DVI) sources to the single-link output. The AD8193 is a fully buffered switch solution with 50 Ω input and output terminations, providing full-swing output signal recovery and minimizing reflections for improved system signal integrity.
The AD8193 is provided in a space-saving, 32-lead, LFCSP, surface-mount, RoHS-compliant, plastic package and is specified to operate over the −40°C to +85°C temperature range.
Product Highlights
- Data supports rates up to 2.25 Gbps, enabling greater than 1080p deep color (12-bit color) HDMI formats and greater than UXGA (1600 × 2300) DVI resolutions.
- Fully buffered unidirectional inputs and outputs.
- Supports more than 20 meters of a typical 24 AWG input cable at 1080i, more than 10 meters at 1080p, and more than 6 meters at 1080p, 12-bit color.
- Matched 50 Ω on-chip input and output terminations improve system signal integrity.
- Single-pin source select bit.
- Input terminations are automatically switched out for the unselected input.
- Low added jitter.
Applications
- Advanced television (HDTV) sets
- Multiple input displays
- Projectors
- A/V receivers
- Set-top boxes
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
-
{{newProjectText}}
{{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD8193
Documentation
Filters
1 Applied
-
All
-
Data Sheet
-
Technical Articles
-
All
-
English
Data Sheet
1
Technical Articles
1
URL
Documentation
Data Sheet 1
Technical Articles 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| AD8193ACPZ |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
|
| AD8193ACPZ-R7 |
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
|
|
- AD8193ACPZ
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
- AD8193ACPZ-R7
- Pin/Package Drawing
-
32-Lead LFCSP (5mm x 5mm x 0.75mm w/ EP)
- Documentation
-
HTML
Material Declaration
-
HTML
Reliablity Data
- CAD Symbols, Footprints, and 3D Models
-
Ultra Librarian
-
SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
AD8193ACPZ
Obsolete
AD8193ACPZ-R7
Obsolete
Jul 13, 2016
- 16_0050
ADI Corporate Obsolescence Notice-2016 (Standard Products)
AD8193ACPZ
Obsolete
AD8193ACPZ-R7
Obsolete
Filter by Model
Part Models
Product Lifecycle
PCN
Nov 10, 2014
- 14_0047
Conversion of 5x5mm body Size LFCSP Package Outlines from Punch to Sawn and Transfer of Assembly Site to Amkor Philippines.
AD8193ACPZ
Obsolete
AD8193ACPZ-R7
Obsolete
Jul 13, 2016
- 16_0050
ADI Corporate Obsolescence Notice-2016 (Standard Products)
Software & Part Ecosystem
Evaluation Kits 1
EVAL-AD8193
AD8193 Evaluation Board
