Overview

Features and Benefits

  • Two inputs, one output HDMI/DVI links
  • Enables HDMI 1.2a-compliant receiver
  • Four TMDS channels per link
    Supports 250 Mbps to 1.65 Gbps data rates
    Supports 25 MHz to 165 MHz pixel clocks
    Equalized inputs for operation with long HDMI cables (20 meters at 1080p)
    Fully buffered unidirectional inputs/outputs
  • Globally switchable 50 Ω on-chip terminations
    Pre-emphasized outputs
    Low added jitter
    Single-supply operation (3.3 V)
  • 56-lead, 8 mm × 8 mm, LFCSP, Pb-free package
  • Four auxiliary channels per link
    Bidirectional unbuffered inputs/outputs
    Flexible supply operation (3.3 V to 5 V)
    HDCP standard compatible
    Allows switching of DDC bus and two additional signals
  • Output disable feature
    Reduced power dissipation
    Output termination removal
  • Two AD8190s support HDMI/DVI dual-link
  • Standards compliant: HDMI receiver, HDCP, DVI
  • Serial (12C slave) control interface

Product Details

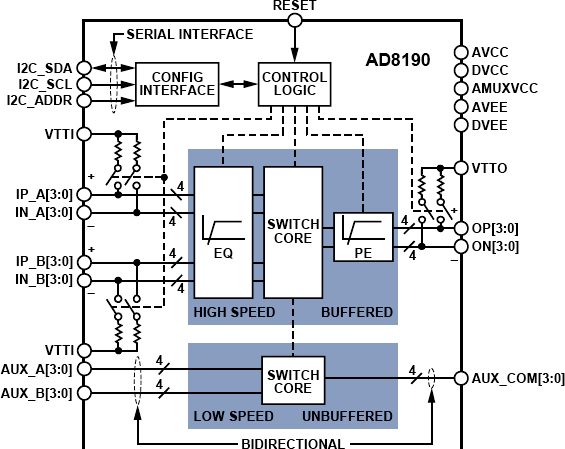

The AD8190 is an HDMI/DVI switch featuring equalized TMDS inputs and pre-emphasized TMDS outputs, ideal for systems with long cable runs. Outputs can be set to a high impedance state to reduce the power dissipation and/or allow the construction of larger arrays using the wire-OR technique.

The AD8190 is provided in a space saving, 56-lead, LFCSP, surface-mount, Pb-free, plastic package and is specified to operate over the -40°C to +85°C temperature range.
