AD5560

PRODUCTION

1.2A Programmable Device Power Supply with Integrated 16-bit Level Setting DACs

Data Sheet (Rev. F) Product Selection Table

Part Models: 4
1ku List Price: price unavailable

Viewing:

Overview

Programmable device power supply (DPS)

FV, MI, MV, FNMV functions

5 internal current ranges (on-chip R_SENSE)

±5 μA, ±25 μA, ±250 μA, ±2.5 mA, ±25 mA

2 external high current ranges (external R_SENSE)
- EXTFORCE1: ±1.2 A maximum
- EXTFORCE2: ±500 mA maximum
Integrated programmable levels
- All 16-bit DACs: force DAC, comparator DACs, clamp DACs, offset DAC, OSD DAC, DGS DAC
Programmable Kelvin clamp and alarm
Offset and gain correction registers on-chip
Ramp mode on force DAC for power supply slewing
Programmable slew rate feature, 1 V/μs to 0.3 V/μs
DUTGND Kelvin sense and alarm

25 V FV span with asymmetrical operation within −22 V/+25 V
On-chip comparators
Gangable for higher current
Guard amplifier
System PMU connections
Current clamps
Die temperature sensor and shutdown feature
On-chip diode thermal array
Diagnostic register allows access to internal nodes
Open-drain alarm flags (temperature, current clamp, Kelvin alarm)
SPI-/MICROWIRE-/DSP-compatible interface

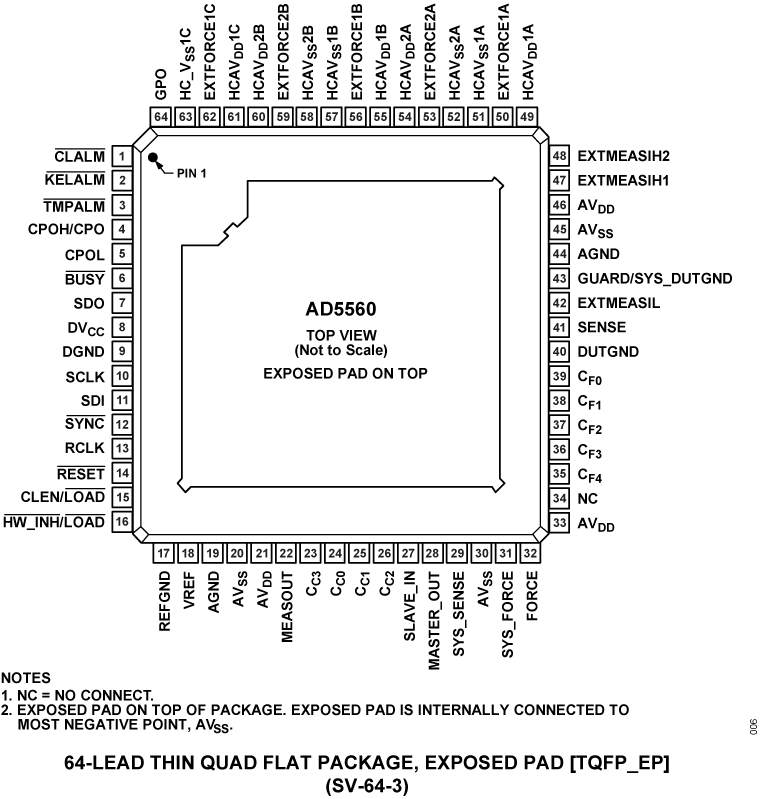

64-lead (10 mm × 10 mm) TQFP with exposed pad (on top)

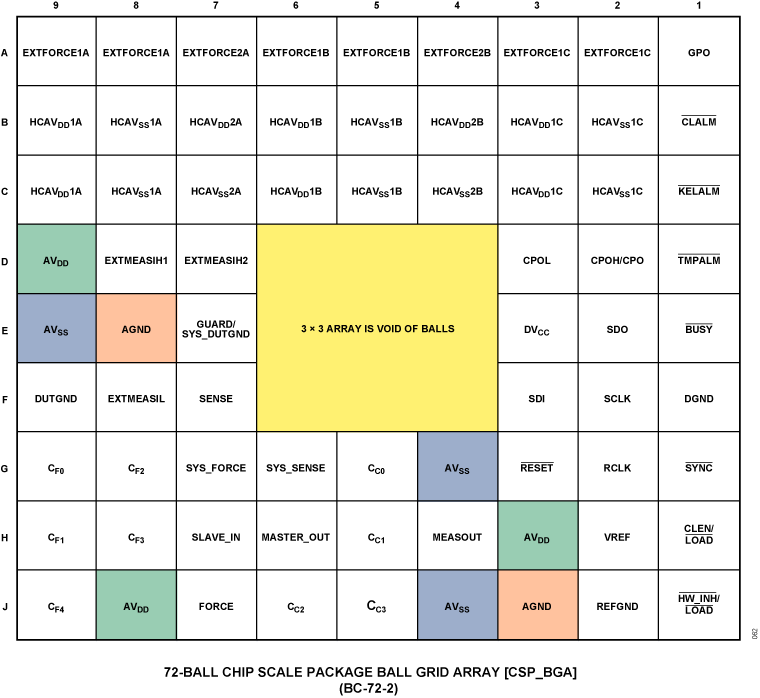

72-ball (8 mm × 8 mm) flip-chip BGA

The AD5560 is a high performance, highly integrated device power supply consisting of programmable force voltages and measure ranges. This part includes the required DAC levels to set the programmable inputs for the drive amplifier, as well as clamping and comparator circuitry. Offset and gain correction is included on-chip for DAC functions. A number of programmable measure current ranges are available: five internal fixed ranges and two external customer-selectable ranges (EXTFORCE1 and EXTFORCE2) that can supply currents up to ±1.2 A and ±500 mA, respectively. The voltage range possible at this high current level is limited by headroom and the maximum power dissipation. Current ranges in excess of ±1.2 A or at high current and high voltage combinations can be achieved by paralleling or ganging multiple DPS devices. Open-drain alarm outputs are provided in the event of overcurrent, overtemperature, or Kelvin alarm on either the SENSE or DUTGND line.

The DPS functions are controlled via a simple 3-wire serial interface compatible with SPI, QSPI^™, MICROWIRE^™, and DSP interface standards running at clock speeds of up to 50 MHz.

APPLICATIONS

Automatic test equipment (ATE)
- Device power supply

Part Models: 4
1ku List Price: price unavailable

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5560JBCZ	72-Ball CSPBGA (8mm x 8mm x 1.4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5560JBCZ-REEL	72-Ball CSPBGA (8mm x 8mm x 1.4mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5560JSVUZ	64-Lead TQFP (10mm x 10mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5560JSVUZ-REEL	64-Lead TQFP (10mm x 10mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Mar 9, 2015 - 14_0249 Assembly Transfer of Select CSP_BGA Products to STATS ChipPAC Korea Plant 3
		PCN14_0249_Form Material_Report Detailed Change Description Qualification Results Summary
AD5560JBCZ	PRODUCTION
AD5560JBCZ-REEL	PRODUCTION
Mar 15, 2016 - 14_0258 Assembly Transfer of Selected 14x14 LQFP, 14x14 LQFP_EP and 7x7,10x10,12x12,14x14 TQFP_EP Products to Amkor Philippines
		PCN14_0258_Form Detailed Parts List Material_Report Qualification Results Summary Qualification Results Summary Qualification Results Summary Qualification Results Summary Detailed Change Description Qualification Results Summary Qualification Results Summary
AD5560JSVUZ	PRODUCTION
AD5560JSVUZ-REEL	PRODUCTION
Jun 16, 2009 - 09_0027 Conversion to Laser Mark for the LQFP Packages (Single Grades)
		adi48lqfp Form Material_Report
AD5560JSVUZ	PRODUCTION
AD5560JSVUZ-REEL	PRODUCTION
Apr 29, 2009 - 09_0067 AD5560JSVUZ Datasheet Specification Change
		Form Material_Report
AD5560JSVUZ	PRODUCTION	Form Material_Report
Dec 19, 2008 - 08_0170 AD5560JSVUZ Data Sheet Specification Change
		AD5560_REV_A Form Material_Report
AD5560JSVUZ	PRODUCTION	AD5560_REV_A Form Material_Report

This is the most up-to-date revision of the Data Sheet.

Evaluation Kits

AD5560 Evaluation Board

Buy Now View Details

Product Details

The EVAL-AD5560EBUZ is a fully featured evaluation board for the AD5560. This board operates in stand alone mode or in conjunction with a USB to PC interface. When operated with the USB to PC interface, software is provided enabling the user to perform control of the PMU channels in addition to measurement of the different voltage and current parameters via the on board AD7685 ADC. AD5560 Die temperature measurement is also available via the on-board ADT7461 temperture sensor. This software includes the technical note describing the operation and set up of the EVAL-AD5560EBUZ board.
