AD5520

PRODUCTION

Per-pin Parametric Measurement Unit / Source Measure Unit

Data Sheet (Rev. B) Product Selection Table

Part Models: 1
1ku List Price: Starting From $26.61

Viewing:

Overview

Force Voltage, Measure Current and Force Current, Measure Voltage functions
Output Voltage Range: ±11 V
Four Programmable Force/Measure Current Ranges: ±4 µA, ±40 µA, ±400 µA, ±4 mA

Measured Voltage Range: ±11 V
Extended Current Ranges: ±40 mA and ±160 mA with External Driver
Clamp Circuitry and Window Comparators On Board

The AD5520 is a single channel Per pin Parametric Measurement Unit (PPMU) for use in semiconductor automatic test equipment and precision measurement instruments. It contains programmable modes to force a pin voltage and measure the corresponding current or force a current and measure the voltage. The PPMU can force a voltage from -11 V to +11 V or currents up to ±4 mA. The device provides a force sense capability to ensure accuracy at the tester pin. A guard output is also available to drive the shield of a force/sense pair.

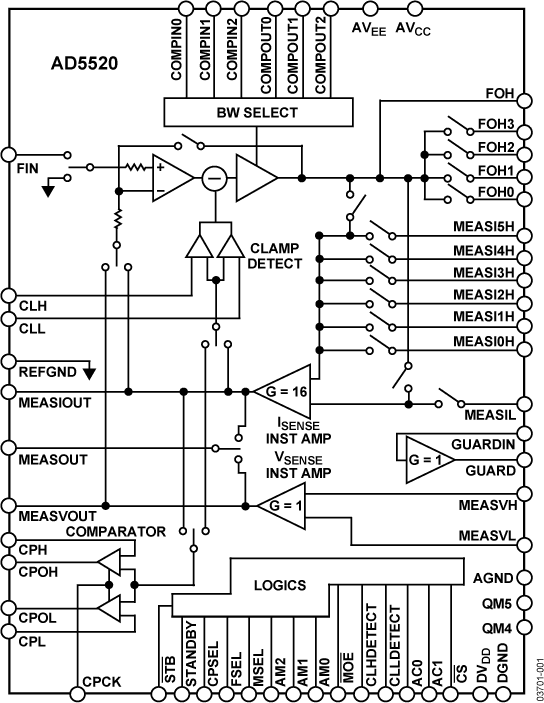

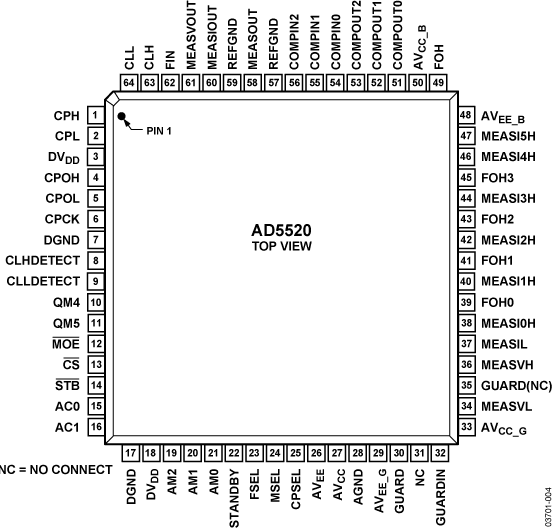

The AD5520 is available in a 64-lead LQFP package.

Part Models: 1
1ku List Price: Starting From $26.61

Documentation

Data Sheet 1

AD5520: Per Pin Parametric Measurement Unit/Source Measure Unit Data Sheet (Rev.B) 09/01/2003

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5520JSTZ	64-Lead LQFP (10mm x 10mm)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 8, 2010 - 04_0080 Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.
		PCN04_0080_Form Material_Report Reliability Report Reliability Report
AD5520JSTZ	PRODUCTION
Jan 5, 2009 - 07_0077 Certification of STATSChipPAC Shanghai, China and AMKOR Philippines as additional sources for Assembly & Test of QFP Packages
		07_0077Rev D_LQFP_Dec17 07_0077Rev D_MQFP_Dec15 07_0077Rev D_Obsolesence_Dec15 07_0077Rev D_TQFP_Dec15 Material_Report PCN07_0077_Form QFP Transfer Qualification Results-tests_DEC12CL
AD5520JSTZ	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Evaluation Software 1

AD5520 Evaluation Software

AD5520 Evaluation Software (Rev. )

Evaluation Kits

AD5520 Evaluation Board

Buy Now View Details

Product Details

The EVAL-AD5520EBZ is a fully featured evaluation board for the AD7276. This board operates in stand alone mode or in conjunction with a printer port to PC connection. When operated with the Printer port, software is provided enabling the user to control the AD5520 device. This software includes the technical note describing the operation and set up of the EVAL-AD5520EBZ board.
