AD3306

RECOMMENDED FOR NEW DESIGNS

Robust, Automotive, Low Power 10BASE-T1S MAC-PHY

Data Sheet (Rev. SpB) Product Selection Table
Viewing:

Overview

  • 10BASE-T1S PHY operating modes
    • Point-to-point half-duplex (≥ 15 m)
    • Multidrop configuration half-duplex (≥ 25 m, ≥ 8 nodes)
  • PLCA features: PLCA coordinator (head node), burst mode, precedence mode, and multiple PLCA IDs
  • MAC Features
    • OPEN Alliance 10BASE-T1x MAC-PHY serial interface with cut through or store and forward operation
    • Transmit priority queues
    • 16 MAC address filters
  • IEEE 802.1AS / IEEE 1588 support for microcontrollers without TSN support using the gPTP for sensor timestamping and actuator synchronization
  • OPEN Alliance features sleep/wake-up, topology discovery, and advanced diagnostics
    • Enable output pin (EN) to power down the regulated supply inputs in sleep mode
    • Support for local (WAKE input pin) and network (wake-up pulse) wake
    • Suitable for 12 V, 24 V, 48 V automotive electrical systems or operating from 5 V levels only
    • Detection capability for over voltage and under voltage events when monitoring the VBAT pin
  • SSC for handling fault conditions
  • Low-current 3.3 V LDO using the LVDD pin as an output
  • Compatible with power delivery over data cable
  • Provides robust EMC/EMI performance
    • Low cost bus interface network with no external ESD components required
    • Enhanced noise immunity providing additional performance for noisy environments
  • Low power consumption: maximum current of 50 mA in functional modes of operation and 40 μA in sleep mode
  • 1.8 V to 3.3 V I/O logic levels with support for 5 V inputs
  • −40°C to +150°C junction temperature range
  • Small package: 4 mm x 4 mm 24-lead LFCSP (QFN) package
  • AEC-Q100 qualified for automotive applications

Applications

  • Automotive internal and external lighting
  • Automotive body and chassis domain control
  • Automotive sensor and actuator networking
  • Automotive Ethernet based zonal architectures
  • Automotive in-vehicle networking
AD3306
Robust, Automotive, Low Power 10BASE-T1S MAC-PHY

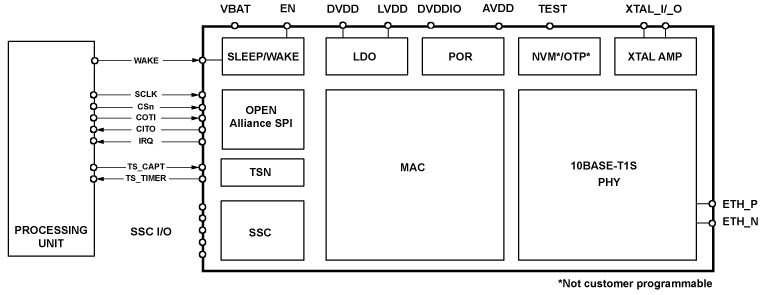

AD3306 Functional Block Diagram
