DS28E84

DeepCover Radiation Resistant, High-Capacity 1-Wire Secure Authenticator

Provides Affordable Elliptic-Curve Public-Key Authentication Security to Protect Your Medical Devices

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High Radiation Resistance Allows User-Programmable Manufacturing or Calibration Data Before Medical Sterilization
- Resistant Up to 50kGy (kiloGray) of Radiation
- 10kb of One Time Programmable (OTP) for User Data, Keys, and Certificates
- 15Kb of Secure FRAM for User Data and Certificates
ECC-P256 Compute Engine
- FIPS 186 ECDSA P256 Signature and Verification
- ECDH Key Exchange for Session Key Establishment
- ECDSA Authenticated R/W of Configurable Memory
SHA-256 Compute Engine
- FIPS 180 MAC for Secure Download/Boot
- FIPS 198 HMAC for Bidirectional Authentication and Optional GPIO Control
SHA-256 OTP (One-Time Pad) Encrypted R/W of Configurable Memory Through ECDH Established Key
One GPIO Pin with Optional Authentication Control
- Open-Drain, 4mA/0.4V
- Optional SHA-256 or ECDSA Authenticated On/Off and State Read
- Optional ECDSA Certificate to Set On/Off After Multiblock Hash for Secure Download
TRNG with NIST SP 800-90B Compliant Entropy Source with Function to Read Out
Optional Chip Generated Pr/Pu Key Pairs for ECC Operations or Secrets for SHA256 Functions
17-Bit One-Time Settable, Nonvolatile Decrement-Only Counter with Authenticated Read
Unique and Unalterable Factory Programmed 64-Bit Identification Number (ROM ID)
- Optional Input Data Component to Crypto and Key Operations
Advanced 1-Wire Protocol Minimizes Interface to Just Single Contact
Operating Range: 3.3V ±10%, 0°C to +50°C
±8kV HBM ESD Protection of 1-Wire IO Pin
6-Pin, 3mm x 3mm TDFN

Product Details

The DS28E84 is a radiation-resistant secure authenticator that provides a core set of cryptographic tools derived from integrated asymmetric (ECC-P256) and symmetric (SHA-256) security functions. In addition to the security services provided by the hardware implemented crypto engines, the device integrates a FIPS-compatible true random number generator (TRNG), 10Kb of secured OTP, 15Kb of FRAM, one configurable GPIO, and a unique 64-bit ROM identification number (ROM ID).

The ECC public/private key capabilities operate from the NIST defined P-256 curve and include FIPS 186-compliant ECDSA signature generation and verification to support a bidirectional asymmetric key authentication model. The SHA-256 secret key capabilities are compliant with FIPS 180 and are flexibly used either in conjunction with ECDSA operations or independently for multiple HMAC functions.

The GPIO pin can be operated under command control and include configurability supporting authenticated and nonauthenticated operation, including an ECDSA-based crypto-robust mode to support secure boot of a host processor.

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced security to provide the most secure key storage possible. To protect against device-level security attacks, invasive and noninvasive countermeasures are implemented including active die shield, encrypted storage of keys, and algorithmic methods.

Applications

Accessory and Peripheral Secure Authentication
Medical Consumables Secure Authentication
Medical Tools/Accessories Identification and Calibration
Secure Boot or Download of Firmware and/or System Parameters
Secure Storage of Cryptographic Keys for Host Controllers

Product Categories

Embedded Security and 1-Wire
- 1-Wire Secure Authenticators
- Secure Authenticators

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

DS28E84EVKIT

Evaluation Kit for the DS28E84 and DS2476

DS9481P-300

USB-to-1-Wire/I²C Adapter

DS28E84EVKIT

View Detailed Evaluation Kit Information

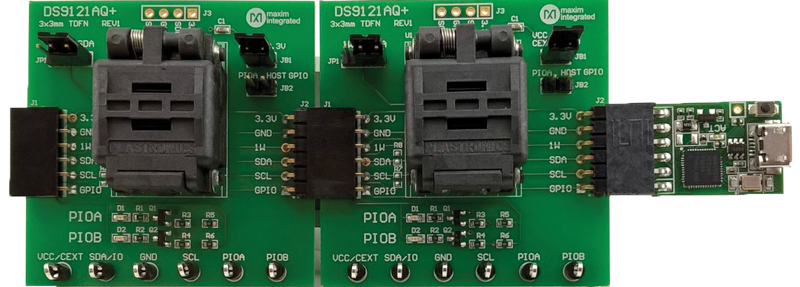

The DS28E84 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28E84. The EV system consists of five DS28E84/DS2476 devices in a 6-pin TDFN package, two DS9121AQ+ evaluation TDFN socket boards, and a DS9481P-300# USB-to-I²C/1-Wire^® adapter. The evaluation software runs under Windows^® 10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. It provides a handy user interface to exercise the features of the DS28E84 and DS2476.
