DS28E83

DeepCover Radiation Resistant 1-Wire Secure Authenticator

Provides Affordable Elliptic-Curve Public-Key Authentication Security to Protect Your Medical Devices

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

High Radiation Resistance Allows User-Programmable Manufacturing or Calibration Data Before Medical Sterilization
- Resistant Up to 75kGy (kiloGray) of Radiation
- One Time Programmable (OTP) 10kb of User Data, Keys, and Certificates
ECC-P256 Compute Engine
- FIPS 186 ECDSA P256 Signature and Verification
- ECDH Key Exchange for Session Key Establishment
- ECDSA Authenticated R/W of Configurable Memory
SHA-256 Compute Engine
- FIPS 180 MAC for Secure Download/Boot
- FIPS 198 HMAC for Bidirectional Authentication and Optional GPIO Control
SHA-256 OTP (One-Time Pad) Encrypted R/W of Configurable Memory Through ECDH Established Key
One GPIO Pin with Optional Authentication Control
- Open-Drain, 4mA/0.4V
- Optional SHA-256 or ECDSA Authenticated On/Off and State Read
- Optional ECDSA Certificate to Set On/Off After Multiblock Hash for Secure Download
TRNG with NIST SP 800-90B Compliant Entropy Source with Function to Read Out
Optional Chip Generated Pr/Pu Key Pairs for ECC Operations or Secrets for SHA256 Functions
Unique and Unalterable Factory Programmed 64-Bit Identification Number (ROM ID)
- Optional Input Data Component to Crypto and Key Operations
Advanced 1-Wire Protocol Minimizes Interface to Just Single Contact
Operating Range: 3.3V ±10%, 0°C to +50°C
±8kV HBM ESD Protection of 1-Wire IO Pin
6-Pin TDFN and 2-Pin SFN

Product Details

The DS28E83 is a radiation-resistant secure authenticator that provides a core set of cryptographic tools derived from integrated asymmetric (ECC-P256) and symmetric (SHA-256) security functions. In addition to the security services provided by the hardware implemented crypto engines, the device integrates a FIPS-compatible true random number generator (TRNG), 10Kb of secured OTP, one configurable GPIO, and a unique 64-bit ROM identification number (ROM ID).

The ECC public/private key capabilities operate from the NIST defined P-256 curve and include FIPS 186-compliant ECDSA signature generation and verification to support a bidirectional asymmetric key authentication model. The SHA-256 secret key capabilities are compliant with FIPS 180 and are flexibly used either in conjunction with ECDSA operations or independently for multiple HMAC functions.

The GPIO pin can be operated under command control and include configurability supporting authenticated and nonauthenticated operation, including an ECDSA-based crypto-robust mode to support secure boot of a host processor.

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced security to provide the most secure key storage possible. To protect against device-level security attacks, invasive and noninvasive countermeasures are implemented including active die shield, encrypted storage of keys, and algorithmic methods.

APPLICATIONS

Medical Consumables Secure Authentication
Medical Tools/Accessories Identification and Calibration
Accessory and Peripheral Secure Authentication
Secure Storage of Cryptographic Keys for Host Controllers
Secure Boot or Download of Firmware and/or System Parameters

Product Categories

Embedded Security and 1-Wire
- 1-Wire Secure Authenticators
- Secure Authenticators

Markets and Technologies

Healthcare (2)
- Insulin Pump
- Diabetes Technology

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (2)

DS28E83EVKIT

Evaluation Kit for the DS28E83/DS2476

DS9481P-300

USB-to-1-Wire/I²C Adapter

DS28E83EVKIT

View Detailed Evaluation Kit Information

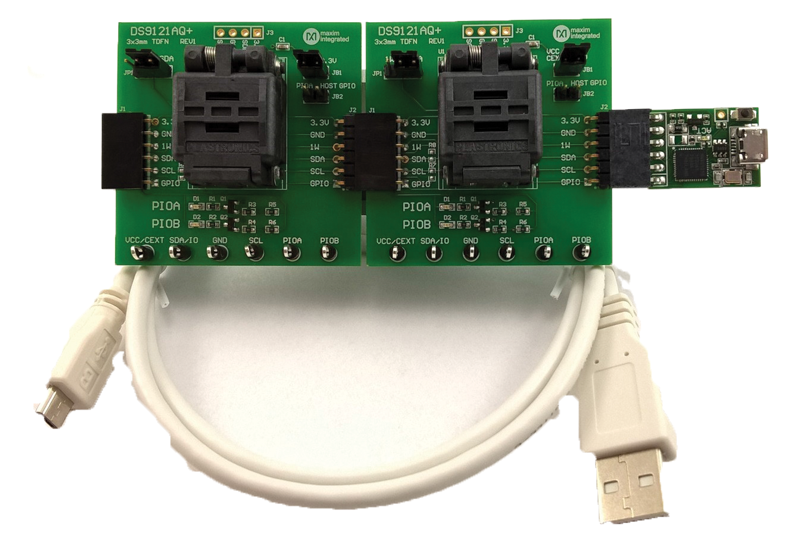

The DS28E83 evaluation system (EV system) provides the hardware and software necessary to exercise the features of the DS28E83. The EV system consists of five DS28E83/ DS2476 devices in a 6-pin TDFN package, a DS9121AQ+ evaluation TDFN socket board, and a DS9481P-300# USB-to-I²C/1-Wire^® adapter. The evaluation software runs under Windows^® 10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. It provides a handy user interface to exercise the features of the DS28E83 and DS2476.

Applications

Accessory and Peripheral Secure Authentication
Medical Consumables Secure Authentication
Medical Tools/Accessories Identification and Calibration
Secure Boot or Download of Firmware and/or System Parameters
Secure Storage of Cryptographic Keys for Host Controllers

Features & Benefits

Demonstrates the Features of the DS28E83 DeepCover^® Radiation Resistant 1-Wire Authenticator
Demonstrates the Features of the DS2476 DeepCover Secure Coprocessor
1-Wire/I²C Communication Is Logged to Aid Firmware Designers Understanding of DS28E83 and DS2476
1-Wire/I²C USB Adapter Creates a Virtual COM Port on Any PC
Fully Compliant with USB Specification v2.0
Software Runs on Windows 10, Windows 8, and Windows 7 for Both 64-Bit and 32-Bit Versions
3.3V ±3% 1-Wire Operating Voltage
Convenient On-Board Test Points, TDFN Socket
Evaluation Software Available by Request

DS9481P-300

View Detailed Evaluation Kit Information

The DS9481P-300 is a USB-to-1-Wire^®/I²C adapter for easy PC connectivity to 1-Wire and I²C devices. The adapter provides a 6-pin female connector with the signals to communicate with 1-Wire and I²C devices that support a 3.3V data I/O level. The DS9481P-300 driver runs on Windows^®10, Windows 8, and Windows 7 operating systems, both 64-bit and 32-bit versions. The virtualized COM port provides a convenient communication interface.

Features & Benefits

Driver Support for Windows 10, Windows 7Operating Systems
1-Wire/I²C USB Adapter Creates a Virtual COM Porton Windows, Linux, and Mac Operating Systems
Emulates the DS2480B Command Set
3.3V Read/Write Operation to 1-Wire
Supports Standard and Overdrive 1-WireCommunication
Strong Pullup to 3.3V Provides the Additional CurrentRequired for 1-Wire EEPROM, EnvironmentalSensors, and Cryptographic Devices
1-Wire Active Pullup Accommodates Long Lines
3.3V I²C Operation with SDA and SCL Pullups
Supports I²C Speeds of 100kHz and 400kHz
6-Pin Female Interface
Fully Compliant with USB Specification v2.0
