DS2465

DeepCover Secure Authenticator with SHA-256 Coprocessor and 1-Wire Master Function

Advanced Physical Security Protects System Secret, Offloads Host SHA-256 Computing

Buy Now

Recommended for New Designs

Top

Overview

Features and Benefits
Product Details

Features and Benefits

SHA-256 Engine to Operate a Symmetric-Key-Based Bidirectional Secure Authentication Model
Two 32-Byte Pages of User EEPROM with Multiple Programmable Protection Options
1-Wire Master Port with Selectable Active or Passive 1-Wire Pullup
Strong 1-Wire Pullup Provided by an Internal Low-Impedance Signal Path
1-Wire Port Can Be Powered Down Under Software Control
I²C Operating (Pullup) Voltage: 3.3V ±10%
±8kV ESD Protection on IO to GND (JESD22-A114 HBM, Typical)
Operating Range: 3.3V ±10%, -40°C to +85°C
6-Pin TSOC Package

Product Details

DeepCover^® embedded security solutions cloak sensitive data under multiple layers of advanced physical security to provide the most secure key storage possible.

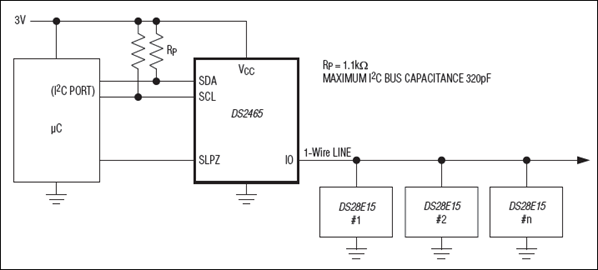

The DeepCover Secure Authenticator (DS2465) is a SHA-256 coprocessor with built-in 1-Wire^® master that provides the SHA-256 and memory functionality required by a host system to communicate with and operate a 1-Wire SHA-256 slave. In addition, it performs protocol conversion between the I²C master and any attached 1-Wire SHA-256 slaves. For 1-Wire line driving, internal user-adjustable timers relieve the system host processor from generating time-critical 1-Wire waveforms, supporting both standard and overdrive 1-Wire communication speeds. The 1-Wire line can be powered down under software control. Strong pullup features support 1-Wire power delivery to 1-Wire devices such as EEPROMs. When not in use, the DS2465 can be put in sleep mode where power consumption is minimal.

A DS2465 evaluation board is included in each of the authenticator evaluation kits below.

Applications

Authentication of Consumables
Secure Feature Control

Product Categories

Embedded Security and 1-Wire

Complete documentation is available upon completion of a Non-Disclosure Agreement (NDA). To request an NDA, click here.

Comparable Parts Click to see all in Parametric Search

Product Lifecycle Recommended for New Designs

This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.

Evaluation Kits (3)

DS28E22EVKIT

Evaluation System for the DS28E22 and DS2465

DS28E15EVKIT

Evaluation System for the DS28E15 and DS2465

DS28E25EVKIT

Evaluation System for the DS28E25 and DS2465

DS28E22EVKIT

View Detailed Evaluation Kit Information

The DS28E22 evaluation system (EV system) provides the hardware and software necessary to evaluate and program the DS28E22 DeepCover^® Secure Authenticator. EV system operation requires a host PC for user-friendly evaluation.

This evaluation system includes a DS9400 USB-to-I²C PC adapter, a DS2465 EV board, a DS9120Q+ evaluation socket board for a TDFN DS28E22, and five DS28E22 sample devices in a TDFN package. The EV software runs on Windows^® 8, Windows 7, Windows Vista^®, and Windows XP^® operating systems. Detailed instructions for downloading and installing software, as well as general EV system operation are included in the EV system data sheet; software and documentation are available at the link above.

Note: The DS2465 EV board and DS9400# subcomponents are not available for direct sale outside of evaluation systems. A data sheet specific to DS9400# is not available.

Features & Benefits

EV Kit Contains
- Five DS28E22 Devices in a TDFN-EP Package
- One USB-to-I²C PC Adapter (DS9400#) Provides PC Connection
- DS2465EVKIT# Evaluation Board Provides 1-Wire Interface and SHA-256 Coprocessor
- One EV Board (DS9120Q+) with TDFN-EP Socket Provides Easy Chip Evaluation
USB-to-I²C Module Contains Prolific PL-2303HXD USB-to-UART Chip
- Enumerates as a Virtual PC COM Port
- Windows-Certified Logo USB Device Driver Available
- Standard USB Cable Interface
EV Board Contains Convenient On-Board Test Points
Evaluation Software Will Be Provided Along with Full Evaluation Kit Data Sheet

DS28E15EVKIT

View Detailed Evaluation Kit Information

The DS28E15 evaluation system (EV system) provides the hardware and software necessary to evaluate and program the DS28E15 DeepCover^® Secure Authenticator. EV system operation requires a host PC for user-friendly evaluation.

This evaluation system includes a DS9400 USB-to-I²C PC adapter, a DS2465 EV board, a DS9120Q+ evaluation socket board for a TDFN DS28E15, and five DS28E15 sample devices in a TDFN package. The EV software runs on Windows^® 8, Windows 7, Windows Vista^®, and Windows XP^® operating systems. Detailed instructions for downloading and installing software, as well as general EV system operation are included in the EV system data sheet; software and documentation are available at the link above.

Note: The DS2465 EV board and DS9400# subcomponents are not available for direct sale outside of evaluation systems. A data sheet specific to DS9400# is not available.

Features & Benefits

Complete EV System:
- Five DS28E15 ICs in TDFN-EP Package
- One USB-to-I²C Adapter (DS9400#) Provides PC Connection
- DS2465EVKIT# EV Board Provides 1-Wire Interface and SHA-256 Coprocessor
- One EV Board (DS9120Q+) with TDFN-EP Socket Provides Easy Chip Evaluation
USB-to-I²C Module Contains Prolific PL-2303HXD USB-to-UART Chip
- Enumerates as a Virtual PC COM Port
- Windows Certified Logo USB Device Driver Available
- Standard USB Cable Interface
EV Board Contains Convenient On-Board Test Points
Evaluation Software Will Be Provided Along with Full Evaluation Kit Data Sheet

DS28E25EVKIT

View Detailed Evaluation Kit Information

The DS28E25 evaluation system (EV system) provides the hardware and software necessary to evaluate and program the DS28E25 DeepCover^® Secure Authenticator. EV system operation requires a host PC for user-friendly evaluation.

This evaluation system includes a DS9400 USB-to-I²C PC adapter, a DS2465 EV board, a DS9120Q+ evaluation socket board for a TDFN DS28E25, and five DS28E25 sample devices in a TDFN package. The EV software runs on Windows^® 8, Windows 7, Windows Vista^®, and Windows XP^® operating systems. Detailed instructions for downloading and installing software, as well as general EV system operation are included in the EV system data sheet; software and documentation are available at the link above.

Note: The DS2465 EV board and DS9400# subcomponents are not available for direct sale outside of evaluation systems. A data sheet specific to DS9400# is not available.

Features & Benefits

EV Kit Contains
- Five DS28E25 Devices in a TDFN-EP Package
- One USB-to-I²C PC Adapter (DS9400#) Provides PC Connection
- DS2465EVKIT# Evaluation Board Provides 1-Wire Interface and SHA-256 Coprocessor
- One EV Board (DS9120Q+) with TDFN-EP Socket Provides Easy Chip Evaluation
USB-to-I²C Module Contains Prolific PL-2303HXD USB-to-UART Chip
- Enumerates as a Virtual PC COM Port
- Windows-Certified Logo USB Device Driver Available
- Standard USB Cable Interface
EV Board Contains Convenient On-Board Test Points
Evaluation Software Will Be Provided Along with Full Evaluation Kit Data Sheet

Documentation & Resources

Data Sheets

DS2465: DeepCover Secure Authenticator with SHA-256 Coprocessor and 1-Wire Master Function Data Sheet (Rev. 3)
9/27/2013

PDF

1M

Reliability Data

DS2465 Reliability Data
1/12/2023

PDF

24K

User Guides

UG-6296: MAXREFDES143# Quick Start Guide
7/6/2016

PDF

3M

Application Notes

Implement Heightened Security with a SHA-256 Master/Slave Authentication System
7/10/2014

Design Notes

Technical Articles

NEW
Choosing the Right 1-Wire Master for the Embedded Applications
3/21/2023
NEW
Choosing the Right 1-Wire Master for the Embedded Applications
2/6/2023
Secure 3D Printing - the New Disruptive Technology - and Watch the Market Grow
4/22/2015
Hardware Security ICs Offer Large Security Returns at a Low Cost
7/31/2013
Uptime Protects the Bottom Line
5/30/2013
Easily Add Memory, Security, Monitoring, and Control to Medical Sensors and Consumables
5/10/2010
Protect Your R&D Investment with Secure Authentication
12/22/2005

Tools & Simulations

IBIS Models

IBS

649.19K

DS2465 IBIS Model

Design Tools

DeepCover® Security Lab

Reference Designs (1)

MAXREFDES143

MAXREFDES143#: DeepCover Embedded Security in IoT Authenticated Sensing and Notification

MAXREFDES143

MAXREFDES143#: DeepCover Embedded Security in IoT Authenticated Sensing and Notification

MAXREFDES143

MAXREFDES143#: DeepCover Embedded Security in IoT Authenticated Sensing and Notification

View Detailed Reference Design Information

Features & Benefits

Features

SHA-256 authentication
Unique secret for each node in the system
DeepCover^® secure key storage
1-Wire/I²C/Wi-Fi interfaces
Example source code
mbed shield equivalent to Arduino form factor pinout
Pmod^™-compatible protected sensor node

Competitive Advantages

Crypto-strong authentication
No need for secure key storage memory on processor
Low overhead performance for signed data between the web server and the mbed platform

Parts Used

Resources

MAXREFDES143 Design Files

ZIP

3.36 M
