5B45
ObsoleteIsolated Frequency Input 0 to 10 kHz Input Signal Conditioning Module
Part Details
- Accepts Frequency Input
- Tachometer Applications
- 500Hz to 25KHz Input (TTL or Zero Crossing)
- 0-5V Output

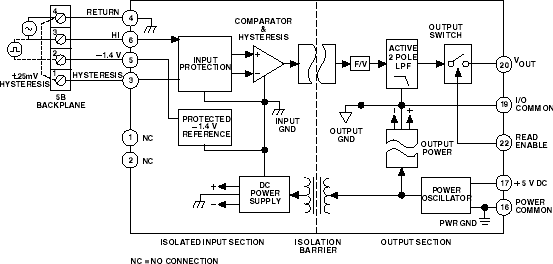

Models 5B45 and 5B46 are precision isolated 500 Hz to 250 kHz frequency-to-voltage converters that feature excellent high accuracy of ±0.1% max. They accept virtually any TTL level or zero crossing input signal waveform (sine wave, square wave, pulse train or triangular). Both models offer 240 V rms input protection and 1,500 V rms input-to-output isolation in the industry standard 5B Series encapsulated plug-in modular package.
Sales and Service: North America (SCS Embedded Tech), Rest of World
Documentation
Data Sheet 1
User Guide 1
Application Note 5
Informational 2
This is the most up-to-date revision of the Data Sheet.
