1B51

Obsolete

Isolated mV/Thermocouple Signal Conditioner

Data Sheet (Rev. 0)
Viewing:

Overview

  • Functionally Complete Precision Conditioner
  • High Accuracy
    Low Input Offset Tempco: ±0.1µ/°C
    Low Nonlinearity: ±0.025%
    High CMV: 160dB (60Hz, G=1000V/V)
  • 240V rms Input Protection
  • Small Package: 1.0"x2.1"x0.35" DIP
  • Isolated Power
  • Low Pass Filter (fc=3Hz)
  • Pin Compatible with 1B41 Isolated RTD Conditioner

The 1B51 is a precision, mV/thermocouple signal conditioner that incorporates a circuit design utilizing transformer based isolation and automated surface mount manufacturing technology. It provides an unbeatable combination of versatility and performance in a compact plastic package. Designed for measurement and control applications, it is specially suited for harsh environments with extremely high common-mode interference. Unlike costlier solutions that require separate dc/dc converters, each 1B51 generates its own input side power, providing true, low cost channel-to channel isolation.

Applications
  • Multichannel Thermocouple Temperature
  • Measurement
  • Low Level Data Acquisition Systems
  • Industrial Measurement & Control Systems

    •
    1B51
    Isolated mV/Thermocouple Signal Conditioner

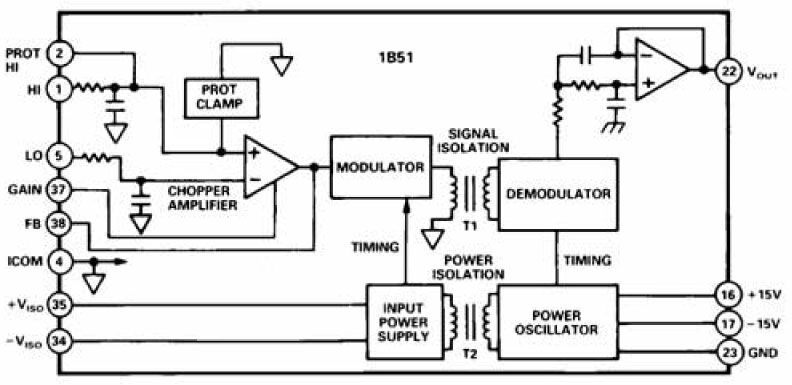

    1B51-fbl
