1B41
ObsoleteIsolated RTD Signal Conditioner
Overview
- Complete RTD Signal Conditioning Solution
- Resistor Programmable Linearization
- Lead Resistance Compensation
- High CMV Isolation: 1500 V rms Continuous
- Small package: 1.0"x2.1"x0.35" DIP
- Low pass filter (fc=3Hz)
- High Accuracy
Low Input Offset Tempco: 0.002µ/°C
Linearization Conformance: ±0.1%FSR
High CMR: 160dB (60 Hz,G=1000V/V) - Pin compatible with 1B51 Isolated mV/Thermocouple Conditioner

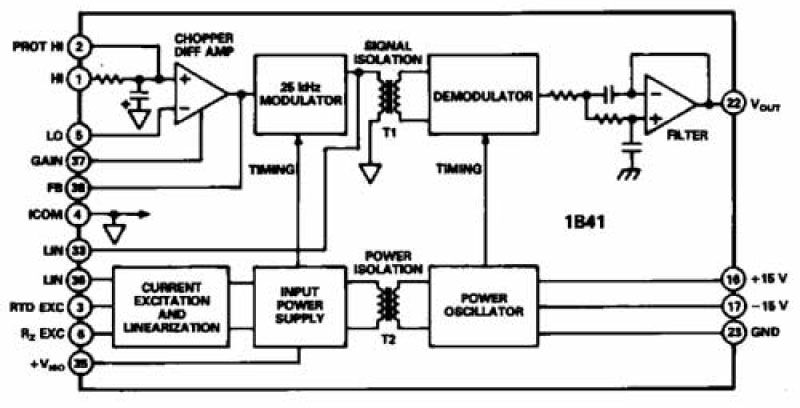

The 1B41 is a precision, isolated, RTD signal conditioner that incorporates a circuit design utilizing transformer based isolation and automated surface mount manufacturing technology. It provides an unbeatable combination of versatility and performance in a compact plastic package. Designed for measurement and control applications, it is especially suited for harsh environments with extremely high common mode interference. Unlike expensive solutions that require separate dc/dc converters, each 1B41 generates its own floating current excitation, providing true low cost channel-to channel isolation.
Applications
Documentation
This is the most up-to-date revision of the Data Sheet.
