ADI Commercial Aviation Solutions

Overview


adi-commercial-aviation-solutions-bannd_en

With its profound experience in optimizing system grade signal processing and diverse array of products, ADI is able to offer developers solutions designed exclusively for commercial aviation. ADI solutions include access to a series of related applications, such as aircraft navigation subsystems, communication subsystems, radar and monitoring subsystems, power and propulsion subsystems, and cabin entertainment subsystems.





ADI offers:
  • SDR-based communication solutions
  • Full signal chain radar solutions
  • High temperature and scalable products
  • High precision MEMS products
  • Audio/video products

Download


To Learn more about the comprehensive and flexible Analog Devices system solutions and main products,click here to get the complete solutions for free.

Free Download Now

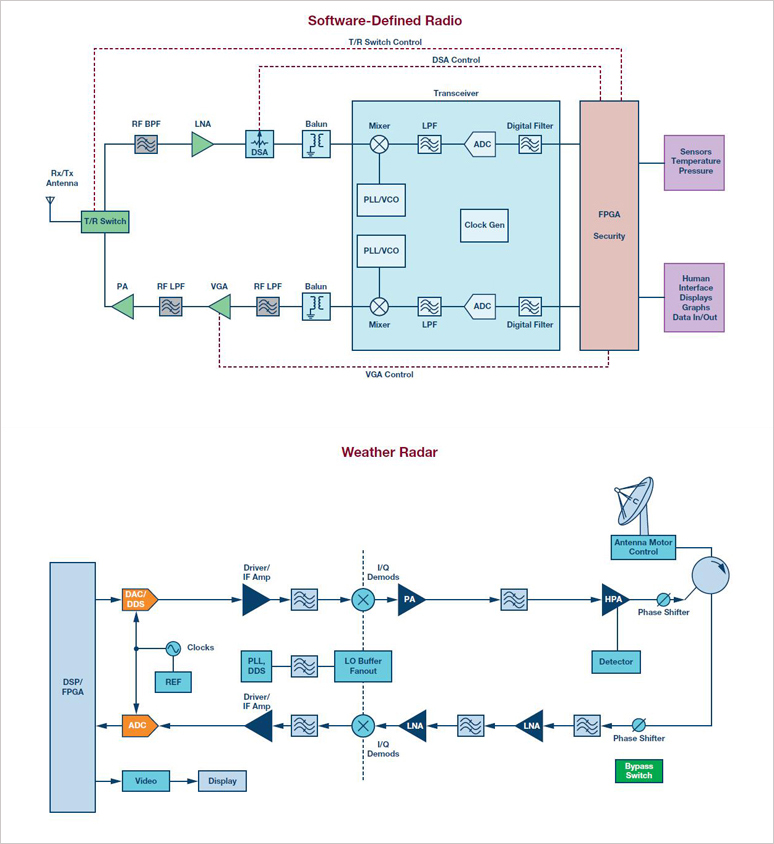

System Block Diagram


adi-commercial-aviation-solutions-pic_en

Other

Enhanced Products

At present, ADI has over 100 EP products in its catalog and over 600 with nickel-palladium-gold leadframes. ADI contiues to releasing new EP devices in support of the commercial aviation market. ADI will continue to convert legacy devices to EP where practival.

    •  Products available with temperature ratings of –55°C to +125°C.
    •  Lead finishes will be NiPdAu by default or with SnPb for some packages.
    •  Our EP devices will have separate data sheets.
    •  Controlled manufacturing baseline including one assembly site, one test site, and one fab site.
analog.com/media/en/news-marketing-collateral/solutions-bulletins-brochures/EnhancedProducts.pdf

Design Resources

Circuits from the Lab® Reference Circuits for Radar and SDR

    •  AD-FMCOMMS6-EBZ: A 400 MHz to 4.4 GHz receiver based on the AD9652 dual, 16-bit analog-to-digital converter, the ADL5566 high dynamic range RF/IF dual differential amplifier, and the ADL5380 quadrature demodulator. This is an I and Q demodulation approach to direct convert (also known as a homodyne or zero IF) receiver architecture — wiki.analog.com/resources/eval/user-guides/ ad-fmcomms6-ebz
    •  AD-FMCOMMS5-EBZ: An FMC board for the AD9361, a highly integrated RF Agile Transceiver™ , which demonstrates how to design a platform which shows how to connect and synchronize (at the RF side) multiple AD9361s for SIMO/MISO/SU-MIMO/MU-MIMO applications. For many broadband wireless access (BWA) systems, multi-input, multi-output (SIMO/MISO/SU-MIMO/MU-MIMO) operation and RF beamforming are proven techniques for maximizing throughput and efficient spectrum utilization — wiki.analog.com/resources/eval/ user-guides/ad-fmcomms5-ebz
    •  MEMS evaluation system — www.analog.com/en/eval-adis2
    •  AD-FMCDAQ2-EBZ evaluation board — www.analog.com/en/eval-ad-fmcdaq2-ebz
    •  More reference circuits are available at analog.com/circuits

Technical Articles/Application Notes


Design Tools/Forums

If you need more ADI radar applications and products information, please visit: analog.com/en/applications/markets/aerospace-and-defense/radar.html
