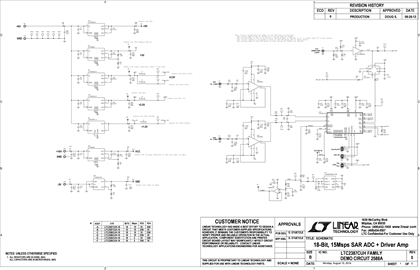

DC2588A - Schematic3/8/2017PDF195K
DC2588A-A
LTC2387-18 Demo Board | 18-Bit, 15Msps SAR ADC Using ADA4899-1 ADC Driver (Requires DC718)
Top
Overview
Product Details
Demonstration circuit 2588A features the LTC2387 family driven by a pair of ADA4899-1 driver amplifiers. With up to 15Msps, these differential input, single channel, 18-/16- Bit, serial, high speed successive approximation register (SAR) ADCs are available in a 32-Pin QFN package. The LTC2387 family has an internal 20ppm/°C reference and a serial LVDS interface. The demo manual refers to the LTC2387 but applies to all members of the family, the only difference being the sample rate and the number of bits.
