DC2520A-B

LTC2344-16 Demo Board | Quad, 16-Bit, 400ksps Differential ±5V Input SoftSpan ADC with Wide Input Common Mode Range (Requires DC590, DC2026, DC890)

Buy Now

Top

Overview

Product Details

Product Details

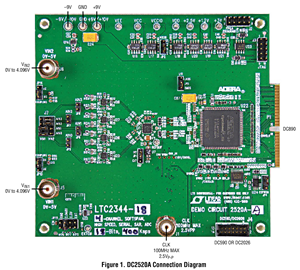

Demonstration circuit 2520A shows the proper way to drive the LTC2344 ADC. The LTC2344 is a low noise, high speed, simultaneous sampling 16-/18-bit successive approximation register (SAR) ADC. The LTC2344 has a flexible SoftSpan^™ interface that allows conversion-by-conversion control of the input voltage span on a per-channel basis. An internal 2.048V reference and 2× buffer simplify basic operation while an external reference can be used to increase the input range and the SNR of the ADC.
